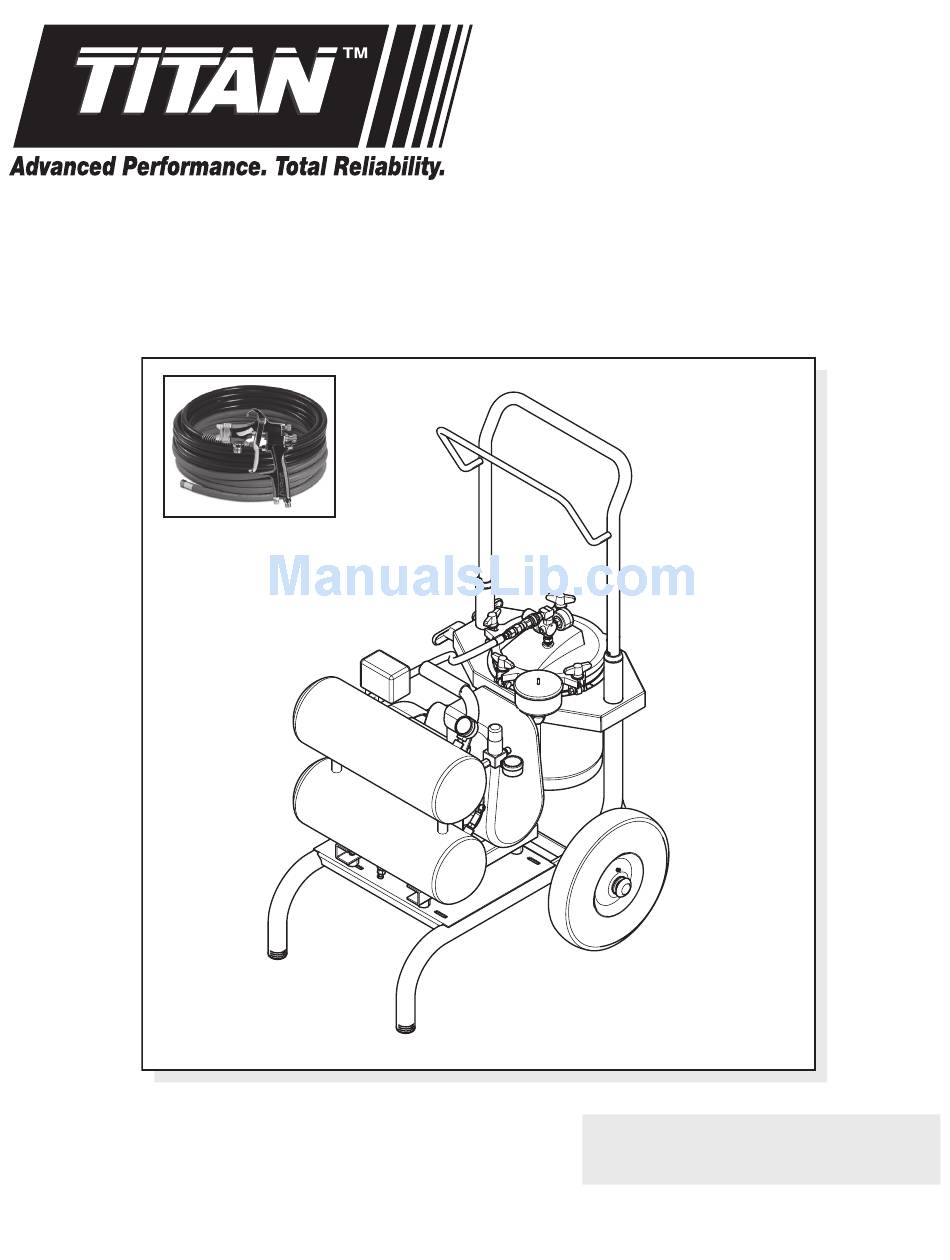

CAPSPrAy 125
HVLP Spray System
register your product online at:
www.titantool.com
Proper registration will serve as proof of purchase in the event your
original receipt becomes misplaced or lost.
_ _ _ _ _ _ _ _ _ _
Serial Number*
* See page 3 for location
Owner's Manual
Notice d'utilisation
Manual del Propietario
Do not use this equipment before
reading this manual!
Model
0524035
NOTE: This manual contains important
warnings and instructions. Please
read and retain for reference.
© Titan Tool Inc. All Rights Reserved. Form No. 0524860D
1211

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 524035 and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan 524035

  • Page 1 Proper registration will serve as proof of purchase in the event your original receipt becomes misplaced or lost. _ _ _ _ _ _ _ _ _ _ Serial Number* © Titan Tool Inc. All Rights Reserved. Form No. 0524860D 1211 • * See page 3 for location...
  • Page 2: Safety Precautions

    100 feet of extension cord is not • Never connect other air tools to the compressor. recommended. use more paint hose, not more extension cord. Shorter extension cords will assure maximum electrical power for proper operation. English © Titan Tool Inc. All rights reserved.
  • Page 3: Table Of Contents

    Safety valve Introduction The safety valve is designed to prevent pressure in the storage The Titan CAPSPRAY 125 HVLP spray system is designed tanks from exceeding 140 PSI. for use as a large capacity, fine finish spray painting tool. Components of the spray system include a compressor, a cart, Do not tamper with the safety valve.
  • Page 4: Setup

    Shutdown 1. Move the ON/OFF lever on the pressure switch to the OFF position. 2. Allow the compressor to cool. 3. Drain the storage tanks. English © Titan Tool Inc. All rights reserved.
  • Page 5: Spray Charts

    (for intermittent use) serious injury or death. *The pressure at the compressor air outlet when spraying gun. NOTE: A replacement filter pad is included with this unit. Additional filter pads (P/N 600-467) can be ordered through an authorized Titan service center. Regulator with optional moisture separator (P/N 0295742) A moisture separator is available for separate purchase. A 6 PSI...
  • Page 6: Français

    NOTa : une rallonge électrique de plus de 100 pieds n’est pas recommandée. utilisez un tuyau de peinture plus long et non une rallonge électrique. une rallonge électrique plus courte assurera une alimentation maximale pour un fonctionnement convenable. Français © Titan Tool Inc. Tous droits réservés.
  • Page 7: Spécifications

    Le système de pulvérisation à débit élevé et à basse pression Elle a été réglée en usine. Tout ajustement de cette Titan CAPSPRAY 125 est conçu pour être utilisé en tant qu’outil soupape pourrait causer de graves blessures. de peinture par pulvérisation à grande capacité pour un travail fini.
  • Page 8: Configuration

    Les ajustements de forme de jet et les choix de modèle de jet sont décrits dans votre guide de pistolet. Français © Titan Tool Inc. Tous droits réservés.
  • Page 9: Arrêt

    Pour réduire le risque de choc électrique, n’exposez pas l’unité à la pluie. Entreposez-la à l’intérieur. ImPORTaNT : au moment d’entreposer l’unité, utilisez l’emballage du cordon fourni pour protéger le cordon d’alimentation. © Titan Tool Inc. Tous droits réservés. Français...
  • Page 10: Español

    No se recomienda usar un cable de extensión de más de 30 metros (100 pies). Use una manguera de pintura más larga y no un cable de extensión más largo. Los cables de extensión más cortos garantizarán la máxima energía eléctrica para una operación adecuada. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 11 No haga presión con la válvula de seguridad. Posee un ajuste de fábrica. cualquier ajuste a esta El sistema CAPSPRAY 125 HVLP de Titan está diseñado para válvula puede provocar lesiones graves. usarse como una herramienta de pulverización de pintura de acabado fino y gran capacidad.
  • Page 12 En el manual de la pistola se describen las selecciones de la forma de la pulverización y los ajustes del patrón de la pulverización. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 13 Para disminuir el riesgo de descarga eléctrica, no lo exponga a la lluvia. almacene bajo techo. ImPORTaNTE: al almacenar la unidad use los ganchos para el cable que se proporcionan para proteger el cable de alimentación. © Titan Tool Inc. Todos los derechos reservados. Español...
  • Page 14: Parts List

    Parts List • Liste de pièces • Lista de piezas Main Assembly • Vue d’ensemble • Ensamblaje principal English Français Español © Titan Tool Inc. All rights reserved.
  • Page 15 Gun hose strap Sangle du tuyau du pistolet Correa de la manguera de la pistola 0550987 Spray gun model 3100 Modèle de pistolet de Pistola pulverizadora modelo pulvérisation 3100 3100 © Titan Tool Inc. All rights reserved. Español Français English...
  • Page 16 Relief valve Soupape de supression Aliviar la válvula Not pictured: / Sans image : / No está en la imagen: 0524141 Strain relief Réducteur de tension Protección contra los tirones English Français Español © Titan Tool Inc. All rights reserved.
  • Page 17 Trousse de vérin et de piston Kit de cilindro y pistón (incluye (includes item 1, 3 and 4) (comprend les articles 1, 3 et 4) los elementos 1, 3 y 4) © Titan Tool Inc. All rights reserved. Español Français English...
  • Page 18 0279437 Cord wrap Emballage de cordon Gancho para el cable 0293357 Screw Tornillo 0294534 Spacer Espaceur Espaciador 0507379 Wheel Roue Rueda 9890104 Hub cap Entretoise de roue Tapa de rueda English Français Español © Titan Tool Inc. All rights reserved.
  • Page 19: Garantie

    Lo que está cubierto por esta garantía: Este producto, fabricado por Titan, está garantizado por un (1) año a partir de la fecha de compra, contra los defectos de material y mano de obra que haya cuando se utilice de acuerdo con las recomendaciones e instrucciones impresas de Titan.
  • Page 20: Warranty

    Titan 30-Day Satisfaction Guarantee If, within a 30-day period from the date of purchase, you are not totally satisfied with a Titan CAPSpray unit, you may return it for full credit toward another Titan CAPSpray product of equal or greater value.

This manual is also suitable for:

Capspray 125

Table of Contents
