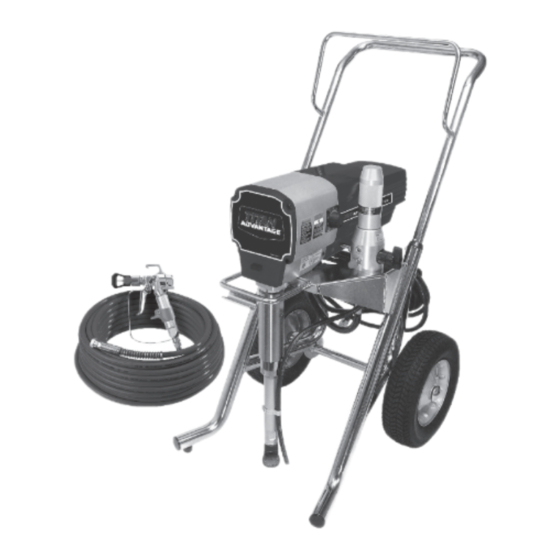

ADVANTAGE 1100
Electric Piston Pump
Register your product online at:
www.titantool.com
Proper registration will serve as proof of purchase in the event your
original receipt becomes misplaced or lost.
_ _ _ _ _ _ _ _ _ _
Serial Number*
* See page 3 for location
Owner's Manual
Do not use this equipment
before reading this manual!
Model
0552068
Model
0552069
NOTE: This manual contains important
warnings and instructions. Please
read and retain for reference.
© Titan Tool Inc. All Rights Reserved. Form No. 0552846D
1211
•

Advertisement

Table of Contents
loading

Related Manuals for Titan ADVANTAGE 1100

Summary of Contents for Titan ADVANTAGE 1100

  • Page 1 Proper registration will serve as proof of purchase in the event your original receipt becomes misplaced or lost. _ _ _ _ _ _ _ _ _ _ Serial Number* © Titan Tool Inc. All Rights Reserved. Form No. 0552846D * See page 3 for location 1211 •...

  • Page 2: Safety Precautions

    • Use lowest possible pressure to flush equipment. reconstructive hand surgeon may be advisable. • Do not spray onto pump assembly. © Titan Tool Inc. All rights reserved.

  • Page 3: Specifications

    Serial Number Location The serial number for your sprayer is shown on a label that is adhered to the underside of the main gearbox housing. © Titan Tool Inc. All rights reserved.

  • Page 4: Table Of Contents

    6. Turn off the sprayer by moving the pressure control knob in the Safety Precautions section at the front of this to the OFF position in the black zone. manual before operating this equipment. © Titan Tool Inc. All rights reserved.

  • Page 5: Painting

    © Titan Tool Inc. All rights reserved.

  • Page 6: Pressure Relief Procedure

    If the pressure is set too low, tailing will appear or the paint will spatter out in gobs rather Do not flex wrist while spraying. than in a fine spray. Paint tailing pattern © Titan Tool Inc. All rights reserved.

  • Page 7: Unclogging The Spray Tip

    (Bar) for recommendations. hose into the metal waste container. 4. If you have any further questions concerning your TITAN 8. Turn the unit off by moving the pressure control knob to Airless Sprayer, call TITAN: the OFF position in the black zone.

  • Page 8: Replacing The Prime/Spray Valve

    6. Slide the filter body over the Core filter and thread it into the filter Spring housing until secure. NOTE: The filter housing should O-ring be hand-tightened, but make sure the filter housing is seated fully Filter into the pump manifold. Housing © Titan Tool Inc. All rights reserved.

  • Page 9: Replacing The Motor Assembly (With Electronic Control)

    14. Reconnect the wires to the electronic control assembly electronic cover screws. (refer to the electrical schematic in the Parts List section of IMPORTaNT: use only Titan electronic cover screws to this manual). secure the electronic cover (see Drive assembly parts list).

  • Page 10: Replacing The Transducer

    19. Remove the adapter and lower packing assembly from the bottom of the cylinder. NOTE: Be careful not to scratch, score, or otherwise damage the cylinder during removal of the packings. © Titan Tool Inc. All rights reserved.
  • Page 11 (beveled edge cylinder is upright. will be facing up when the cylinder is upright). © Titan Tool Inc. All rights reserved.

  • Page 12: Troubleshooting

    Faulty or loose wiring. Inspect or take to a Titan authorized service center. Excessive motor temperature. Allow motor to cool. The unit will not prime.
  • Page 13 Notes © Titan Tool Inc. All rights reserved.
  • Page 14 Se servir de la pression la plus basse possible pour vidanger s’avérer nécessaire de consulter un plasticien ou un spécialiste l’appareil. en chirurgie reconstructive de la main. • Ne pas pulvériser de produit sur la pompe. Français © Titan Tool Inc. Tous droits réservés.
  • Page 15 électrique de la prise avant de travailler sur l’équipement. • N’utilisez pas le tuyau pour tirer ou soulever l’équipement. • Ne pas soulever par la poignée de chariot en chargeant ou en déchargeant. © Titan Tool Inc. Tous droits réservés. Français...
  • Page 16 Use la presión más baja posible para enjuagar el equipo. consultar con un cirujano plástico o un cirujano especialista en • No rocíe el ensamblaje de la bomba. reconstrucción de las manos. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 17 • No utilice la manguera como elemento de fuerza para tirar del equipo o levantarlo. • No levantar por la manija del carro al cargar o descargando. © Titan Tool Inc. Todos los derechos reservados. Español...

  • Page 18: Parts List

    PRIME/SPRAY valve assembly ....1 0552155A Fluid section assembly ......1 812-003 Outlet fitting ..........1 0507798 Siphon tube ..........1 0507671 Fitting ............1 730-334 Hose clamp ..........1 0507387 Hose (not shown) ........1 710-046 Inlet screen ..........1 © Titan Tool Inc. All rights reserved.

  • Page 19: Drive Assembly

    Grommet ...........1 0551972 Surge suppressor (not shown) ....1 800-934 Fuse holder..........1 704-400 Wire assembly (not shown) ......1 800-929 Fuse ............1 NOTE: all electrical work should be performed by a Titan authorized service center. © Titan Tool Inc. All rights reserved.

  • Page 20: Fluid Section Assembly

    Repacking kit (includes items 3, 5, 6, 8, 10, 11, 15, and 17–19) 0552150 Lower packing insertion tool Install lower packing so large beveled edge will be facing up when the cylinder is upright. © Titan Tool Inc. All rights reserved.

  • Page 21: Upright Cart Assembly

    Screw ............2 812-003 Outlet fitting ..........1 856-921 Screw ............4 800-907 Plug, 1/4” ..........1 856-002 Washer .............4 0507690 PRIME/SPRAY valve assembly ....1 0507774 Screw ............4 0507655 Cord wrap ..........2 0507379 Wheel ............2 9890104 Cap ............2 © Titan Tool Inc. All rights reserved.

  • Page 22: Suction Set Assembly (Low Boy)

    (includes items 1–3, 5, 9, and 10) ....1 0294534 Wheel spacer ..........4 590-508 Roll pin ............2 0278373 Wheel ............2 335-018 Plug ............2 9890104 Cap ............2 9805230 Screw ............1 0552191 Cart weldment ..........1 710-204 Plug ............2 © Titan Tool Inc. All rights reserved.

  • Page 23: Electrical Schematic

    NOTE: all electrical work should be performed by a Titan authorized service center. Transducer Ground to Wire Assembly Gear Housing 0507962 Potentiometer Assy ORANGE BLACK Electronic Control Assy GREEN Motor BLACK WHITE Relay WHITE WHITE Surge Suppressor BLACK/RED/WHITE © Titan Tool Inc. All rights reserved.

  • Page 24: Limited Warranty

    Warranty Titan Tool, Inc., (“Titan”) warrants that at the time of delivery to the original purchaser for use (“End User”), the equipment covered by this warranty is free from defects in material and workmanship. With the exception of any special, limited, or extended warranty published by Titan, Titan’s obligation under this warranty is limited to replacing or repairing without charge those parts which, to Titan’s...
