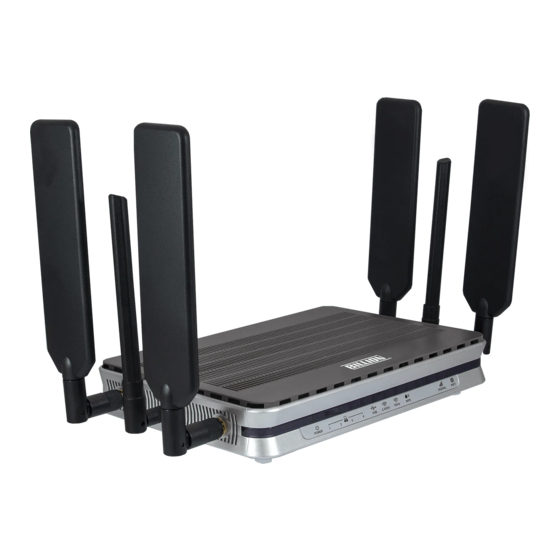

- Page 1 BEC AirConnect 8112 ® 5G Enterprise Router Quick Start Guide...
-
Page 2: Package Contents
BEC AirConnect® 8112 5G Enterprise Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE ONLINE USER MANUAL. - Page 3 BEC AirConnect® 8112 5G Enterprise Router Front Panel – LEDs / 5G NR / LTE Connectors STATUS DESCRIPTION Green System is up and ready Power Boot failure Green Transmission speed is at Gigabit speed (1000Mbps) Ethernet Port Orange Transmission speed is at 10/100Mbps LAN 1 - 4 Blinking Data being transmitted/received...
-
Page 4: Rear Panel - Ports / Connectors
BEC AirConnect® 8112 5G Enterprise Router Rear Panel – Ports / Connectors PORT MEANING Insert the mini-SIM card (2FF) with the gold contact facing down SIM Card Slot Push the mini-SIM card (2FF) inwards to eject it By controlling the pressing time, users can achieve two different effects: (1) WPS : Press &hold the button for less than 6 seconds to trigger... -
Page 5: Hardware Connection
BEC AirConnect® 8112 5G Enterprise Router Hardware Connection Back Panel Ports & Connectors Hardware Installation Power Connection Plug in the supplied power adapter to the wall jack and the other side to the device. Power ON the 8112 by pressing the Power On/Off button. 2. - Page 6 BEC AirConnect® 8112 5G Enterprise Router 3. WAN Link Interface and Connection BEC 8112 offers WAN failover and failback between multiple WAN interfaces. <Refer to the User Manual for detailed setup> 4. Vertical Stand Installation To set up your 8112 vertically, use the stand provided in the package and place it on a stable surface for proper operation.
- Page 7 BEC AirConnect® 8112 5G Enterprise Router 4.2 Ethernet WAN Connection Connect RJ-45 Ethernet cable to the EWAN port and connect the other side to another alternative broadband device, such as Cable Modem, VDSL, Fiber Modem or PON optic lines. 5. USB for Network File Sharing BEC 8112 has built-in FTP and Samba Servers, simply plug in an external USB HD then follow the instruction setup in the User Guide.
- Page 8 BEC AirConnect® 8112 5G Enterprise Router Quick Setup Your Router Wired Broadband Connection - Before start configuring the 8112, make sure you have the Ethernet WAN connected with your Internet box or fiber line. The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1 ~ 192.168.1.253.
- Page 9 BEC AirConnect® 8112 5G Enterprise Router Step 4: Setup Wireless Connection Access Point: select Activated SSID: Assign a unique name Channel: pick from 1~11 Security Type: select a mode Disable (No security) WPA2 (Most secure one) WPA / WPA2 (auto detect WPA mode with wireless clients) WEP (Less secure one) Pre-Shared Key: key for wireless authentication...
-
Page 10: Troubleshooting
BEC AirConnect® 8112 5G Enterprise Router Troubleshooting 1. None of the LEDs are on when you turn on the router. Check the connection between the adapter and the router. If the error persists, you may have a hardware problem. In this case you should contact technical support. 2.
