  • Page 1 BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router Quick Start Guide...
  • Page 3: Package Contents

    Avoid using this product and all accessories outdoors. Place the router on a stable surface. Only use the power adapter that comes with the package. Using a different voltage rating power adaptor may damage the router. Attention Billion BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router...
  • Page 4: Hardware Overview

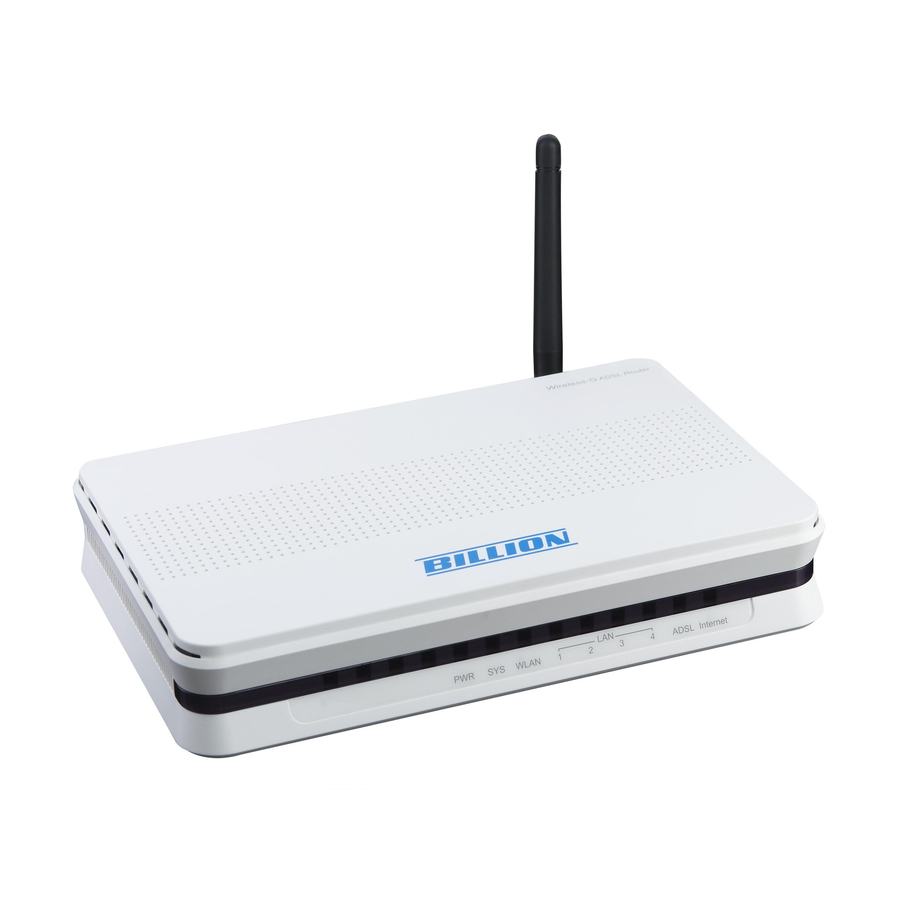

    Quick Start Guide Hardware Overview BiPAC 7300G RA The Front LEDs Lit when power is ON. Lit when the system is ready. The Rear Ports Connect the fixed antenna. Connect the supplied RJ-11 cable to this port when connecting to the ADSL/telephone network.
  • Page 5 Press it to reset the device or restore to factory default settings. Billion BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router Lit when connected to an Ethernet device. Green for 100Mbps; Orange for 10Mbps. Blinking when data is Transmitted/Received.
  • Page 6 Quick Start Guide Hardware Connection BiPAC 7300G RA BiPAC 7300 RA...
  • Page 7 PC’s Ethernet interface. 3. ADSL Connection Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the other side to the phone jack on the wall. Billion BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router...
  • Page 8 Quick Start Guide 4. Splitter/ Micro-filter Connection Splitter / Micro-filter are important for ADSL installation. High-frequency signals are directed to the ADSL modem, and low-frequency signals are directed to the telephone or other analog voice-channel device to prevent inter-modulation distortion and also to get good speed and stable ADSL sync rate. a) Splitter connection If the installation has only a single telephone and a single ADSL modem, then a splitter can be employed.
  • Page 9: Easy Sign On

    Most problems can be solved by referring to the Troubleshooting section in the User’s Manual. If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer where you purchased this product. Contact Billion WORLDWIDE: http://www.billion.com Billion BiPAC 7300(G) RA (802.11g) ADSL2+ Firewall Router 7300(G) RA:V1.01EN...
