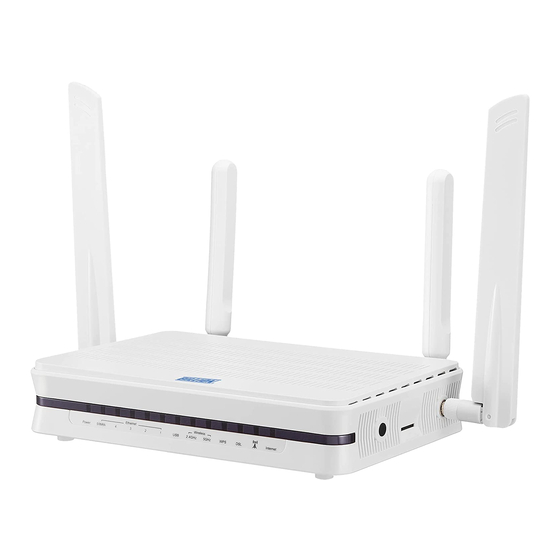

BiPAC 8206AZ 4G/LTE V/ADSL2+ Wireless-AC VPN Router

Front Panel LEDs

LED
Status
Green
System ready
Power
Off
System off
Green
Ethernet Link Up
Ethernet
Green Blinking
Ethernet Link Up and traffic
1~5/WAN
Off
Ethernet Link Down
On
USB device connected
USB
Off
USB device not connected
Green
WiFi is ready for using
Green Blinking
Data being transmitted/received
Wireless
Rapid Green
2.4G/5GHz
There is STAs association connection and traffic
Blinking
Off
WiFi is disabled
Green Blinking
Running WPS Configuration
WPS
Off
WPS Stop
Green
xDSL Showtime Phase
DSL
Green Blinking
xDSL Discovery/Training/Exchange Phase
Off
No xDSL line connected
LTE
Green
4G/LTE Service is Up
Off
4G/LTE Service is off or failure
Device has a public IP via either static/ DHCP/ or
Green
IPCP
Rapid Green
Internet
IP connected and traffic passing
Blinking
IP or PPPoE session is idle and dropped, or DSL not
Off
connected
2
www.billion.com
Meaning
BiPAC 8206AZ 4G/LTE V/ADSL2+ Wireless-AC VPN Router

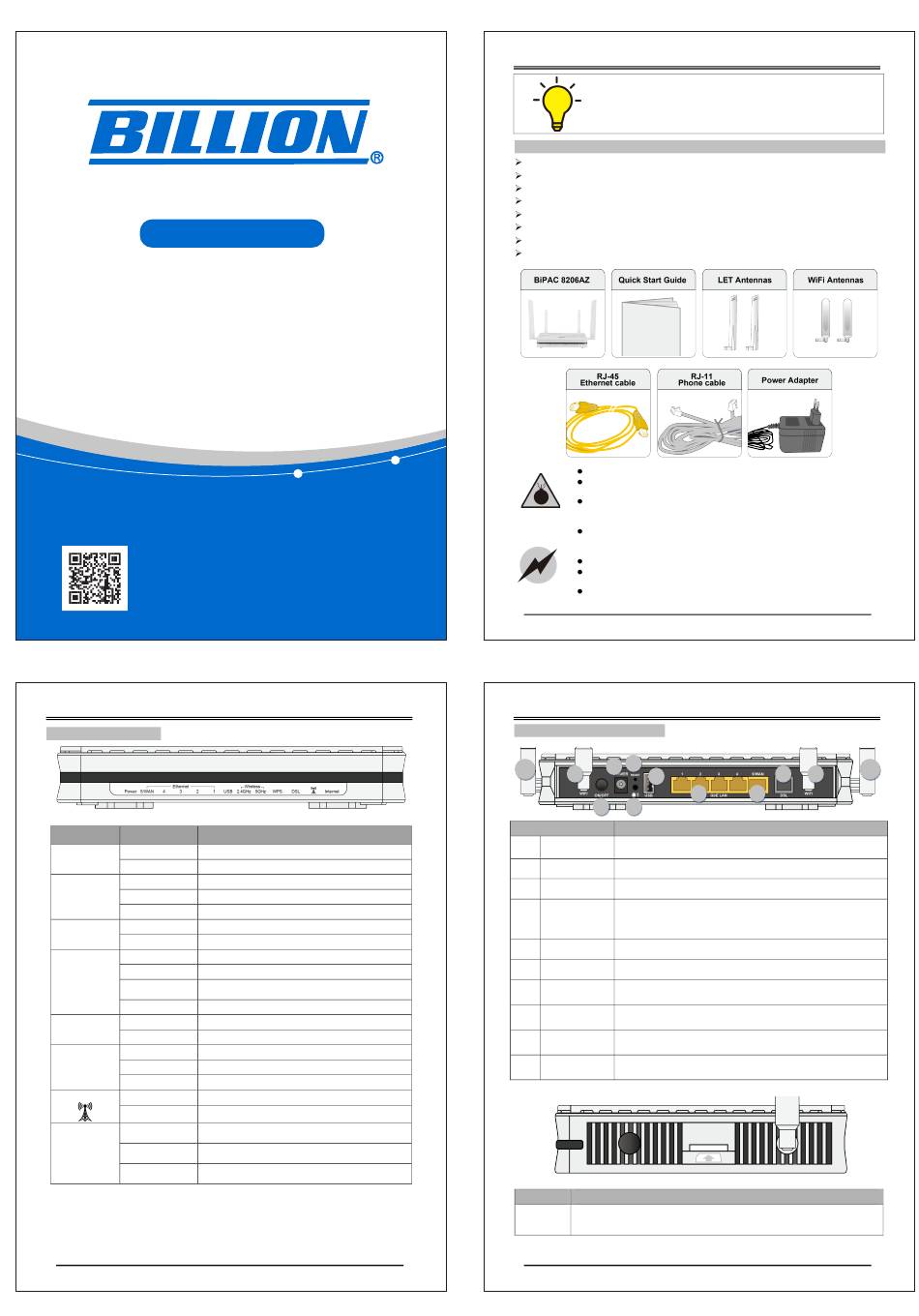

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS
CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE
DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE
INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER
TO THE ON-LINE MANUAL.

Package Contents

BiPAC 8206AZ 4G/LTE V/ADSL2+ Wireless-AC VPN Router
This Quick Start Guide
Two fixed Wi-Fi Antennas
Two detachable LTE Antennas
RJ-45 STP Ethernet Cable
RJ-11 xDSL/ telephone Cable
Power adaptor
Splitter/ Micro-filter (Optional)
Do not use the router in high humidity or high temperatures.
Do not use the same power source for the router as other
equipment.
Do not open or repair the case yourself. If the router is too hot, turn
off the power immediately and have it repaired at a qualified service
Warning
center.
Avoid using this product and all other accessories outdoors.
Place the router on a stable surface.
Only use the power adapter that comes with the package. Using a
different voltage rating power adaptor may damage the router.
This equipment should be installed and operated with minimum
Attention
distance 20cm away from your body.
1
BiPAC 8206AZ 4G/LTE V/ADSL2+ Wireless-AC VPN Router

Rear Panel Connectors

3
2
10
9
5
1
4
Port
1
ON/OFF
Power ON/OFF switch
2
POWER
Connect the supplied Power Adapter to this port
Press and hold it for 5 seconds or above to restore to factory default
3
RESET
settings.
1) Press and Press & hold the button for several second to trigger
WPS & Wireless
WPS function.
4
2) Press and release quickly to enable or disable the 2.4GHz and
On/Off
5GHz Wi-Fi function.
Connect the USB device (USB storage, 3G/4G LTE USB modem) to
5
USB
the port.
Connect a Ethernet cable to one of the LAN ports when connecting to
6
LAN1~5
a PC or an office/home network.
Connect to Fibre/ Cable/ xDSL Modem with a RJ-45 cable, for
7
WAN
broadband connectivity
8
DSL
Connect to the xDSL/ telephone network with RJ-11 cable(telephone)
9
WiFi Antennas
Fixed antennas
10
LTE Antennas
Screw the supplied antennas onto the antenna connectors
Port
Insert the SIM card(2FF) with the mental contacts(gold plate) facing down to the
SIM
SIM slot then push it all the way in until you hear the clicking sound.
3
10
8
9
6
7
Meaning
Meaning
