Summary of Contents for Powerplus POWDPG6010

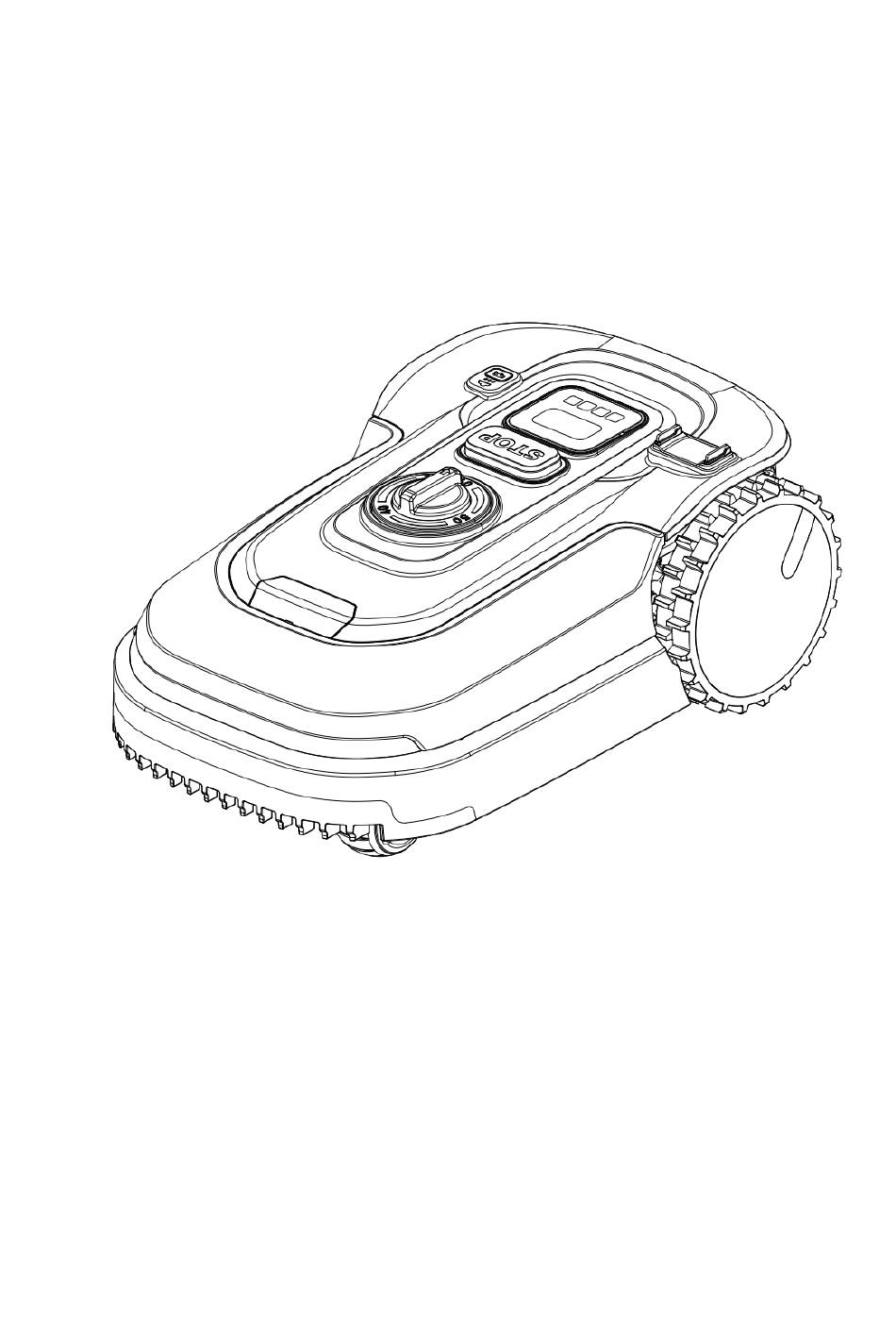

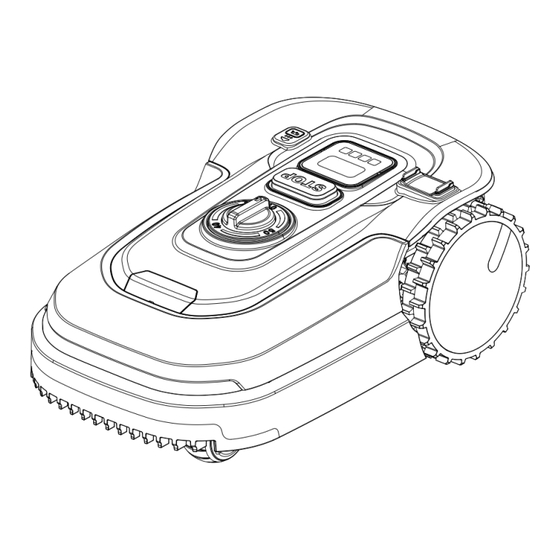

- Page 1 POWDPG6010 Robotic Lawnmower Operator ’ s Manual READ CAREFULLY BEFOR USE KEEP FOR FUTURE REFERENCE...
- Page 2 Where can you find the APP? -by scanning QR Code in the manual - by scanning the QR Code on the robotic lawnmower -by using the following link: https://www.powerplustips.com/ -by searching in 1. Open the APP by clicking the icon in mobile phone APP Icon Startup page After pressing the “APP icon”...
- Page 3 Press “Agree” button to go to the login registration page.
- Page 4 2. Two ways to login in APP Using email as an account to enter， user data can be used in any mobile phone Without an account, connected via Bluetooth, user data can be entered and the APP can only be used on the current mobile phone.
- Page 5 2.1 Using an account to enter Users need to sign up at first. Press “Create an Account” to go to the registration page Enter the received verification code by email account to finish the sign up. Make sure your mobile connects to the Internet and your Email can receive the verification code. Remember your password for the further login.
- Page 6 2.1.1 Sign in the application with your Email and password or use the Email verification code Click “Me” to check details of your account If you have forgotten the password, you can reset it after registering the mower on the “Personal Information”...
- Page 7 Click on “Send”, you will receive an email with a verification code that you must enter, you have 120 seconds to do so.
- Page 8 2.2 Anonymous login Without an account to log in, the application will give the right to temporary user a random card to use it. In the Anonymous login it is possible only to control the robotic mower via Bluetooth in a range of 6 meter around the robotic mower with a limited numbers of function in the APP.
- Page 9 How to add robotic lawnmower in APP ? Click “ ” to start adding robotic mower ”or“ Make sure the mower is turned on and the Bluetooth is turned on in the phone. The App automatically searches for the robotic lawnmower, the max distance between the mower and cell phone is 6m.
- Page 10 If you have more than one robotic lawnmower nearby, you will see the mower list after searching. Choose the one you want to add and then in the PIN verification page, enter the PIN and add mower. You can later select the mower in the start-up screen by swiping left or right. Note: If you have previously added a mower and then removed it, after the automatic search, the mower will immediately appear on the screen and you only have to enter the PIN code.
- Page 11 If you have only one robotic mower，you will be taken to pin code verification page directly after robotic mower is searched out，input the pin code of the robotic mower, go to verification page （ If you select a serial number in the list and click “ Add now ” button, you will also be taken to pin code input page ）...
- Page 13 Rename/Remove/Share mower Rename Remove Share Click “ ” to delete the robotic mower, click “ ” to rename the robotic mower, click “ ”to Share the robotic mower, click” ” to connect to the robotic mower. This function can be helpful. The customer can actively share their robotic lawnmower, e.g. with a neighbour who takes care of it while the owner is on holiday.
- Page 14 How to connect to the robotic lawnmower Click“ ” on mower list page or Click“ ”on mower info page , connect to the robotic mower via Bluetooth or Wi-Fi...
- Page 15 How to control the robotic lawnmower Return to last page Mower’s name Battery status Bluetooth/WiFi connection Mower icon and working state Fault alerts “Manual” means mower was Calendar settings manually started，If it was started by calendar，here will display the progress，such as Mower settings 30%，because the total working time per day was set in...
- Page 16 Working Returning to charge station Error message 1. Click “START” to run the mower 2. When the mower is working, click “HOME” to stop working and return to charge station 3. When the mower is working, click “STOP” to stop working 4.
- Page 17 If the device is connected via Wi-Fi, the setup screen is displayed as follows ： Mower will work in the rain when rain sensor is turned off Users can set the mower for multiple work zones Firmware versions Child lock setting Password reset...
- Page 18 If the mower is connected via Bluetooth, add the Wi-Fi settings or reset the mower settings. The setting screen is displayed as follows: Set up mowers for spot cutting work Set up the network for the device Reset all settings of the lawn mower...
-
Page 19: Calendar Settings
Calendar settings: 1、Create a new calendar, first give it a name， 2、Click“Next”to enter the edit screen, click on the "Monday" area to edit and add Monday's mowing time, and so on, long press on the added time to delete it. 3、Click “Save”... - Page 20 4、“Non-mowing time ”means the time when the mower is not allowed to work，set in the same way as the mowing time 5、 24 hours working mode enabled, calendar will be unavailable until 24 hours work mode being closed. 6、If there is no calendar , put the mower in charging station, and start the mower manually, the mower will create a new automatically schedule that take manual start time as schedule start time and the task window last for 8 hours, if there is a automatically schedule created before, the new schedule will overwrite the old one...
- Page 21 Fig.2 Instellen van Multi-Zones: To set the Multi-zone schedule: The Multi-zone schedules of the robotic lawnmower are programmable, a percentage of the mowing time can be set per zone. Example Fig.1 where two mowing zones are set, a starting point is set for each zone (by pressing the Flag button the mower will record the starting point of the zone, max.
- Page 22 Example: Suppose the robotic lawnmower is set to mow seven times per week (one mow per day). One mowing = 100%. If you allocate 30% to zone 1, 30% to zone 2 and 40% to zone 3, your robotic lawnmower will perform 2 mowing sessions in zone 1 and 2 in zone 2 and 3 in zone 3 over the course of a week.
-
Page 23: Troubleshooting
What if the lawn consists of two or more separate mowing zones? The boundary wire must always be connected to the charging station. If the lawn consists of two (or more) parts, they must be separated by an area inaccessible to the robotic lawnmower, but still connected to the same boundary wire. - Page 24 Error Error code Message in APP How to solve ①Press Start and OK buttons in 5 seconds to reset when everything is Emergency E001 STOP！ ②Press "Reset" button in APP when everything is OK. Stop the mower, check the front wheel of mower, put the mower in flat area.
- Page 25 Grass or other object is wrapped around the drive wheels. Please turn off the mower, and clean the drive wheels and around the Left drive wheels. wheel E006 ①Press Start and OK buttons in 5 blocked！ seconds to reset when everything is ②Press "Reset"...
- Page 26 Please turn off the mower,and check if right wheel turns free. Right drive motor E011 Please turn on the mower, if the error abnormal! persist, please contact with after sales. Please turn off the mower,and check if blade holder turns free. Mowing motor E012 abnormal...
- Page 27 Please restart the mower, if the error persist, please contact with after sales. Battery not under E016 protection! Please restart the mower, if the error persist, please contact with after sales. LED display E017 not found! Please restart the mower, if the error persist, please contact with after sales.
- Page 28 It's Raining,mower will recover the work after rain disappearing Raining E101 Recharge will recover once the Unable to batterytemperature is going down to charge for 45℃ E102 high temperature Work will recover once the batterytemperature is going down to Unable to 45℃...
