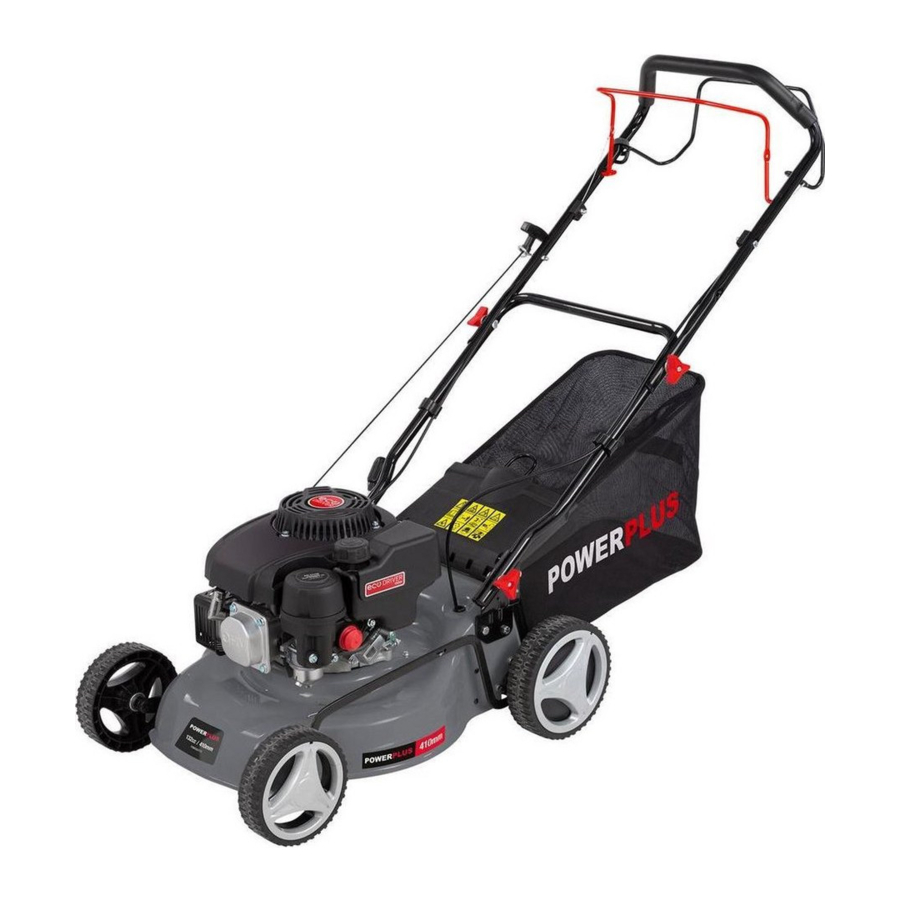

    POWEG63773 LAWNMOWER: GASOLINE OPERATED 132 CC 410 MM POWEG63773 INTENDED USE The purpose of this lawn mower is to cut grass. This lawn mower has been designed for cutting grass areas in a domestic garden. Not suitable for professional use.
  • Page 4: Symbols

    POWEG63773 SYMBOLS In this manual and/or on the machine the following symbols are used: In accordance with Denotes risk of essential applicable safety personal injury or standards of European damage to the tool. directives. Do not touch a hot silencer or cylinder.
  • Page 5 POWEG63773 Poisonous fumes or toxic gases- Keep hands and feet away. Asphyxiation Petrol is flammable. Attention – petrol is highly Allow engine to cool for flammable! Explosion at least 2 minutes hazard! Do not spill fuel! before refuelling. Mandatory use of eye Wear gloves.
  • Page 6: General Safety Rules

    POWEG63773 Warning: Keep the safety signs clear and visible on the equipment. Replace the safety signs if they are missing or illegible. GENERAL SAFETY RULES WARNING: When using petrol tools, basic safety precautions, including the following, should always be followed to reduce the risk of serious personal injury and/or damage to the unit.
  • Page 7: Maintenance And Storage

    POWEG63773 ▪ Be careful when working with the lawn mower on slopes and nearby rubbish dumps, ditches or embankments. ▪ Mow only in daylight or in good artificial light. ▪ Avoid operating the equipment in wet grass, where feasible. ▪...
  • Page 8: Safety Warnings

    POWEG63773 ▪ To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease. ▪ Check the grass catcher frequently for wear or deterioration. ▪ Replace worn or damaged parts for safety.
  • Page 9: Assembly

    POWEG63773 ASSEMBLY Assembling the handle (Fig.1, 2 & 3)) ▪ Fasten the lower handle to the device by using two bolts and two knobs on each side. ▪ Unfold the upper handle and fix it to lower handle by using the knobs and the bolts on each side.
  • Page 10: Add Gasoline (Fig. 8)

    POWEG63773 9.1.2 Add gasoline (Fig. 8) WARNING: never fill fuel tank indoors, with engine running or until the engine has been allowed to cool for at least 15 minutes after running. WARNING: Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flame or sparks in the area where the engine is refuelled or where petrol is stored.
  • Page 11: Self-Propelling Function (Fig. 13)

    POWEG63773 Self-propelling function (Fig. 13) ▪ Self-propelling is controlled by holding the brake lever up to the handle and pushing the drive control lever forward until it clicks. ▪ Forward motion will stop when drive lever is released. To stop forward motion without stopping engine, release the drive lever slightly until the drive control disengages.
  • Page 12: Functions

    POWEG63773 ▪ The pores in the cloth grass catcher can become blocked with dirt and dust and will collect less grass. To prevent this, regularly hose down the grass catcher and let dry before re using. ▪ Keep the top of the engine (around the starter) clear and clean of grass clippings and chaff.
  • Page 13: Changing / Draining The Oil

    POWEG63773 Complicated operations – not listed here below – must be carried out by a specialized technical assistance centre. The replacement of the cutting device should be done by a qualified specialist! Rework or sharpening blades is not recommended unless it is done by a repair service or a similarly qualified specialist! ▪...
  • Page 14: Cleaning The Mower Housing

    POWEG63773 11.5 Cleaning the mower housing Dirt deposits make the start difficult; affect the quality of the cut and the discharge of the grass. Dirt and grass residues are easiest to remove immediately after the mowing. To avoid fouling the floor, the underside must be cleaned on the grass.
  • Page 15: Technical Data

    TECHNICAL DATA Model POWEG63773 Cylinder capacity 132 cc Engine power 2.5 kW Engine type PowerPlus 4-stroke (eco driver) Rotation speed 2800 min Cutting width 410 mm Collect box / bag 45 l Cutting height 25-75 mm Number of height positions...
  • Page 16: Noise And Vibration

    POWEG63773 NOISE AND VIBRATION Noise emission values measured according to relevant standard. (K=3) Acoustic pressure level LpA 80 dB(A) Acoustic power level LwA 96 dB(A) ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A). aw (Vibration) 8,1 m/s²...
  • Page 17: Warranty

    We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90.
  • Page 18: Declaration Of Conformity

    VARO – Vic. Van Rompuy N.V. – Joseph Van Instraat 9 – 2500 Lier – Belgium, declares that, product Lawnmower: Gasoline operated 132 cc 410 mm trade mark PowerPlus model POWEG63773 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
