Page 1: Table Of Contents
POWDPG7568 APPLICATION .................. 3 DESCRIPTION (FIG. A) ..............3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......5 Work area ........................ 5 Electrical safety ....................... 5 Personal safety ....................... 5 Power tool use and care ..................6 Service ........................ - Page 2 POWDPG7568 10.5 Emptying the grass catcher ................. 12 10.6 End of the operation ..................... 12 CLEANING AND MAINTENANCE ..........12 11.1 Cleaning......................... 12 11.2 Blade maintenance ....................12 11.3 Replacing the blade ....................12 TECHNICAL DATA ................ 13 TROUBLESHOOTING ..............14 WARRANTY ...................
-
Page 3: Application

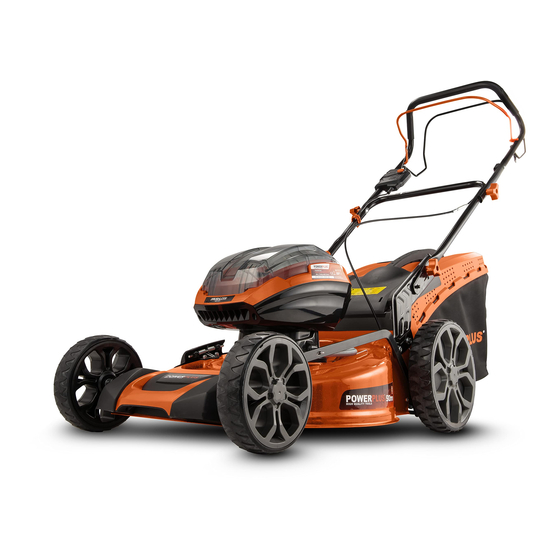

POWDPG7568 LAWN MOWER 40V 510MM POWDPG7568 1 APPLICATION The purpose of this lawn mower is to cut grass. This lawn mower has been designed for cutting grass areas in a domestic garden. It is not designed for commercial use. Not suitable for professional use. -
Page 4: Symbols
POWDPG7568 4 SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the Read manual before use. tool. Keep bystanders away. Warning! Flying objects! Switch off and remove isolator key before adjusting,... -
Page 5: General Power Tool Safety Warnings
POWDPG7568 Do not touch a hot silencer or cylinder. You may get burned. These parts get extremely hot from operation. When turned off they remain hot for a short time. 5 GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. -
Page 6: Power Tool Use And Care
POWDPG7568 ▪ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ▪ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. - Page 7 POWDPG7568 ▪ Replace worn or damaged parts for safety. Use only original spare parts and accessories. ▪ The machine should be operated with a tripping current not exceeding 30 mA via a residual current device (RCD). ▪ Never allow children or people unfamiliar with these instructions to use the lawnmower.
-
Page 8: Additional Safety Instructions For Batteries And Chargers
POWDPG7568 ▪ Replace worn or damaged parts for safety. 7 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS Use only batteries and chargers applicable for this machine. Batteries ▪ Never attempt to open for any reason. ▪ Do not store in locations where the temperature may exceed 40 °C. -
Page 9: Inserting The Battery In The Machine (Fig. 1)
POWDPG7568 ▪ Solid green and red: battery or charger damaged. Note: if the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger. -
Page 10: Battery Capacity Indicator (Fig. A )
POWDPG7568 Battery capacity indicator (Fig. A ) There are battery capacity indicators (22) on the battery pack, you can check the capacity status of the battery if you squeeze the button (23). Before using the machine, please press switch trigger to check if the battery is full enough for properly working. -
Page 11: Operation
POWDPG7568 10 OPERATION 10.1 Starting/stopping the mower ▪ Insert the battery or batteries in the machine. (Fig. 1) ▪ Insert the key (7) inside the machine. You will hear a “click” noise when the key is inserted correctly. (Fig. 11) ▪... - Page 12 POWDPG7568 10.5 Emptying the grass catcher You need to empty the grass catcher (10) when the indicator cap is closed. To empty the grass catcher: ▪ Release the switch handle (2). ▪ Lift up the rear cover. ▪ Remove the grass catcher (10) by the handle.
- Page 13 POWDPG7568 12 TECHNICAL DATA Type POWDPG7568 Voltage 40 V Cutting width 510 mm Collect box 70 l Cutting height 30-80 mm Material housing Steel Grass box material Nylon with plastic top cover Number of height positions Engine type Brushless Diameter front wheel...
- Page 14 We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90.
- Page 15 POWDPG7568 ▪ At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload. ▪ Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g.
