INTENDED USE ............................................................................... 3
2
OVERVIEW COMPONENTS (FIG. A + FIG. 6) ............................... 3
3
PACKAGE CONTENT LIST ............................................................. 3
4
SYMBOLS ........................................................................................ 4
5
GENERAL SAFETY RULES ............................................................ 6
5.1
Training.................................................................................................................... 6
5.2
Preparation .............................................................................................................. 6
5.3
Operation ................................................................................................................. 7
5.4
Maintenance and storage ....................................................................................... 8
6
SAFETY WARNINGS ....................................................................... 8
7
SAFETY WARNINGS GASOLINE ................................................... 8
8
ASSEMBLY ...................................................................................... 9
8.1
Folding handle (Fig. 1) ............................................................................................ 9
8.2
Starter handle (Fig. 2) ............................................................................................. 9
9
OPERATION ..................................................................................... 9
9.1
Before starting ........................................................................................................ 9
9.1.1
Add oil ....................................................................................................................... 9
9.1.2
Add gasoline (Fig. 3) ............................................................................................... 10
9.2
Starting the engine ................................................................................................ 10
9.3
Stop engine ........................................................................................................... 10
9.4
Self-propelling function ........................................................................................ 10
9.5
Height adjustment instructions ............................................................................ 11
9.6
Rear cover position / grass expelling .................................................................. 11
9.7
Gras box warning system (Fig. 4) ........................................................................ 11
9.8
Mowing tips ........................................................................................................... 11
10
10.1
What is mulching .................................................................................................. 11
10.2
Different uses ........................................................................................................ 12
10.2.1
Retrofitting for mulching mower (Fig. 5) .............................................................. 12
10.2.2
Resetting for side-discharge mowing (Fig. 6) ...................................................... 12
10.2.3
Mowing with the grass catch bag ........................................................................ 12
Copyright © 2021 VARO
POWXG60240
P a g e
| 1
EN
www.varo.com
Advertisement
Table of Contents
Related Manuals for Powerplus POWXG60240
Summary of Contents for Powerplus POWXG60240
-
Page 1: Table Of Contents
All manuals and user guides at all-guides.com POWXG60240 INTENDED USE ................3 OVERVIEW COMPONENTS (FIG. A + FIG. 6) ....... 3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL SAFETY RULES ............6 Training........................6 Preparation ......................6 Operation ......................... 7 Maintenance and storage .................. - Page 2 All manuals and user guides at all-guides.com POWXG60240 10.2.4 Operating without a grass collecting box ............13 10.2.5 Edge cutting (Fig. 7) ................... 13 MAINTENANCE ................13 11.1 Changing / draining the oil ................... 14 11.2 Draining the fuel tank (Fig. 8) ................14 11.3...
-
Page 3: Intended Use

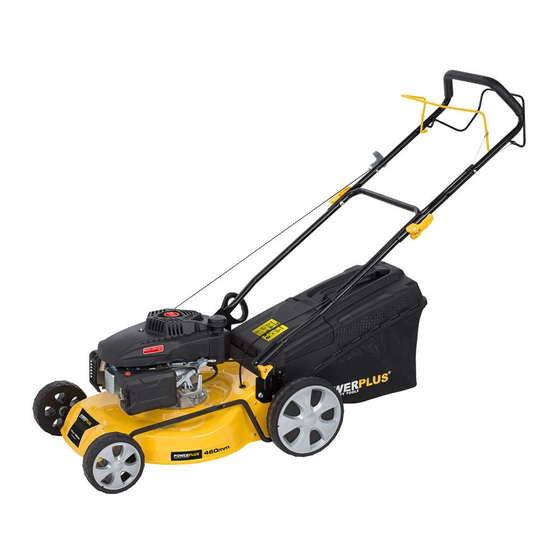

All manuals and user guides at all-guides.com POWXG60240 LAWNMOWER: GASOLINE OPERATED 141 CC 460 MM POWXG60240 INTENDED USE The purpose of this lawn mower is to cut grass. This lawn mower has been designed for cutting grass areas in a domestic garden. Not suitable for professional use. -
Page 4: Symbols
All manuals and user guides at all-guides.com POWXG60240 SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of In accordance with essential personal injury or applicable safety standards damage to the tool. of European directives. - Page 5 All manuals and user guides at all-guides.com POWXG60240 Poisonous fumes or toxic gases- Keep hands and feet away. Asphyxiation Petrol is flammable. Attention – petrol is highly Allow engine to cool for flammable! Explosion hazard! at least 2 minutes before Do not spill fuel! refuelling.
-
Page 6: General Safety Rules
All manuals and user guides at all-guides.com POWXG60240 Warning: Keep the safety signs clear and visible on the equipment. Replace the safety signs if they are missing or illegible. GENERAL SAFETY RULES WARNING: When using petrol tools, basic safety precautions, including the following, should always be followed to reduce the risk of serious personal injury and/or damage to the unit. -
Page 7: Operation
All manuals and user guides at all-guides.com POWXG60240 Operation ▪ Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect. ▪ Warning! Do not use the lawnmower when there is a risk for lighting. -
Page 8: Maintenance And Storage
All manuals and user guides at all-guides.com POWXG60240 Maintenance and storage ▪ Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. ▪ Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark. -
Page 9: Assembly
All manuals and user guides at all-guides.com POWXG60240 ASSEMBLY Folding handle (Fig. 1) ▪ Attach the lower part of the handle section to the body of the machine, using the nuts and bolts. ▪ The nuts must always point to the outside of the machine. -
Page 10: Add Gasoline (Fig. 3)
All manuals and user guides at all-guides.com POWXG60240 9.1.2 Add gasoline (Fig. 3) WARNING: never fill fuel tank indoors, with engine running or until the engine has been allowed to cool for at least 15 minutes after running. ▪ Fill fuel tank to base of tank filler neck. Use fresh, clean, regular unleaded gasoline. -
Page 11: Height Adjustment Instructions
All manuals and user guides at all-guides.com POWXG60240 Height adjustment instructions Caution: before changing mowing height, stop mower and disconnect spark plug cable. Your mower is equipped with a central height adjustment lever offering 7 height positions. ▪ Stop mower and disconnect spark plug cable before changing mower cutting height. -
Page 12: Different Uses
All manuals and user guides at all-guides.com POWXG60240 10.2 Different uses 10.2.1 Retrofitting for mulching mower (Fig. 5) WARNING: only with a stopped motor and standstill cutter. Raise the rear cover and remove the grass catch bag. Push the mulching wedge into the deck. Lock the mulching wedge with the button into the opening on the deck. -
Page 13: 10.2.4 Operating Without A Grass Collecting Box
All manuals and user guides at all-guides.com POWXG60240 Regularly clean the sideward flap and discharge opening form grass rest and stuck dirt. Mount the grass catch bag: ▪ To fit: raise the rear cover and hitch the grass catch bag on rear of mower. -
Page 14: Changing / Draining The Oil
All manuals and user guides at all-guides.com POWXG60240 11.1 Changing / draining the oil The oil drain plug is located under the dipstick, at the base of the engine. Have a container ready to catch the oil and remove the drain plug. -
Page 15: Maintenance Schedule
TECHNICAL DATA Model POWXG60240 Cylinder capacity 141 cc Engine power 2.5 kW Engine type PowerPlus 4-stroke (eco driver) Rotation speed 2800 min Cutting width 460 mm Collect box / bag 55 l Cutting height 25-75 mm Number of height positions... -
Page 16: Noise And Vibration
All manuals and user guides at all-guides.com POWXG60240 NOISE AND VIBRATION Noise emission values measured according to relevant standard. (K=3) Acoustic pressure level LpA 83 dB(A) Acoustic power level LwA 96 dB(A) ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A). -
Page 17: Warranty
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorised customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90. -
Page 18: Declaration Of Conformity
VARO – Vic. Van Rompuy N.V. – Joseph Van Instraat 9 – 2500 Lier – Belgium, declares that, product Lawnmower: Gasoline operated 141 cc 460 mm trade mark PowerPlus model POWXG60240 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
