jablotron JA-102KY Installation Manual

JA-102KY, JA-102KRY control panels of the
Control panel type:CU2202MDGSM
Caution:
1. The JABLOTRON Mercury alarm system is only intended to be installed by a trained technician with a valid certificate issued by an authorized
Jablotron distributor.
2. JABLOTRON Mercury control panels are configured using the MyCOMPANY mobile application. The credentials are given to the Jablotron
Installation Partner upon successful completion of the certification training.
3. JABLOTRON Mercury control panels are equipped with integrated connectivity via a specific SIM card - do not remove or replace the SIM card.
LAN communication is only used as a backup.
4. The JABLOTRON Mercury Alarm requires a regular monthly payment for JDS (Jablotron Digital Service) service. The payment method depends
on the country where the system is installed. If the service is not paid for, full system functionality will be restricted. The system will remain fully
operational (locally), but the ability to control it via MyJABLOTRON and configure it via MyCOMPANY will be suspended. The user will be informed
of this impending restriction in advance by email to the address provided when registering the system.
5. The overview of supported devices, see Appendix no.1.
1. The control panel basic description
1.1. Description of the variants JA-102KY, JA-102KRY
JA-102KY: control panel for Bus installations
JA-102KRY: control panel is equipped with radio module and can be used with both Bus devices and Wireless devices

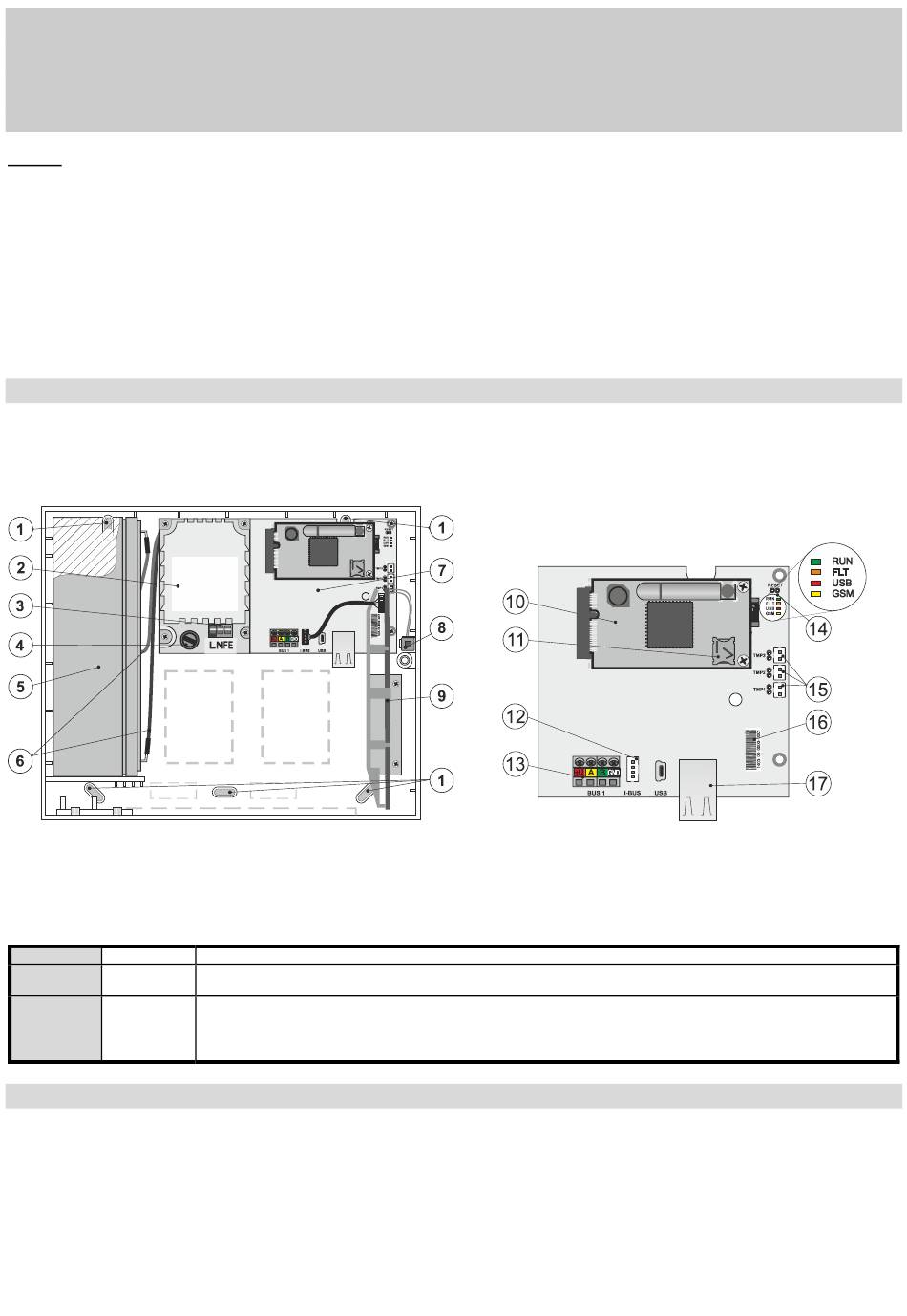

1 – holes for mounting the box on the wall, 2 – power supply module, 3 – mains
power supply terminal, 4 – fuse; 5 – backup battery, 6 – backup battery cables,
7 – control panel mainboard, 8 – tamper contact of the box, 9 – the JA-111R radio
module (inside of the JA-102KRY control panel),
1.2. LED indicators on the control panel mainboard (14)
RUN Green
FAULT Yellow
GSM
Red
2. Before system installation
1. First, consider how to secure the object, the arrangement of individual devices and the number of sections, and how to control the system.
2. Mind the fact that when you select Bus devices, their total current consumption should not exceed 110 mA (to ensure the system will be backed up for
the 12 hrs as the norm requires). The consumption of each device is given in Appendix no. 1: Overview of supported devices for the alarm JABLOTRON
Mercury.
3. Wireless devices must be installed in such a way that their radio communication is not shielded or interfered with. During installation, always check the
signal quality of individual devices directly in MyCOMPANY app.
4. Select a hidden place for the control panel (inside the protected area) where mains power is available and there must also be a good GSM signal
reception (LTE).
5. The requirements of the relevant standards must be respected during the design and installation of the alarm.
The JA-102KY, JA-102KRY control panels of the JABLOTRON Mercury alarm system
JABLOTRON Mercury alarm system
Installation manual
communicator type: GSM2202MD
Rapid flashing during operation of the communication Bus (data transferring).
Permanent lit of yellow LED indicates general fault in the system (more detailed info in the application or on the
keypad with LCD display).
If the GSM Communicator is installed:
− lits permanently after the power is connected => logging into the GSM network (max. 1 min),
off if the GSM is OK and no communication takes place,
−
flashing in 1 s intervals, if no GSM network is available.
−
*Radio module model: JA-111R
10 – GSM communicator, 11 – the SIM card holder with inserted SIM card,
12 – Bus connector for internal connection of the JA-111R radio module, 13 – Bus
output terminal for connection of Bus devices, 14 – LED indicators with RESET
jumper, 15 – control panel box tamper contacts connectors, 16 – serial number for
the registration via MyCOMPANY application, 17 – LAN connector (internet)
1 / 8
*Valid for the JA-102KRY only
