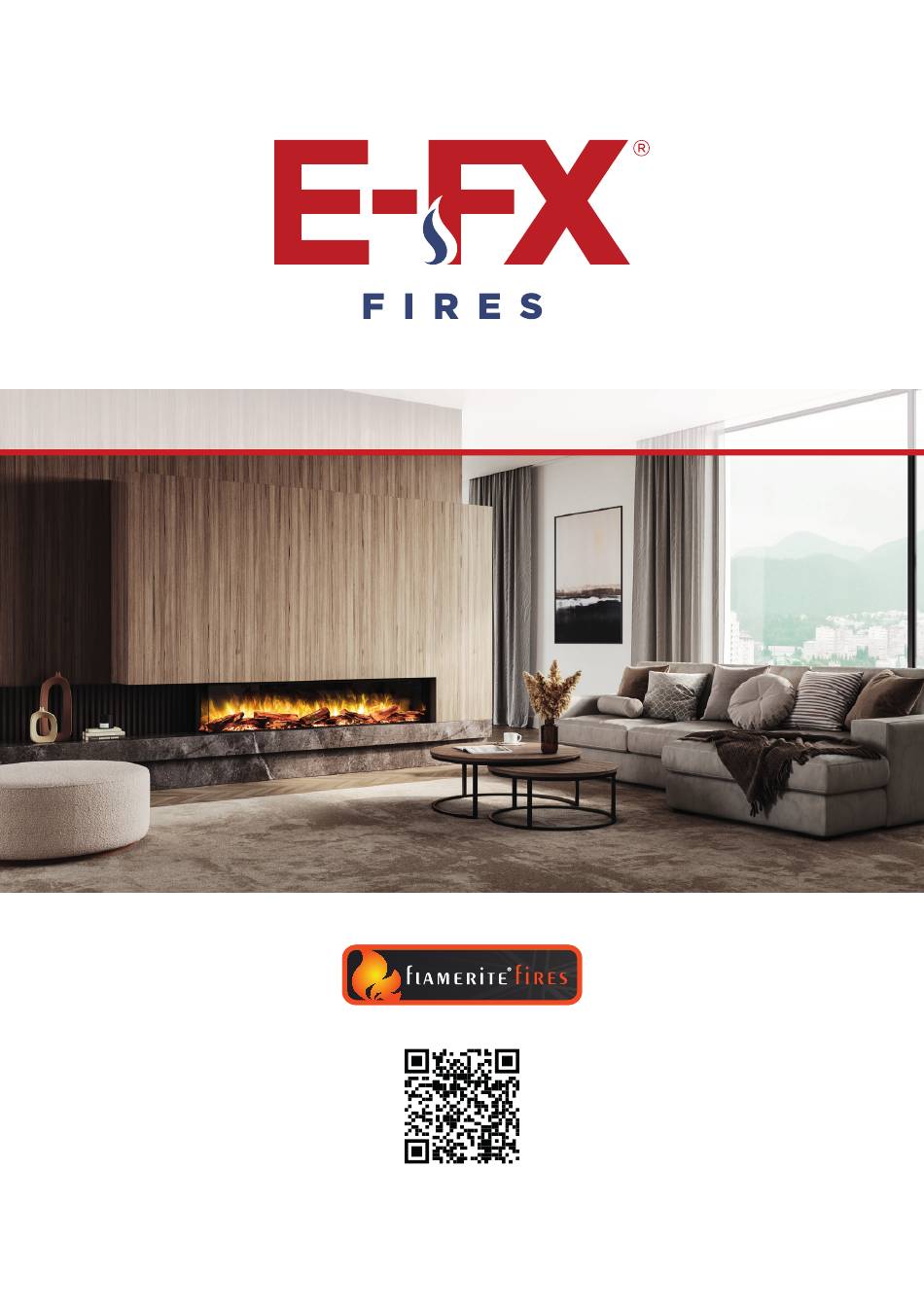

- Page 1 I N S T A L L A T I O N , P R E C A U T I O N S & S E R V I C I N G A P R I L 2 0 2 4...
-
Page 2: Table Of Contents
IMPORTANT CONTENTS • • Please bear in mind the weight of the The accessories are found in a box Important Instructions ..............................4 fi re before removing from the packaging that is packed at the side of the fi re. UKCA & CE Declarations .............................7 and installation. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS IMPORTANT INSTRUCTIONS • • Cleaning and user maintenance shall NOT Extreme caution is necessary when any be made by children without supervision. heater is used by or near children or invalids and whenever the heater is left • Children of less than 3 years should be operating and unattended. -
Page 4: Ukca & Ce Declarations
IMPORTANT INSTRUCTIONS UKCA & CE DECLARATIONS TRADE NAME RATINGS PRODUCT TYPE MANUFACTURED BY Flamerite Fires LTD. Greenhough Road, Electric Fire (fan heater) E-FX 220-240 Vac, 50Hz Class I Lichfi eld. Staff s. WS13 7AU. (5120 BTU) United Kingdom. CAUTION REQUIREMENTS:... -
Page 5: Etl Declarations
ETL DECLARATIONS TECHNICAL SPECIFICATIONS TRADE NAME RATINGS PRODUCT TYPE MANUFACTURED BY Flamerite Fires LTD. Greenhough Road, Electric Fire (fan heater) E-FX 120 Vac, 60Hz Class I Lichfi eld. Staff s. WS13 7AU. (5120 BTU) United Kingdom. REQUIREMENTS: UL 2021 & CAN/CSA E60335-2-30... -
Page 6: Required Tools
REQUIRED TOOLS WHAT’S IN THE BOX... BLANKING E-FX FIRE LOG SET PLATES HAMMER & HEX KEY SCREWDRIVER ACCESSORY & HARD- FRONT GLASS DECORATIVE RAILS WIRE PACK DRILL & TAPE MEASURE DRILL BITS REMOTE & INSTRUCTIONS POWER LEAD BATTERIES PENCIL SPIRIT LEVEL GLASS HANDLE FIXING PACK E L E C T R I C F I R E S M A D E I N E U R O P E... -
Page 7: Before You Start
BEFORE YOU START... BLANKING PLATE INSTALLATION PLUG SOCKETS SIDE PANEL INSTALLATION All fi res must have an accessible plug. Do not fi t a fi re above a socket. Building regulations require the socket to be located at the side of the unit. It is preferable to fi t the fi re to a 120 VOLT or If you have purchased a 1 or 2 sided E-FX Fire, you will need to install the blanking plates 240 VOLT switched grounded outlet for safety. - Page 8 BLANKING PLATE INSTALLATION FLAT WALL INSTALLATION FITTING YOUR E-FX FIRE ONTO A WALL OR INTO A STRUCTURE... If purchased as a fi re only or as a standard wall mount suite, the height at which you may wish to fi x the fi re in, or on the wall, is up to you. Be sure to take account of local building regulations, and if not sure, always consult a professional.
-
Page 9: Flat Wall Installation
FLAT WALL INSTALLATION FLAT WALL INSTALLATION BOTTOM RAIL FIXING HEIGHT TABLE TOP RAIL FIXING TABLE SUITE WITH FIXING 1000 - 40” 1300 - 52” 1500 - 59” 1800 - 70” PRODUCT FLOATING SUITE SUITE WITH PLINTH CONTEMPORARY LEGS 60mm / 2 3/8” Wall Screws E-FX 1000 - 40”... - Page 10 FLAT WALL INSTALLATION FLAT WALL INSTALLATION Next, using help if required lift the fi re onto the bottom bracket and push fi rmly against both When using the power lead check the underside of the fi re for a clip. This is provided to secure brackets.
-
Page 11: Hard-Wire Installation
HARD-WIRE INSTALLATION HARD-WIRE INSTALLATION Fit the switched grounded outlet socket leaving enough power cable to get to the fi re, leaving WARNING! plenty of wire to trim back. Before any wiring work is undertaken, make sure the power for the socket has been turned off at the fuse box and check that the power is off... - Page 12 HARD-WIRE INSTALLATION HARD-WIRE INSTALLATION Disconnect the current power bracket found Trim the fi re power cables by removing the terminals and leave 13mm / 1/2” of cable exposed to on the right inside the fi re. Remove the connect the electrical supply. The Neutral gray cable is a twin cable. terminals from the power inlet and unscrew the bracket from the fi...
- Page 13 HARD-WIRE INSTALLATION HARD-WIRE INSTALLATION Now the main cables are connected connect the fi re by inserting the trimmed cables into the Before reinstalling the fuel bed, remove the cable clip from the hard-wire bracket and use it to corresponding connector. The neutral is a double cable and both should go into the same side of secure the electrical cable in place making sure that nothing can be disconnected if the cable the connector (pictured below).
-
Page 14: Rear Screen Options
REAR SCREEN OPTIONS REAR SCREEN OPTION E-FX FIRES Remove the rear glass leaving the projection screen in place. As standard one of the two rear screens in the E-FX fi re has a refl ective coating to mirror You can then reconnect the fuel bed the log eff... - Page 15 FRONT GLASS INSTALLATION FRONT GLASS INSTALLATION Remove the decorative rail from the top front lip of the fi re; it is held on with using magnets - this You will notice a long gap on the underside of the opening in front of the heater grills. Make sure You will notice a long gap on the underside of the opening in front of the heater grills.
-
Page 16: Front Glass Installation
FRONT GLASS INSTALLATION INFORMATIONAL REQUIREMENTS E-FX Fit the glass handle by using a hex key to adjust the screw before fi tting and then slide the handle E-FX: INFORMATIONAL REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS onto the glass. Check it is aligned with the cut-out on the trim and fi tted securely. MODEL 1000 - 40”... -
Page 17: Maintenance
MAINTENANCE TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Electrical lead not plugged in Check lead in plugged in securely and p-clipped in place WARNING! NO POWER TO FIRE Circuit board Replacement part required Before any wiring work is undertaken, make sure the power for the socket has been turned off... -
Page 18: Wiring Diagram
TROUBLE SHOOTING WIRING DIAGRAM PROBLEM CAUSE SOLUTION Turn fi re off & on using the rocker switch next to keypad Lost connection to fi re and re-pair the remote. See App instructions. REMOTE CONTROL NON RESPONSIVE Batteries Replace with 2 x AAA Debris from fuel bed Remove debris in channel... -
Page 19: Parts List
PARTS LIST EXPLODED DIAGRAM E-FX PART 1500 1800 PART NAME 1000 (40”) 1300 (52”) NUMBER (59”) (70”) Top Hanging Bracket Bottom Hanging Bracket Power Lead E90-2 E90-2 E90-2 E90-2 Spindle Motor Spindle Trip Switch PCB Board Glass Handle Front Deco Rail Side Deco Rail Front Glass LED Driver... -
Page 20: Cleaning & Maintenance
CLEANING & MAINTENANCE NOTES • To clean your fi re make sure the power is off at the circuit breaker and the heater is cool before cleaning. • Wipe with a clean dry cloth that is free from lint and dust. Do not use cleaning chemicals or abrasives. - Page 21 These products are only suitable for well insulated spaces or occasional use. Manufactured in the United Kingdom. All products are protected by patents, registered design and intellectual property rights. Flamerite Fires Ltd. will protect these rights. All specifi cations are correct at the time of publishing but are subject to change.
