motortronics VMX-PFE Series Installation Instructions

™

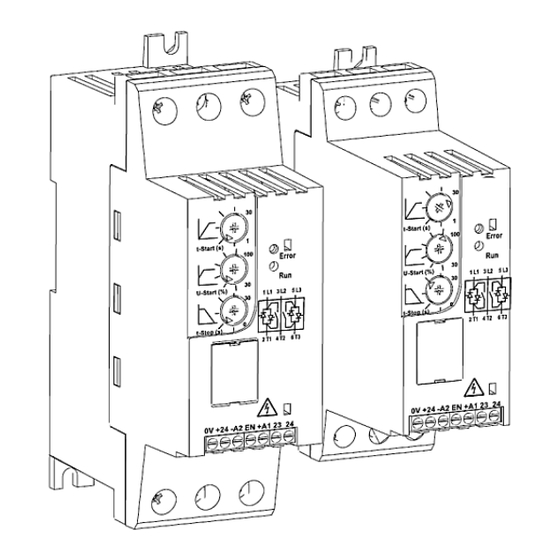

VMX-PFE Soft Starter Installation Instructions.
installation instructions, scan the QR Code to the right or visit motortronics.com
(Mobile device friendly).
Montageanweisung, Notice d'installation, Istruzioni per il montaggio, Instrucciones de montaje
Mounting Centers 1.18" (30mm) x 5.2" (130mm)
This device is suitable for use in industrial
environments. EN 55011/22 Class A
Das Gerät ist für den industriellen Einsatz
geeignet EN 55011/22 Klasse A.
L'appareil a été conçu pour l'emploi en
milieu industriel EN 55011/22 classe A.
L'apparecchio è adatto per uso in ambienti
industriali EN 55011/22 Classe A.
El aparato es adecuado para uso en
ambiente industrial EN 55011/22 clase A
To download
Mounting Centers 1.57" (40mm) x 6.10" (155mm)
Size 1: 5 Amp to 16 Amp
VMX-PFE-02 2.2kW @ 400V 5Amp
VMX-PFE-04 3kW @ 400V 7Amp
VMX-PFE-06 4kW @ 400V 9Amp
VMX-PFE-08 5.5kW @ 400V 12Amp
VMX-PFE-10 7.5kW @ 400V 16Amp
Size 2: 22 Amp to 41 Amp
VMX-PFE-12 11kW @ 400V 22Amp
VMX-PFE-14 15kW @ 400V 30Amp
VMX-PFE-16 18.5kW@ 400V 36Amp
VMX-PFE-18 22kW @ 400V 41 Amp (Non UL)
VMX-PFE-18 30HP @460V FLA 40A (UL)
