Erbauer EMCS12-Li Original Instructions Manual

Hide thumbs

Advertisement

Table of Contents

EAN: 5059340010724
EMCS12-Li

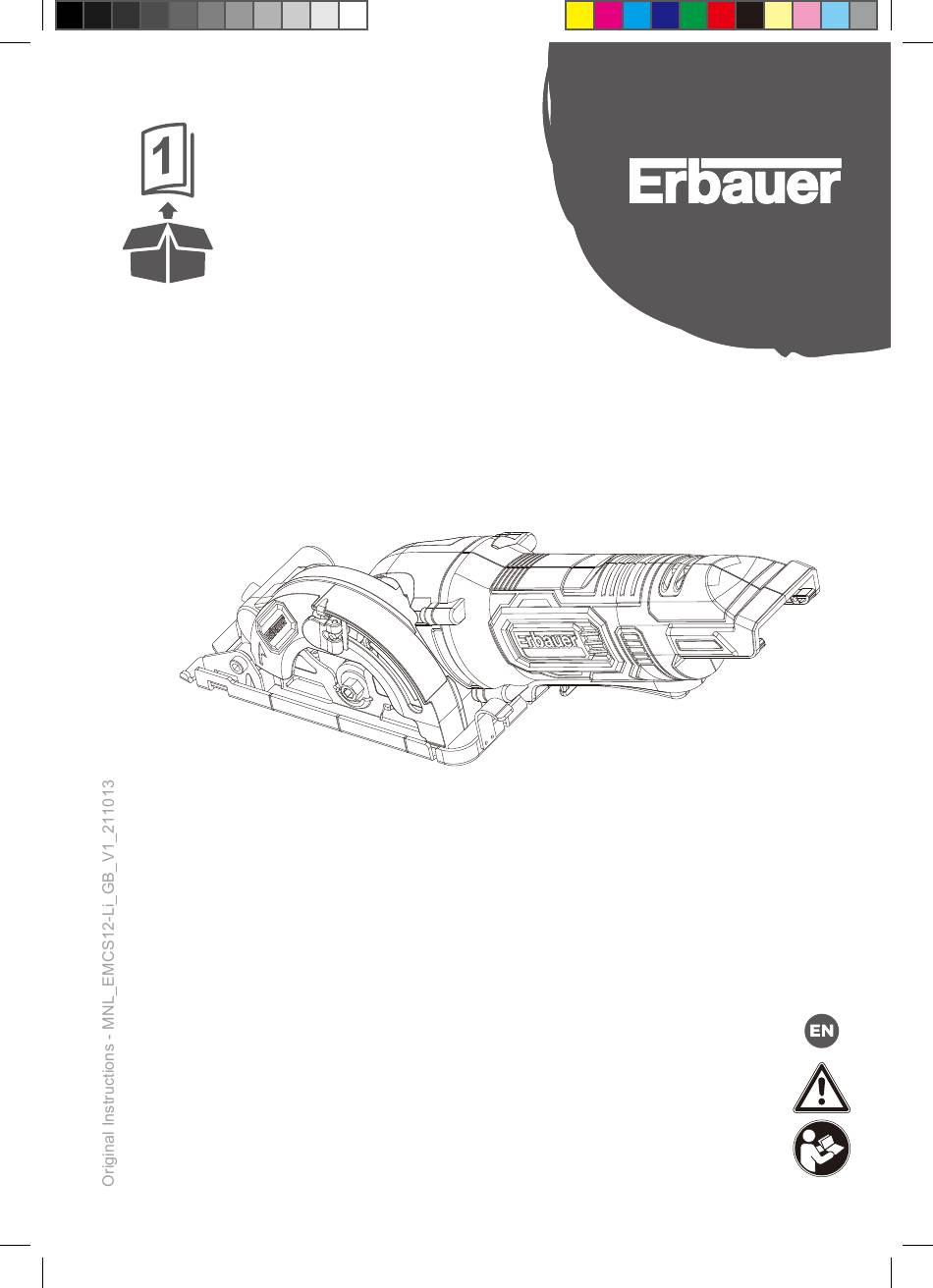

ORIGINAL INSTRUCTIONS
V60421 / BX220IM
MNL_Erbauer_GB_12V Mini Circular Saw_V6_210422.indd 1
4/22/21 6:26 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMCS12-Li and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erbauer EMCS12-Li

Summary of Contents for Erbauer EMCS12-Li

  • Page 1 EAN: 5059340010724 EMCS12-Li ORIGINAL INSTRUCTIONS V60421 / BX220IM MNL_Erbauer_GB_12V Mini Circular Saw_V6_210422.indd 1 4/22/21 6:26 PM...

  • Page 2: Table Of Contents

    Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity MNL_Erbauer_GB_12V Mini Circular Saw_V6_210422.indd 2 4/22/21 6:26 PM...
  • Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. MNL_Erbauer_GB_12V Mini Circular Saw_V6_210422.indd 3 4/22/21 6:26 PM...
  • Page 4 Product description MNL_Erbauer_GB_12V Mini Circular Saw_V6_210422.indd 4 4/22/21 6:27 PM...
  • Page 5 76-100% 51-75% 26-50% 5-25% <5% MNL_Erbauer_GB_12V Mini Circular Saw_V6_210422.indd 5 4/22/21 6:27 PM...
  • Page 6 5 cm MNL_Erbauer_GB_12V Mini Circular Saw_V6_210422.indd 6 4/22/21 6:27 PM...

  • Page 7: Safety Instructions

    Safety instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 8 c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
  • Page 9 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
  • Page 10 e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Page 11 e) Do not use battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature.
  • Page 12 d) Never hold the workpiece in your hands or across your leg while cutting. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control. e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring.
  • Page 13 a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
  • Page 14 Safety instructions for plunge type saw - Guard function a) Check the guard for proper closing before each use. Do not operate the saw if the guard does not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is exposed. If the saw is accidentally dropped, the guard may be bent.
  • Page 15 c) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. d) Wheels must be used only for recommended applications.
  • Page 16 Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations.
  • Page 17 Further safety instructions for abrasive cutting-off operations Kickback and related warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging causes rapid stalling of the rotating wheel which in turn causes the uncontrolled power tool to be forced in the direction opposite of the wheel’s rotation at the point of the binding.
  • Page 18 e) Do not attach a saw chain, woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control. f) Do not “jam” the wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut.
  • Page 19 ADDITIONAL SAFETY RULES FOR YOUR CIRCULAR 1. Use only saw blades recommended by the manufacturer, which conform to EN 847-1, if intended for wood and analogous materials. 2. Do not use any abrasive wheels. 3. Use only blade diameter(s) in accordance with the markings.
  • Page 20 k) Only use the recommended saw blades. Only use the supplied TCT saw blade for cutting of wood, never for metal. m) Only use the supplied HSS saw blade for cutting thin sheet metal or Aluminium. n) Only use the supplied diamond saw blade for cutting of tile or plaster board.
  • Page 21 k) Do not place the battery in direct sunlight, or use or store the battery inside cars in hot weather. If you intend to store a battery for a period without use then store battery at room temperature (19°C to 25°C), charged to about 30 –...
  • Page 22 Silica is a natural mineral present in large amounts in things like sand, sandstone and granite. It is also commonly found in many construction materials such as concrete and mortar. The silica is broken into very fine dust (also known as Respirable Crystalline Silica or RCS) during many common tasks such as cutting, drilling and grinding.
  • Page 23 For more information please see the HSE website: http://www. hse.gov. uk/construction or http://www.hse.gov.uk/pubns/ cis69.pdf WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
  • Page 24 The declared vibration emission value should be used as a minimum level and should be used with the current guidance on vibration. Calculating the actual period of use can be difficult and the HSE website has further information. The declared vibration total value has been measured in accordance with EN 62841-1, EN 62841-2-5, EN 60745-2-22 and may be used for compare one tool with another.
  • Page 25 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 26 b) Ensure that the product is in good condition and well maintained. c) Use correct attachments for the product and ensure they are in good condition. d) Keep tight grip on the handles/grip surface. e) Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).

  • Page 27: Product Description

    a) Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained. b) Injuries and damage to property due to broken attachments or the sudden impact of hidden objects during use. c) Danger of injury and property damage caused by flying objects or poor power tool accessories.
  • Page 28 Technical specifications Mini circular saw > Rated voltage : 12 V d.c. > No load speed : 2300 /min > Rated speed : 2400 /min > Blade size : 85 mm > Disc bore : 15 mm > Max cutting capacity : 27 mm >...
  • Page 29 WARNING! The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed; and need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 30 The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. Rating label explanation EMCS12-Li = Model number E = Erbauer MCS = Mini Circular Saw 12 = 12 V d.c.

  • Page 31: Assembly

    Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage, do not use the product but contact your dealer.
  • Page 32 SAW BLADE WARNING! Always use the correct saw blade according to the intended use! Observe the technical requirements of this product (see section Technical specifications) when purchasing and using saw blades! Saw blades are very sharp and become hot during use! Handle them carefully! Wear protective gloves when handling saw blades in order to avoid injuries like burns and cuts! NOTE: Check the saw blade before every use for damage and wear.
  • Page 33 WARNING! Ensure that the rotational direction indicated on the saw blade is the same as the one shown on the upper guard (14). 9. Carefully release the retraction lever (10) back to its initial position to make the plunge lock plate (9) lock in place. 10.
  • Page 34 PARALLEL GUIDE Attach the parallel guide (22) to perform cuts parallel to the workpiece edges. 1. Loosen the locking bolt for parallel guide (16) anticlockwise using the hex key (21) (Fig. H, step 1). 2. Align the parallel guide (22) to the slot and insert it (Fig. H, step 2). 3.

  • Page 35: Use

    Intended use The mini saw is designed for straight cutting of solid wood and wood-like materials with TCT / HSS saw blades, plastics with HSS saw blades when working dry, or for dry cutting of mineral materials, e.g., masonry, tiles, marble, granite and concrete with diamond cutting discs when connected to a suitable dust extraction system.
  • Page 36 3. The cutting depth is ensured by aligning the depth scale (8b) with the pointer (8a). 4. Lock the depth setting lever (8) afterwards (Fig. K, step 3). WARNING! Always check the depth setting lever (8) before working. A loose depth setting lever (8) may cause serious injury. Switching On/Off (Fig.
  • Page 37 General cutting WARNING! During operation fine dust will be generated! Some dusts are highly inflammable and explosive! Do not smoke during operation, keep heat sources and open flames out of the working area! Always wear a dust mask to protect yourself against hazards resulting from fine dust! WARNING! Always carry out a test run before starting work and after every tool change!
  • Page 38 6. Place the material to be cut onto a flat surface such as a workbench, table or floor. Use a piece of scrap material underneath if you do not wish to damage the work surface. The work surface is likely to damage the blade. E.g. a concrete floor. 7.

  • Page 39: Care & Maintenance

    CERAMIC TILES, SLATES ETC. 1. Only use a blade specifically designed for this purpose. 2. Always use with a suitable vacuum cleaner or dust extractor connected as the dust can be hazardous to the operator and prevent the guard operating correctly. PLASTERBOARD 1.
  • Page 40 Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. Maintenance Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your tool. Transportation 1.
  • Page 41 Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! Problem...
  • Page 42 Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. Disposal of an exhausted battery pack The battery is Li-Ion type.

  • Page 43: Guarantee

    Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product Mini Circular Saw) has a manufacturer’s guarantee of 3 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
  • Page 44 Batteries and battery chargers are not covered under the Erbauer 3 Year Warranty and will have a guarantee period of 2 years from the date of purchase. If the product is defective, we will, within a reasonable time, repair or replace it.

  • Page 45: Declaration Of Conformity

    Declaration of conformity MNL_Erbauer_GB_12V Mini Circular Saw_V5_210415 III.indd 44 3/30/21 7:04 PM...
  • Page 46 EN 62841-1: 2015 EN 62841-2-5:2014 EN 60745-1:2009+A11:2010 EN 60745-2-22:2011+A11:2013 EN 55014-1: 2017+A11: 2020 EN IEC 55014-1:2021 EN 55014-2: 2015 EN IEC 55014-2:2021 07/10/2021 MNL_Erbauer_GB_EID12-Li-2_12V Impact driver_V12.indd 29 3/30/21 7:04 PM...
  • Page 47 EN 62841-1: 2015 BS EN 62841-1: 2015 EN 62841-2-5:2014 BS EN 62841-2-5:2014 EN 60745-1:2009+A11:2010 BS EN 60745-1:2009+A11:2010 EN 60745-2-22:2011+A11:2013 BS EN 60745-2-22:2011+A11:2013 EN 55014-1:2017+A11:2020 EN IEC 55014-1:2021 EN 55014-2:2015 EN IEC 55014-2:2021 BS EN 55014-1: 2017+A11: 2020 BS EN IEC 55014-1:2021 BS EN 55014-2: 2015 BS EN IEC 55014-2:2021 On:07/10/2021...
  • Page 48 EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline: UK 03301248111 erbauer@powertoolservicing.co.uk Eire 0035312479977 erbauer@powertoolservicing.co.uk MNL_Erbauer_GB_12V Mini Circular Saw_V6_210422.indd 46 4/22/21 6:27 PM...
