Summary of Contents for Erbauer ERS1100-1

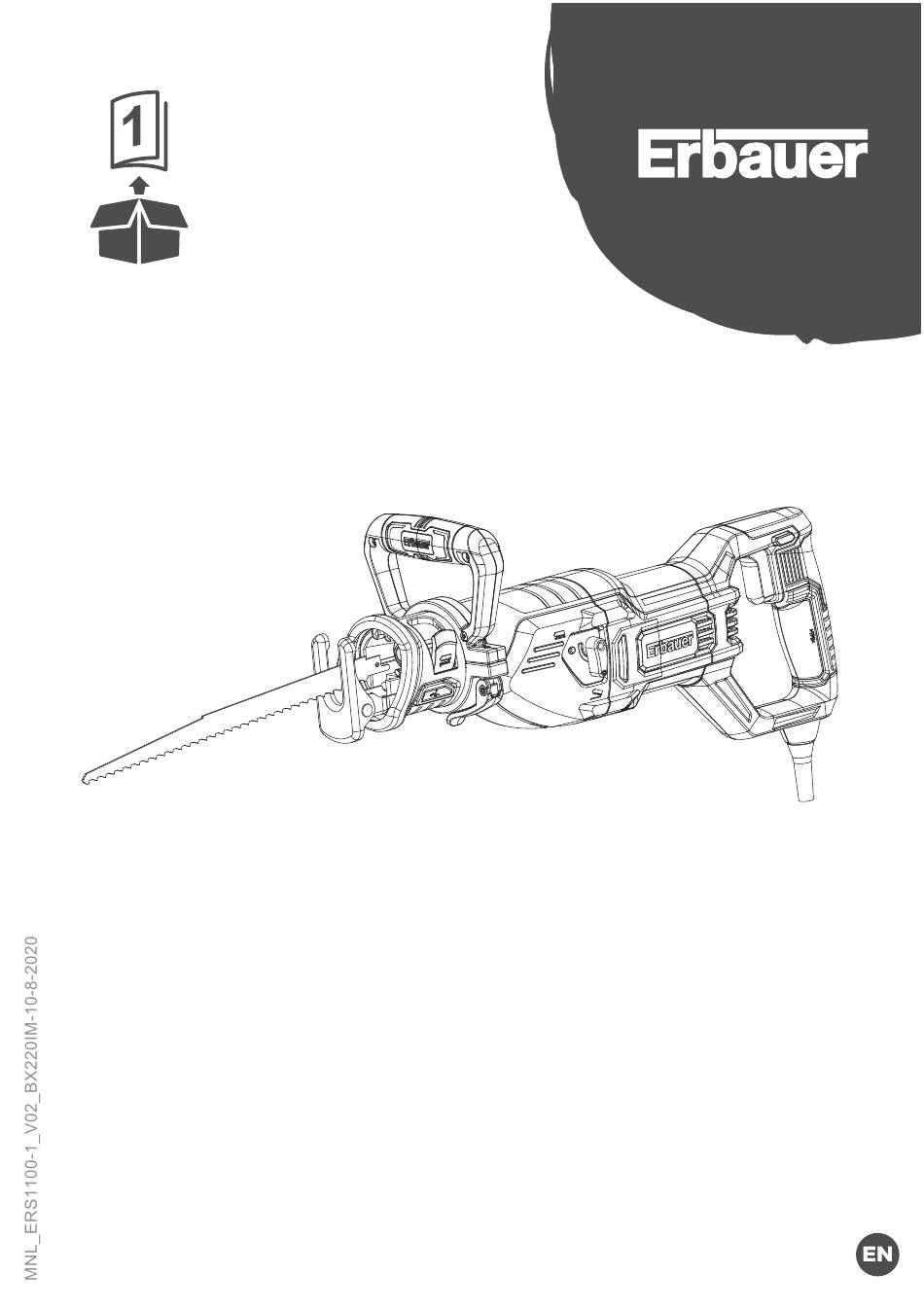

- Page 1 3663602424970 ERS1100-1 ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity... - Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool.
- Page 4 Product description...
-
Page 7: Safety Instructions
Safety instructions GENERAL POWER TOOL SAFETY WARNING WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 8 inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting.
- Page 9 h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. 5) SERVICE a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
- Page 10 mortar. The silica is broken into very fine dust (also known as Respirable Crystalline Silica or RCS) during many common tasks such as cutting, drilling and grinding. Breathing in very fine particles of crystalline silica can lead to the development of: •...
- Page 11 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 12 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Note: •...
- Page 13 6. Plan your work schedule to spread any high vibration tool use across a longer pe- riod of time. 7. Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g.
-
Page 14: Product Description
Product description Part index The index below refers to Fig. 1 on page 4. Guide plate On/Off switch Guide plate adjustment button Main handle Release lever for tool socket 10. Tool socket Auxiliary handle 11. LED working light Pendulum selector 12. - Page 15 The sound emission values have been obtained according to the noise test code given in EN 62841-1 and EN 62841-2-11. The noise for the operator may exceed 80 dB(A) and ear protection measures are necessary. Rating label explanation ERS1100-1 = Model number E = Erbauer RS = Reciprocating Saw 1100 = Power (Watts)
-
Page 16: Assembly
Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 17 Auxiliary handle adjustment (Fig. A and B) The auxiliary handle shall be assembled when you use the product. 1. Release the clamping lever of auxiliary handle (12) (Fig. A, step 1) and turn it anticlockwise to open fully. (Fig. A, step 2) 2.
- Page 18 Inserting 1. Open the release lever for tool socket (3) and hold it in position. 2. Insert the saw blade into the tool socket (10) fully to the stop. Make sure the saw teeth point to the cutting direction. 3. Release the lever for tool socket (4) and make sure the saw blade is firmly clamped in the tool socket (10).
-
Page 19: Use
Intended use This product is intended for cutting wood and similar material e.g. MDF and chipboard, plastic and metal using the respective saw blade. The product must be used with the guide plate laying flat against the workpiece. It may not be used as a stationary product on a work bench. - Page 20 Switching on/off (Fig. F) Operate the product either in instant or continuous mode. Instant mode Switch the product on by pressing the on/off switch (8) and release the trigger to stop Continuous mode 1. Switch the product on by pressing the on/off switch (8) and hold it in position. 2.
- Page 21 Fast cuts in soft materials (e.g. softwood); cutting in the direction of the wood grain. Operation Cutting (Fig. G) WARNING! During operation fine dust will be generated! These dusts are highly inflammable and explosive! Do not smoke during operation, keep heat sources and open flames out of the working area! Always wear a dust mask to protect yourself against hazards resulting from fine dust! NOTE: Always make a trial cut before working on the actual workpiece,...
- Page 22 WARNING! Danger of kickback! Apply the product to the workpiece only when switched on! WARNING! Always ensure the guide plate lays flat on the workpiece during operation! Do not try to make cuts with the product only held by one hand! NOTE: Keep the product moving at all times, do not stop in one position to avoid grooves.
-
Page 23: Care & Maintenance
Care & maintenance WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! Clean •... - Page 24 Transportation WARNING! Always carry the product by its main handle. Never use the cord for carrying the product. 1. Switch the product off and disconnect it from the power supply. Remove blade if necessary. 2. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
-
Page 25: Guarantee
Guarantee At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. We carry out stringent testing procedures on all our tools and are confident that they can provide regular, sustained daily use during the period covered. -
Page 26: Declaration Of Conformity
London W2 6PX United Kingdom Declare that the product 1100W Reciprocating Saw ERS1100-1 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:... - Page 27 Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product 1100W Reciprocating Saw ERS1100-1 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:...
- Page 28 Manufacturer • Fabricant • Producent • Producator • Fabricante: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom www.kingfisher.com/products Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Distributor: www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
