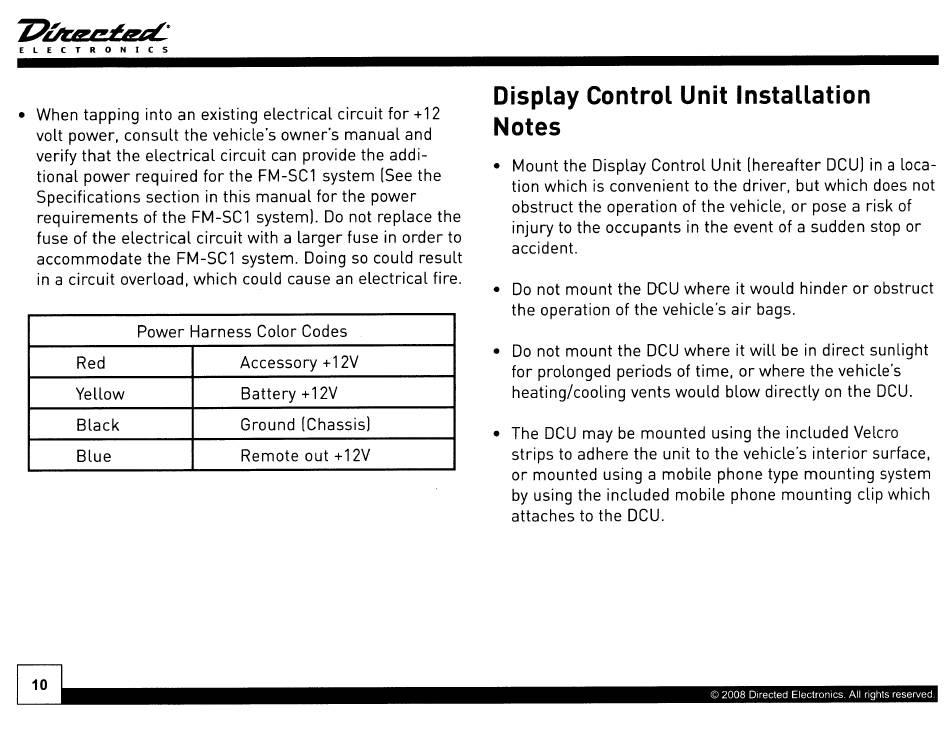

• When tapping into an existing electrical circuit for
+
12
volt power, consult the vehicle's owner's manual and
verify that the electrical circuit can provide the addi-
tional power required for the FM-SC1 system (See the
Specifications section in this manual for the power
requirements of the FM-SC1 system). Do not replace the
fuse of the electrical circuit with a larger fuse in order to
accommodate the FM-SC1 system. Doing so could result
in a circuit overload, which could cause an electrical fire.
Power Harness Color Codes
Red
Accessory
+
12V
Yellow
Battery
+
12V
Black
Ground (Chassis]
Blue
Remote out
+
12V
Display Control Unit Installation
Notes
• Mount the Display Control Unit [hereafter DCU) in a loca-
tion which is convenient to the driver, but which does not
obstruct the operation of the vehicle, or pose a risk of
injury to the occupants in the event of a sudden stop or
accident.
• Do not mount the DCU where it would hinder or obstruct
the operation of the vehicle's air bags.
• Do not mount the DCU where it will be in direct sunlight
for prolonged periods of time, or where the vehicle's
heating/cooling vents would blow directly on the DCU.
• The DCU may be mounted using the included Velcro
strips to adhere the unit to the vehicle's interior surface
,
or mounted using a mobile phone type mounting system
by using the included mobile phone mounting clip which
attaches to the DCU.
10
