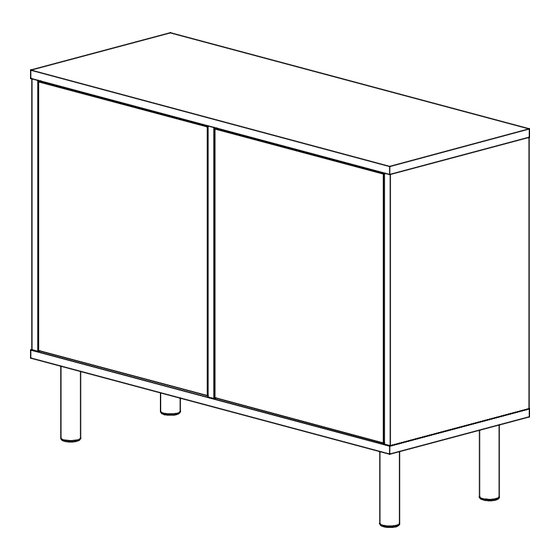

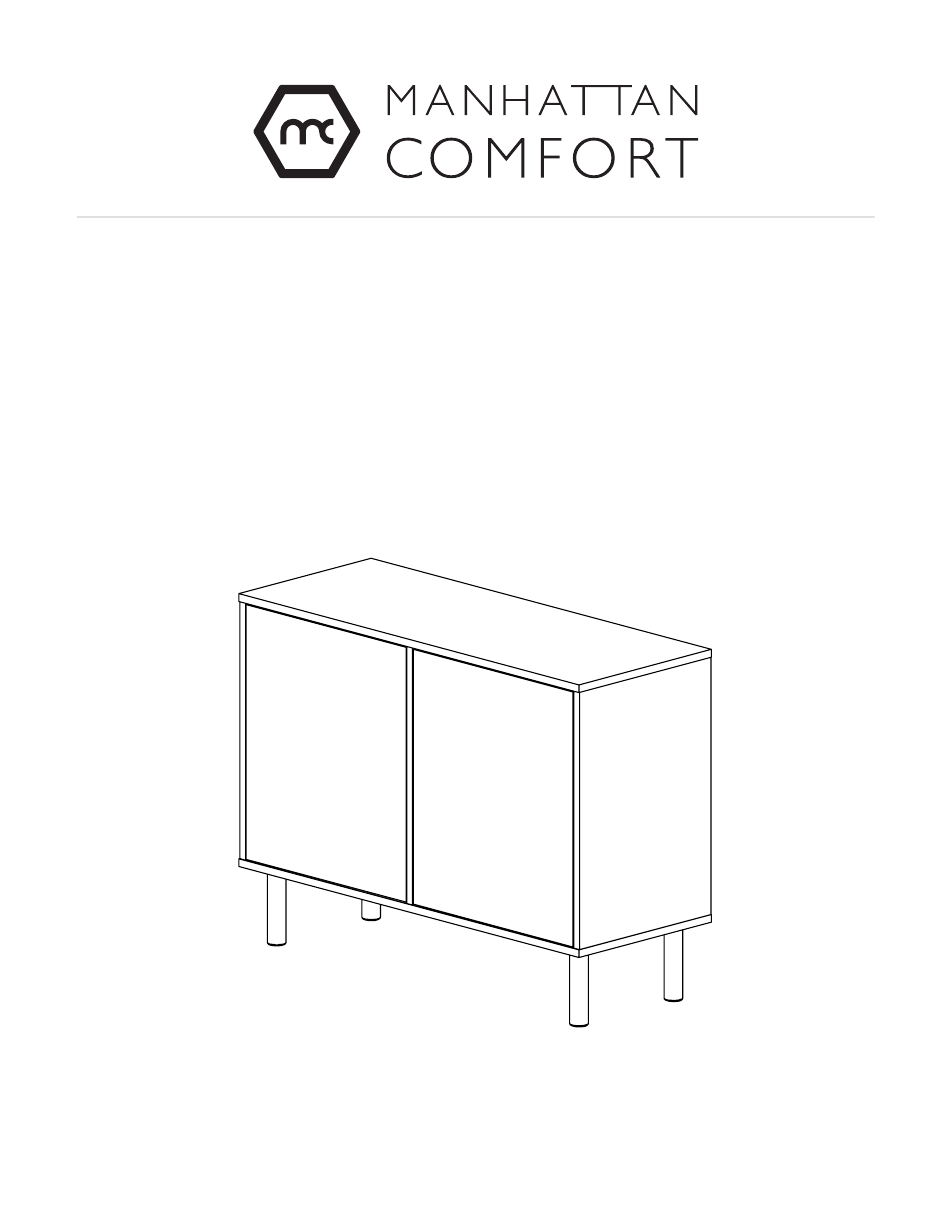

- Page 1 ASSEMBLY GUIDE AC-312AMC V.08/2023...
-
Page 2: For Best Results
STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •... - Page 3 Included in this package: 01. Base 02. Top 03. Left Side 04. Right Side 05. Division 06. Shelf 07. Door Left 08. Door Right 09. Back 10. Wood Feet...
- Page 4 Included in this package: EF 000106 X 20 EF 000033 x 12 EF 000094 X 6 EF 000216 X 6 EF 000132 x 6 EF 000168 X 30 EF 000043 X 4 EF 000025 X 4 Cola Glue Pegamento PLASTIC SUPPORT X 8 EF 000745 x 4 EF 000741 x 1 EF 000008 x 1...
- Page 5 =16 KG - 35.5LB =3KG - 6.61LB B- x6...
- Page 6 A- x8 D- x8 H- x4 P- x4 A- x4 P- x4 D- x8 G- x4...
- Page 7 C- x6 Cola Glue Pegamento K- x1 I- x4 J- x1 E- x6...
- Page 8 F- x30...
- Page 9 To attach “push open” system, fix part L using hardware D, fit part M, put part N on the magnet, remove L- x2 the tape film and close the door. M- x2 N- x2 D- x4 Z- x16 Y- x1...
-
Page 10: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This war ranty is valid in the United States of America and Canada.
