Commercial electric water heater

Advertisement

Quick Links

To the Installer :
Please attach these instructions
next to the water heater.
Installation and Operation Instructions Manual
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause serious
injury or property damage. Refer to this
manual. For assistance or additional
information, consult a qualified installer or
service agency.
CAUTION
The recommended water temperature for
normal residential use is 120°F/49°F. Outlet
water temperatures may exceed the thermostat
setting. Measure water temperature at the tap
nearest to the water heater.
WARNING
Hotter water increases the risk of scald injury.
Before adjusting the water temperature
setting, read this instruction manual.
Temperatures at which injury occurs vary with
the person's age and the length of exposure.
The slower reaction time of children, elderly,
and physically or mentally challenged persons
increases the scalding hazard to them. It is
recommended that lower water temperatures
be used where these exposure hazards exist.
Such households may require a temperature
setting less than 120°F to prevent accidental
contact with hot water.
To lower water temperature use point-of-use
temperature limiting devices.
WARNING
Water heater blankets are not recommended
and will void the warranty.
CAUTION
This water heater is not intended for space
heating applications.
#23583
To the Consumer :
Please read these and all component
instructions and keep for future reference.

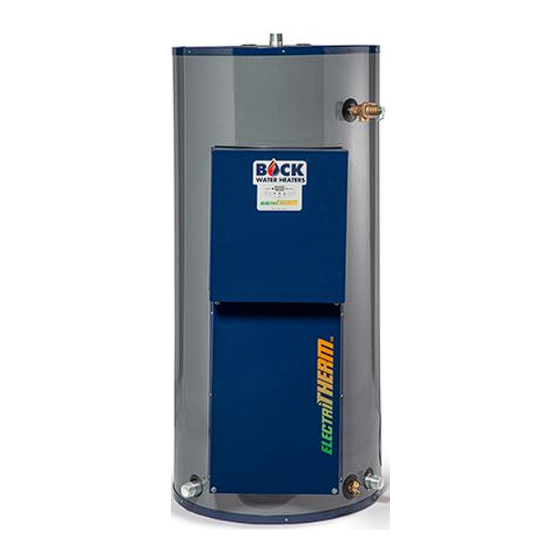

Commercial Electric Water Heater
Models: SWP050, SWP119, SWP119-A
Warranty, Registration Card and Parts List are included.
Owner: Please remember to return the Registration Card!
INSTALLER RESPONSIBILITIES
Please read all instructions thoroughly before
installing or placing the heater into service.
This unit must be installed by licensed or
authorized installers, or technical personnel
that service water heating equipment. The
heater must be installed in accordance with all
local codes and ordinances.
Local plumbing and electrical codes must
be followed in the installation of this water
heater. In the absence of a local code use the
UNIFORM PLUMBING CODE and the National
Electric Code, NFPA 70. Local codes may
supersede instructions in this installation
manual.
These instructions are a guide for the
correct installation of the water heater.
The manufacturer will not be liable for
damages caused by failure to comply with
the installation and operating instructions
outlined on the following pages.
HANDLING
Before uncrating, check for shipping damage.
Report any damage to your carrier. Note damage
on bill of lading or delivery receipt and file a
claim.
THIS MANUAL HAS BEEN PREPARED
TO ACQUAINT YOU WITH THE INSTALLATION,
OPERATION, AND MAINTENANCE OF
YOUR WATER HEATER AND TO PROVIDE
IMPORTANT SAFETY INFORMATION.
FAILURE TO FOLLOW THESE INSTRUCTIONS
OR ALL APPLICABLE BUILDING CODES AND
REGULATIONS VOIDS THE WARRANTY
ON THIS WATER HEATER.
Rev 1 05/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWP050 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bock Water heaters SWP050

  • Page 1 Installation and Operation Instructions Manual Commercial Electric Water Heater Models: SWP050, SWP119, SWP119-A Warranty, Registration Card and Parts List are included. Owner: Please remember to return the Registration Card! WARNING...
  • Page 2 This is the safety alert symbol. Statements following this symbol contain important safety information. Obey all safety messages that follow this symbol to avoid possible injury or death. Important safety information will be preceded by the safety alert symbol IMPORTANT SAFETY INSTRUCTIONS and the words DANGER, WARNING, CAUTION, OR NOTICE.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section I: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Section II: General Information .
  • Page 4: Section I: Specifications

    SECTION I: SPECIFICATIONS Optional 2" NPT (50 gal) 2" NPT (50 gal) 2-1/2" NPT (119 gal) 2-1/2" NPT (119 gal) (2x) Thermal T&P Valve Well Anode Rod (2x) ASME Plate Thermal (where Well applicable) Thermal Well Hand Hole 2" NPT (50 gal) 2-1/2"...
  • Page 5 SECTION I: SPECIFICATIONS Page 5...
  • Page 6: Section Ii: General Information

    SECTION II: GENERAL INFORMATION OVERVIEW This manual covers commercial electric water heaters intended for use as a swing tank in single-pass or multi-pass commercial heat pump water heating systems. All models are wired for connection to a three phase delta branch circuit and contain factory supplied internal fusing. Please reference the installation section of this manual for single phase applications.
  • Page 7 SECTION II: GENERAL INFORMATION ANODE RODS The anode rods are used as sacrificial elements within the volume of the storage tank. The purpose of the rods is to protect the inside of the tank against corrosion. Anode rods should be inspected twice in the first year and at least yearly once a time interval for inspection has been developed.
  • Page 8 SECTION II: GENERAL INFORMATION OUTDOOR SENSOR An outdoor sensor kit (Hydrolevel OS-100) is supplied with this water heater. Wire the sensor cable to the “Sensor 3” screw terminals located on the back of the operating control. Route the cable through the 7/8” knockout located at the top of the control panel enclosure (smallest knockout on right-side grouping).
  • Page 9: Section Iii: Pre-Installation

    SECTION III: PRE-INSTALLATION LOCATION CAUTION This water heater must be located in an area where leakage of the tank, water line connections, or the temperature and pressure relief valve will not result in damage to the area adjacent to the water heater or to lower floors of the structure. When such location cannot be avoided, a suitable drain pan must be installed under the water heater.
  • Page 10: Section Iv: Installation

    SECTION IV: INSTALLATION WATER CONNECTIONS CAUTION This water heater incorporates fittings that contain a nonmetallic lining. DO NOT apply heat to these fittings when making sweat connections to the heater. Sweat tubing to an adapter before securing adapter to any fittings on water heaters. ALL PIPING SHOULD CONFORM TO LOCAL CODES AND ORDINANCES.
  • Page 11 SECTION IV: INSTALLATION PIPING DIAGRAMS Piping connections for all models are shown in Figure 2. Figure 2: Piping Connections Page 11...
  • Page 12 SECTION IV: INSTALLATION Page 12...
  • Page 13 SECTION IV: INSTALLATION Page 13...
  • Page 14 SECTION IV: INSTALLATION Page 14...
  • Page 15 SECTION IV: INSTALLATION Page 15...
  • Page 16 SECTION IV: INSTALLATION ELECTRICAL CONNECTIONS DANGER Confirm that all electrical connections are unpowered before installing or servicing electrical components/connections within the water heater. WARNING The water heater must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electric Code, NFPA 70. Failure to properly wire electrical connections may result in serious physical harm.
  • Page 17 SECTION IV: INSTALLATION POWER LIMITING DIP SWITCH A DIP switch, consisting of two slide switches, is located on the back of the operating control. When slid to the ON position, each switch disables a certain number of heating elements thereby limiting the maximum (kW) input and current (amp) draw of the water heater.
  • Page 18 SECTION IV: INSTALLATION Table 7: Full Load Current and Overcurrent Protection Input Configuration (kW) 12.1 / 24 / 36 18 / 36 / 49.5 "Min" "Mid" "Max" "Min" "Mid" "Max" Input (kW) 12.1 24.0 36.0 18.0 36.0 49.5 # of elements ON Top Row Element Wattage Middle Row...
  • Page 19 SECTION IV: INSTALLATION Figure 8: Wiring Diagram Page 19...
  • Page 20: Section V: Operation

    SECTION V: OPERATION CAUTION THE WATER HEATER MUST BE FILLED WITH WATER BEFORE CONNECTING ELECTRIC POWER. When the branch circuit disconnect switch is closed and electric power is applied to the water heater, the operation of the water heater will be automatic. The temperature control is factory set to 120˚F.
  • Page 21 SECTION V: OPERATION CALL FOR HEAT CYCLE A call for heat will start when the tank temperature sensor reads 8°F less than the setpoint. When the outdoor sensor is connected to the operating control, the water heater will initially energize heating elements based on the outdoor temperature. When outdoor temperature is: (1) ≥40°F three heating elements initially energize (i.e.
  • Page 22: Section Vi: Maintenance

    SECTION VI: MAINTENANCE NOTICE TO THE OWNER: If you are having a problem with your water heater, contact your service company or installer. WATER PIPING On an annual basis, all piping should be checked for leakage at joints, shut-off valves, and unions.
  • Page 23 SECTION VI: MAINTENANCE HEATING ELEMENTS On an annual basis, check each heating element for leaks. Prior to checking, turn off the power supply. Remove the access cover and the insulation behind the cover. Use a flashlight to inspect around each element for leaks. After inspection, replace all insulation and the access cover to its original location.
  • Page 24: Section Vii: Troubleshooting

    SECTION VII: TROUBLESHOOTING In the event that the water heater is not working properly, contact a qualified service agency. WARNING Turn off power supply before servicing the water heater. Failure to do this could result in death, serious injury, or property damage. Table 8: Troubleshooting Table 8: Troubleshooting PROBLEM...
  • Page 25 Figure 16 describes various temperature control display condi7ons. Unless the up or down bu<on is pressed, or the control is in lockout or latchup, SECTION VII: TROUBLESHOOTING the display will show the setpoint temperature. The diagnos7c LED’s are used to indicate the opera7ng mode of the water heater.
  • Page 26 SECTION VII: TROUBLESHOOTING The display will show an error code when the water heater is in lockout or latchup. Refer to Figure 12 for a list of error codes and descriptions. Error Code Reason & Action Error Code Reason & Action Safety relay failed on.
  • Page 27: Section Viii: Parts List

    Anode Rod Element (Top Row) 15040 Pipe Nipple varies by model Input Config 12.1/24/36 (4kW ea.) varies by voltage Model SWP050 (2" NPT) 15340 208V 21850 Model SWP119 (2-1/2" NPT) 15255 240V 21852 T&P Relief Valve 21790 480V 21856 3/4" NPT Pipe Nipple 15455 Input Config 18/36/49.5 (4.5kW ea.)
  • Page 28 SECTION VIII: PARTS LIST Figure 14: Electric Panel Table 10: Parts List - Electric Panel Item No. Description Part No. Item No. Description Part No. Contactor 20526 Transformer Fuse (Primary Side) varies w/ voltage Element Fuse Block 20528 208V 20509 Transformer, 120V, 50VA (208/240/480/600V Primary) 20501 240V 20509 Transformer Fuse Block, 2-pole...
  • Page 29: Section Ix: Bacnet Specification And Object List

    SECTION IX: BACNET SPECIFICATION AND OBJECT LIST IMPORTANT IMPORTANT – The connection of the water heater to a building management system must be done by a qualified individual. To connect to a building management system operating with BACnet MSTP protocol, use the RS485 connection provided on the back of the operating control.
  • Page 30 SECTION IX: BACNET SPECIFICATION AND OBJECT LIST See Table 12 for a list of BACnet objects, values and descriptions. Table 12: BACnet Objects Object ID Name Object Type Read Write Value Description Control Status Multistate input All output relays are off Output relay #1 is on Output relay #2 is on Output relay #3 is on...
  • Page 31: Section X: Warranty

    SECTION X: WARRANTY LIMITED WARRANTY FOR ELECTRIC WATER HEATER Bock Water Heaters, Inc. 110 S. Dickinson Street Madison, WI 53703 Phone: 608-257-2225 WHAT DOES THIS LIMITED WARRANTY COVER? This limited warranty applies only to the original consumer purchaser. General Defects and Malfunctions: This warranty covers defections and malfunctions in your new water heater for a period of one year from the original installation date.
  • Page 32 INDIRECT, AND WHETHER ARISING IN CONTACT OR TORT. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. Bock Water Heaters, Inc. • 110 South Dickinson Street • Madison, WI 53703 Telephone 608 -257-2225 • Fax 608 -257- 5304 www.bockwaterheaters.com...
