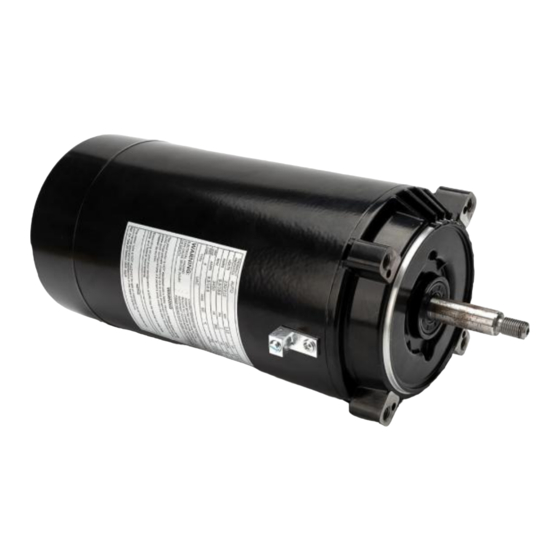

Pool Pump Motor
Model:HM14065LCb/HM14095LCb/HM16075LCb
HM14075LCb/HM16058LCb/HM16085ECb
We continue to be committed to provide you tools with competitive price. "Save Half",
"Half Price" or any other similar expressions used by us only represents an estimate of
savings you might benefit from buying certain tools with us compared to the major top
brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR HM14065LCb
Summary of Contents for VEVOR HM14065LCb
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support Pool Pump Motor Model:HM14065LCb/HM14095LCb/HM16075LCb HM14075LCb/HM16058LCb/HM16085ECb We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Safety Warnings And Precautions
SAFETY WARNINGS AND PRECAUTIONS 1. Voltage, frequency and the wiring style should be consistent with the motor nameplate, power supply voltage should be maintained at plus or minus 5% of the rated operating range. 2. No more than 1000 meters above sea level. 3. -
Page 4: Installation
properly. These instructions are intended as a guide to identify and eliminate these problems before they are overlooked or cause further damage. ACCEPTANCE Check carefully for any damage that may have occurred in transit. If any damage or shortage is discovered, do not accept until an appropriate notation on the freight bill is made. -
Page 5: Technical Info
TECHNICAL INFO: HM140 HM140 HM160 HM140 HM160 HM160 Model No 65LCb 95LCb 75LCb 75LCb 58LCb 85ECb Model flange Horsepower 0.75HP 1.5HP 1.5HP 1.0HP 2.0HP no-load ≤460W ≤460W ≤350W ≤460W ≤350W ≤460W power 40℃ 40℃ 40℃ 40℃ 40℃ 40℃ 1.25 8A(115 13.6A(1 9.8A(11 9.0A(11... -
Page 6: Product Wiring Diagram
14.3- 14.3- 14.3- Screw tooth 12.7±0. 12.7±0. 12.7±0. 17.85m 17.85m 17.85m length 51mm 51mm 51mm Product wiring diagram Single voltage(HM16085ECb) WIRING DIAGRAM-230V Dual voltage specification wiring diagram(HM14065LCb/HM14095LCb/HM16075LCb/HM14075LCb/HM1 6058LCb) WIRING DIAGRAM-115/230V... - Page 7 Planing...
- Page 8 56J(HM14065LCb/HM14095LCb/HM14075LCb)
- Page 9 56Y(HM16075LCb/HM16058LCb/HM16085ECb)
- Page 10 Product installation precautions 1. After receiving the product, open the packaging and remove it to inspect its appearance for any damage caused by transportation. If the packaging is damaged or the product is damaged, please contact customer service or transportation company urgently. Do not install it voluntarily. 2.
- Page 11 4. To install the impeller of the swimming pool pump, it is necessary to remove the back cover of the motor and use a wrench to clamp the flat top of the main motor shaft (to prevent the motor shaft from rotating when installing the impeller).
- Page 12 6. Motor grounding indication, connect a grounding wire to the motor grounding device. Special attention: All motor models are wired with a default voltage of 230V before leaving the factory. Please adjust according to your own power supply specifications upon receipt. (If your own power supply is 230V voltage, there is no need to adjust it).
- Page 13 1) Please check the power supply to make sure the output voltage is correct. 2) Please check the wiring carefully to make sure it's the same as the wiring diagram. 3) Check whether the motor protector is intact and there is no open circuit. Problem 4: After running for a period of time, the motor heats up and stops working.
- Page 14 Technical Support and E-Warranty Certificate www.vevor.com/support...
