Technical Support and E-Warranty Certificate www.vevor.com/support

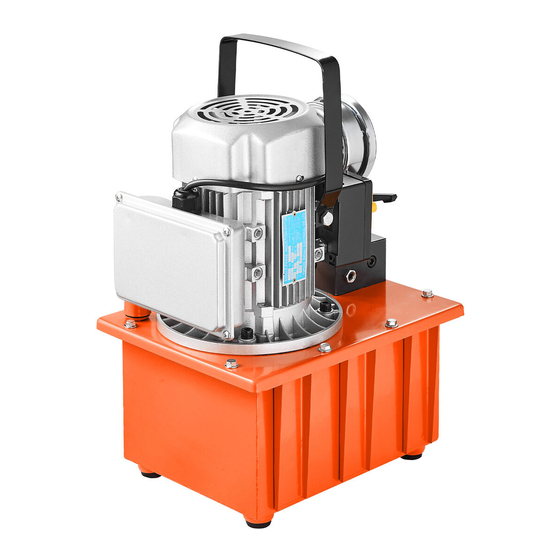

ELECTRIC MOTOR HYDRAULIC PUMP
USER MANUAL
MODEL:GYB-630B GYB-630BⅡ GYB-700A GYB-700AⅡ
We continue to be committed to providing you with tools at competitive prices.
"Save Half", "Half Price" or any other similar expressions used by us only represent an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and do not necessarily mean to cover all categories of tools offered by us. You are
kindly reminded to verify carefully when you are placing an order with us if you are actually
saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR GYB-630B
Summary of Contents for VEVOR GYB-630B
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ELECTRIC MOTOR HYDRAULIC PUMP USER MANUAL MODEL:GYB-630B GYB-630BⅡ GYB-700A GYB-700AⅡ We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
-
Page 4: Specifications
READ THESE INSTRUCTIONS CAREFULLY BEFORE SPECIFICATIONS Name Electric High Hydraulic Pump Model GYB-630B GYB-700A GYB-630BⅡ GYB-700AⅡ Rated Pressure 70MPa Oil Flow Low Pressure:8L/min High Pressure:0.7L/min Voltage 110V,60Hz,750W Oil Capacity Switch Hand Switch Foot switch Hand Switch Foot switch Output NPT 3/8... - Page 5 WARNING: When using the tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Read all instructions before using this tool! 1. Keep the work area clean. Cluttered areas invite injuries. 2.
- Page 6 accessories. Inspect tool cords periodically and, if damaged, have them repaired by an authorized technician. The handles must be kept clean, dry, and free from oil and grease at all times. 11. Disconnect power. Unplug the tool when not in use. 12.
-
Page 7: Installation
the use of an extension cord of 0 to 12 amps capability (up to 50 feet), with wire size rated at 16 AWG. Longer extension cords require larger size wires. If you are using the tool outdoors, use an extension cord rated for outdoor use. - Page 8 And butt the quick connector with the tool. HYDRAULIC PUMP WARNINGS AND PRECAUTIONS Before using this pump unit, check the oil tank of the pump. MAKE SURE there is enough oil in the oil tank and higher than the oil-window 1) Open the air-out screw before operating the pump.
-
Page 9: Common Faults And Solutions
Replace the bearing parts and lubricate them accordingly every 18 months. COMMON FAULTS AND SOLUTIONS Faults Reason Solutions Motor Abnormal Electric power Check the power Pressure Abnormal Oil leaking Make inspection and replace new O-rings Oil flow insufficient Add oil or change hydraulic oil PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE... - Page 10 Main Parts: ① Control Pedal ② Oil-window ③ Oil Hose ④ AC Power Line ⑤ Pressure Gauge ⑥ Carrying Frame ⑦ Electromagnetic Valve Unit ⑧ Oil Tank ： Standard accessories...
- Page 11 Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris Importer: FREE MOOD LTD Address: 2 Holywell Lane, London, England, EC2A 3ET Manufacturer: YUHUAN SAITUO HYDRAULIC TOOLS CO., LTD. Address: Building 70, Chuangrong Industrial City, Yucheng Street, Yuhuan City, Zhejiang Province Made In China...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
