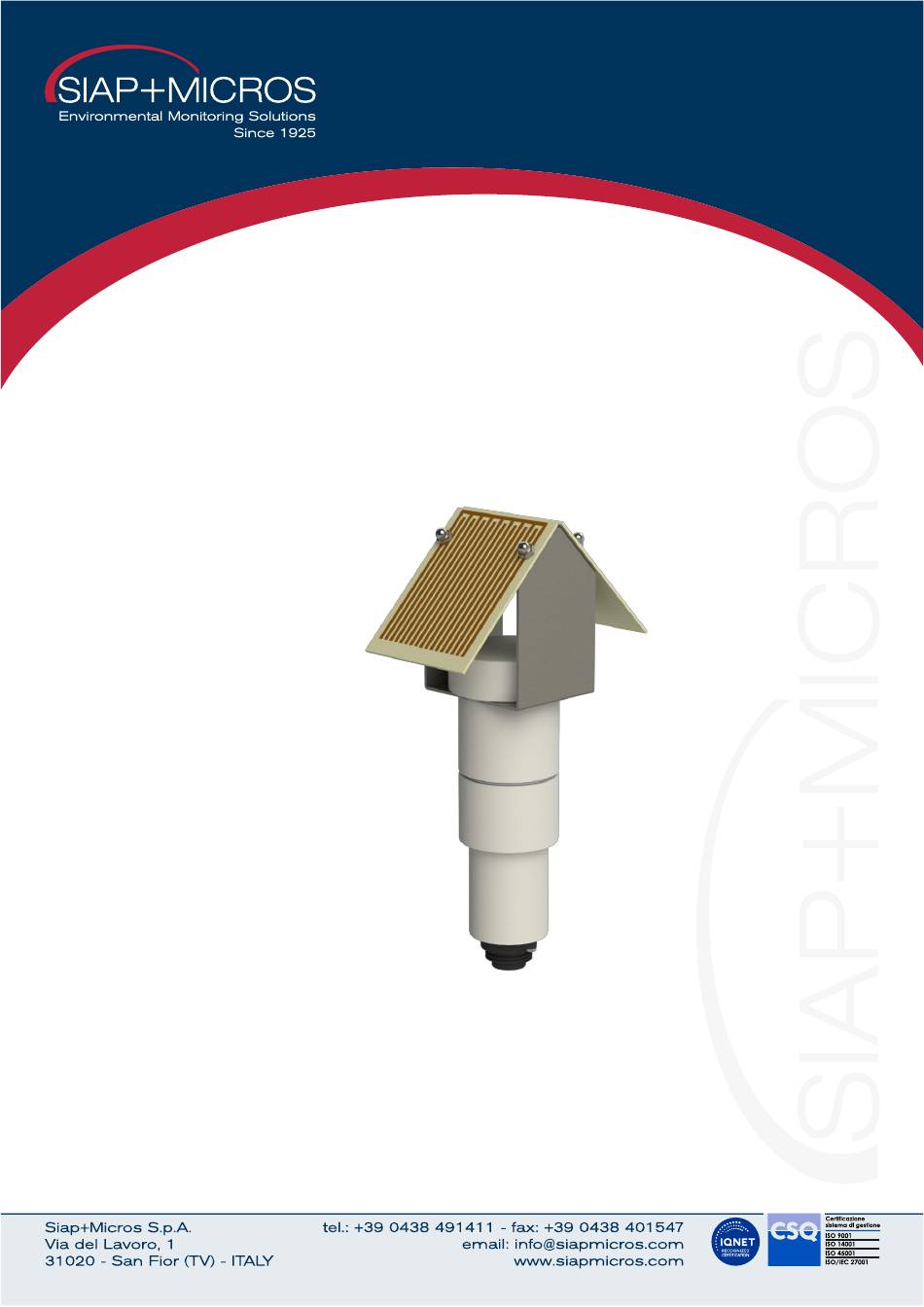

- Page 1 TBF Leaf Wetnwss Transducer User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t017-di TBF.docx Summary Introduction ..............................3 Technical specification ..........................4 Installation and maintenance ........................6 Installation ............................6 Maintenance ............................6 Electrical connection ..........................7 Connector output ..........................7 Connection cable ..........................7 Generic information ........................... 8 Safety .............................. -
Page 3: Introduction
User manual and maintenance t017-di TBF.docx 1 Introduction TBF is a basic sensor for agrometeorology, typically used to investigate with a very high precision the persistence of water drops above the leaf surface. This indicator is fundamental to measure the residence time of water drops on the leaves, in order to identify phytopathological risks or the leaching of treatments from crops. -
Page 4: Technical Specification
User manual and maintenance t017-di TBF.docx 2 Technical specification Measurement performance Transducer Two gilded copper electrical circuits placed on glassonite plates Measurement range ON / OFF Sensibility Accuracy Operating conditions Temperature 0 ÷ +60 °C Humidity 0 ÷ 100 % Outputs Natural Open drain (relay contact upon request) - Page 5 User manual and maintenance t017-di TBF.docx Dimension: H1 – maximum hight: 232 mm P1 - depth: 67 mm L1 - lenght: 130 mm D1 – fixing diameter: 40 mm Element: A – sensitive element B – fixing shank C – output connector Weight: 410 g 26/10/2023 Vers.: 1.0...
-
Page 6: Installation And Maintenance
As illustrated in the image below, the sensor must be fixed to the plastic stem with jumpers, or similar elements, of 40mm diameter indiscriminately in any position of the standard Siap+Micros support bracket. 3.2 Maintenance This type of transducer does not require particular maintenance operations: periodic cleaning of the rain detection plates is recommended, at least every 6 months or when necessary, to eliminate dirt deposits present on the plate. -
Page 7: Electrical Connection
User manual and maintenance t017-di TBF.docx 4 Electrical connection 4.1 Connector output Output Contact Contact 4.2 Connection cable The connection cable supplied with the sensor is made with circular connectors with housing, 4x24 AWG shielded cable and ferrules for connection to the data logger terminals. The sock is connected to the black cable. -
Page 8: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 9: Appropriate Use Of The Equipment
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 10: Revision History
Version Date Updates 05/06/2023 Current version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice 26/10/2023 Vers.: 1.0...
