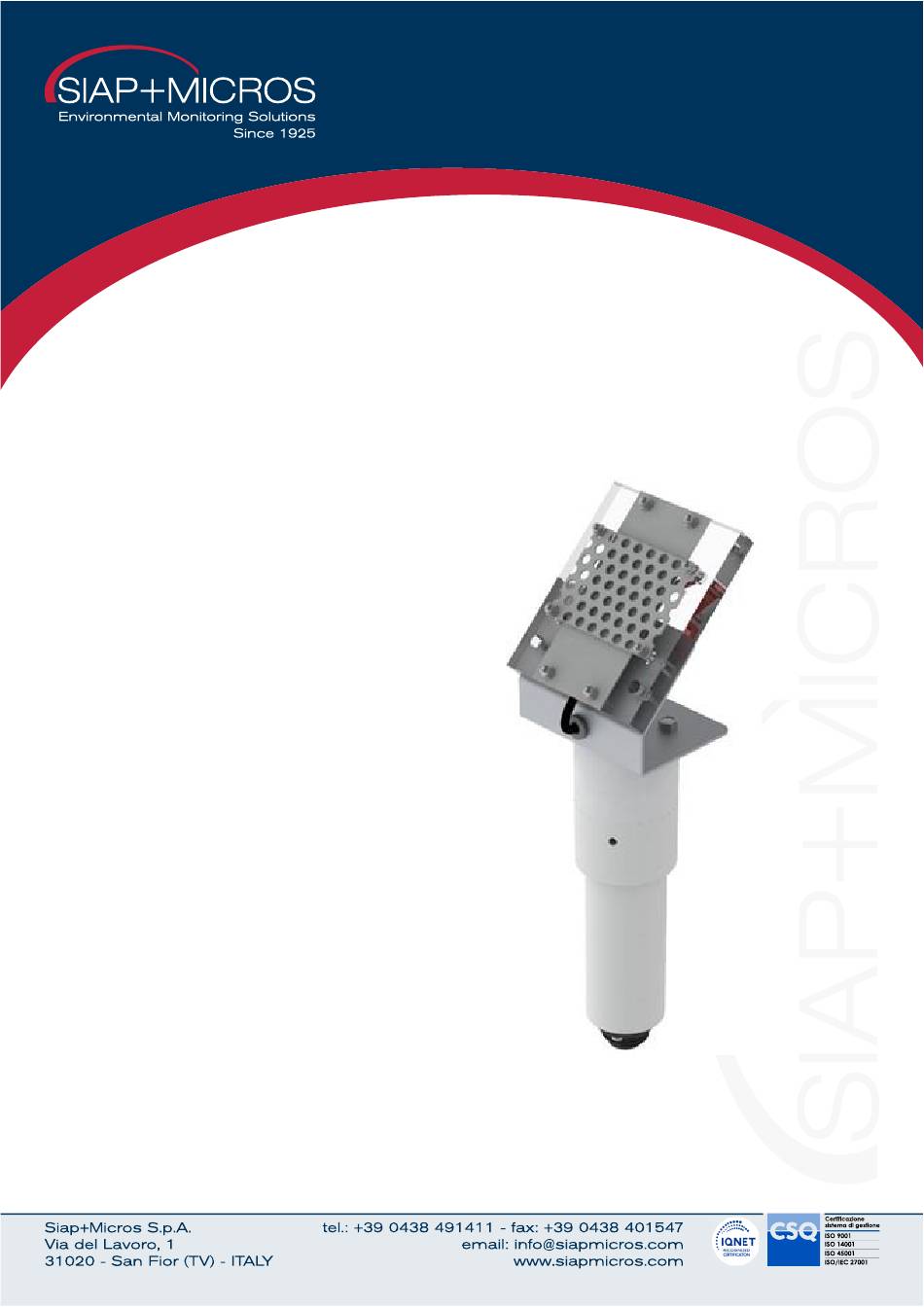

- Page 1 TTP Rain and snow Presence Transducer User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t018-di TPP.docx Summary Introduction ..............................3 Technical specificaion ..........................4 Operation scheme ..........................5 Installation and maintenance ........................6 Installation ............................6 Maintenance ............................6 Electrical connection ..........................7 Connector pinout ..........................7 Connection cable ..........................7 Generic information ........................... -
Page 3: Introduction
User manual and maintenance t018-di TPP.docx 1 Introduction TPP is an excellent easy-to-use device, which allows to detect rainfall, establishing the start and end of the precipitation in a very precise way, not being activated by dew or water condensation. The sensor indeed has been thoroughly designed in order to manufacture a very accurate device, capable of measuring also very short and small precipitation. -
Page 4: Technical Specificaion
User manual and maintenance t018-di TPP.docx 2 Technical specificaion Measurement performance Transducer Laminated electrodes and heater Measurement range ON / OFF rain/snow presence time Sensibility Accuracy Heating system power 10 W max Operating conditions Temperature -10 ÷ +70 °C Humidity 0 ÷... -
Page 5: Operation Scheme
User manual and maintenance t018-di TPP.docx Dimension: H1 – maximum height: 285 mm L1 – maximum lenght: 80 mm P1 - depth: 80 mm D1 – fixing diameter: 40 mm Element: A – sensitive element B – fixing shank C – connector Weight: 410 g 2.1 Operation scheme 05/06/2023... -
Page 6: Installation And Maintenance
As illustrated in the image below, the sensor must be fixed to the plastic stem with jumpers, or similar elements, of 40mm diameter indiscriminately in any position of the standard Siap+Micros support bracket. Note: when installing, pay attention not to position the TPP below elements which could drip during the drying phase, distorting the detection of rain by the TPP itself. -
Page 7: Electrical Connection
User manual and maintenance t018-di TPP.docx 4 Electrical connection 4.1 Connector pinout Output Contact Contact 4.2 Connection cable The connection cable supplied with the sensor is made with circular connectors with housing, 4x24 AWG shielded cable and ferrules for connection to the data logger terminals. The sock is connected to the black cable. -
Page 8: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 9: Appropriate Use Of The Equipment
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC.. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 10: Revision History
Version Date Updates 05/06/2023 Current version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice 05/06/2023 Vers.: 1.0...
