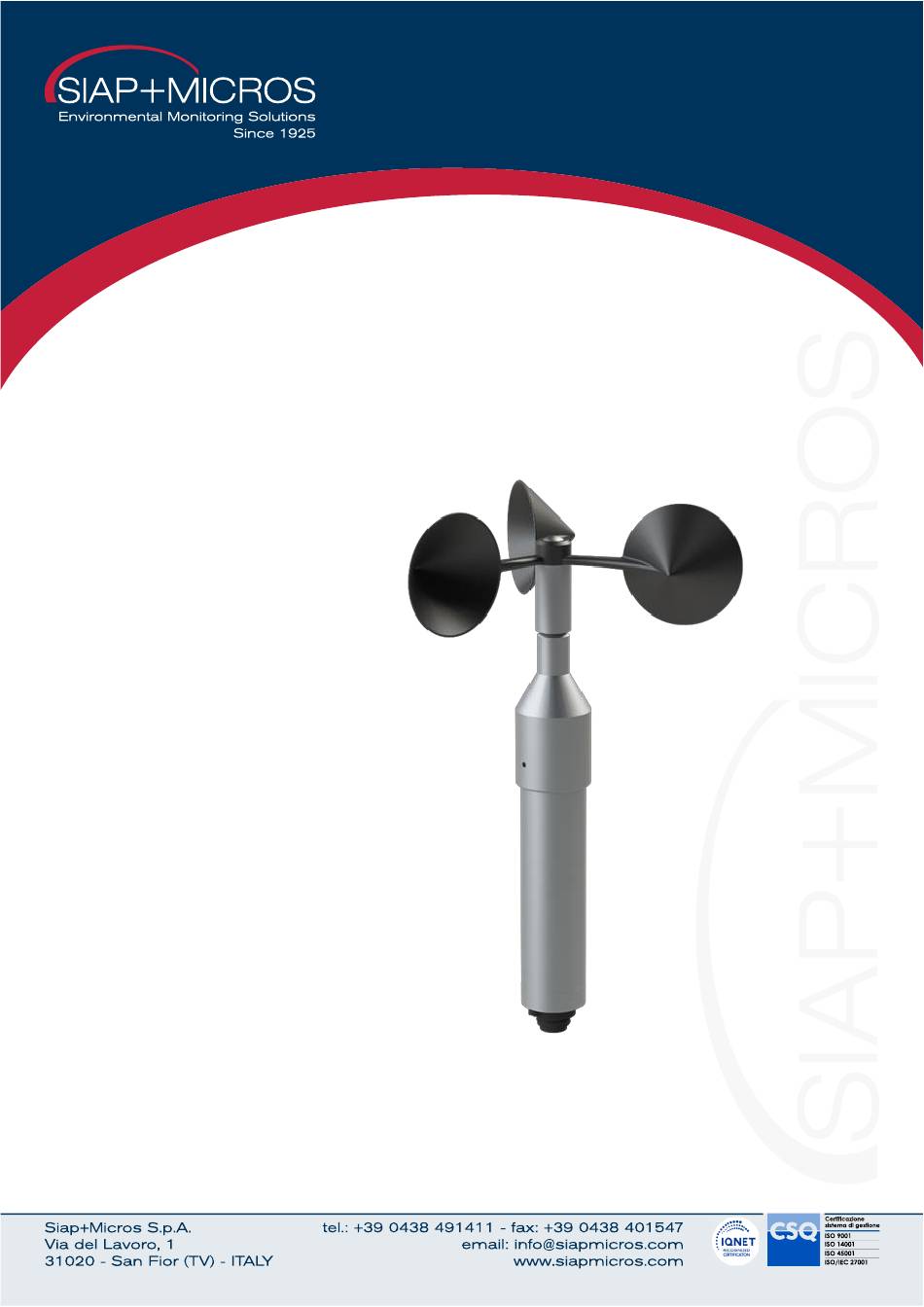

- Page 1 TVV / t032 TVVR Wind speed transducer User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t031-di TVV-TVVR.docx Summary Introduction ..............................3 Technical characteristic ..........................4 Operating principle ..........................6 Installation and maintenance ........................7 Installation ............................7 Maintenance ............................7 Electrical connection ..........................8 Connector pinout ..........................8 Connection cable ..........................8 Data reading in serial communication (RS485 Modbus and SDI-12) .......... -
Page 3: Introduction
User manual and maintenance t031-di TVV-TVVR.docx 1 Introduction TVV is composed of a rotating body connected to three conical shaped elements (cups), and it measures the wind speed exploiting the wind resistance to rotational movement of the cups. The rotating system is equipped with a six poles cylindrical magnet. -
Page 4: Technical Characteristic
User manual and maintenance t031-di TVV-TVVR.docx 2 Technical characteristic Measurement performance Transducer 6-pole magnet and stabilized Hall effect sensor Measurement range 0.25 ÷ 50 Accuracy < 0.15 o 1% of the measured value Resolution Operating conditions Temperature -40 ÷ 70 °C Humidity 0 ÷... - Page 5 User manual and maintenance t031-di TVV-TVVR.docx Dimensions: H1 - maximum: ~ 336 mm P1 – depth cup: 35 mm D1 - cup diameter: 70 mm Di1 - maximum diameter: 228 mm Sensor parts: A – Anodized aluminum body B – Cups in nylon (PA6 + 30% glass fiber) C –...
-
Page 6: Operating Principle
User manual and maintenance t031-di TVV-TVVR.docx 2.1 Operating principle The 3 cups at the top of the sensor rotate clockwise. When the wind blows the movement is transmitted by a steel shaft inside the sensor body, on the end of the shaft a 6-pole magnet is fixed, which rotates together with the shaft. -
Page 7: Installation And Maintenance
The TVV transducer is normally positioned (according to WMO standards) at a height of about 10 meters from the ground level. Normally, in Siap+Micros weather stations, it is installed with brackets equipped with 40mm diameter U-bolts (sensor stem diameter) fixed to the pole. -
Page 8: Electrical Connection
User manual and maintenance t031-di TVV-TVVR.docx 4 Electrical connection 4.1 Connector pinout Natural SDI-12 IVS output Heated version output output A-RS485 A-RS485 OUT OPEN OUT OPEN B-RS485 B-RS485 DRAIN DRAIN n.c. +0÷2 Vdc SDI-12 (data) n.c. +4÷20 mA +4÷20 mA -4÷20 mA n.c. -
Page 9: Data Reading In Serial Communication (Rs485 Modbus And Sdi-12)
User manual and maintenance t031-di TVV-TVVR.docx 4.3 Data reading in serial communication (RS485 Modbus and SDI-12) Sensors with RS485 Modbus or SDI-12 output send data only upon specific request from the PC, data logger or PLC. The correct communication parameters of the device performing the data retrieve are shown below.. 4.3.1 RS485 Modbus mode COM setting: 9600 baud, no parity, 8 data bit, 1 bit di stop. -
Page 10: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause slight differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 11: Appropriate Use Of The Device
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 12: Revision History
Version Data Aggiornamenti 19/05/2023 First version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice. 19/05/2023 Vers.: 00...
