Summary of Contents for SIAP+MICROS t020 TTA

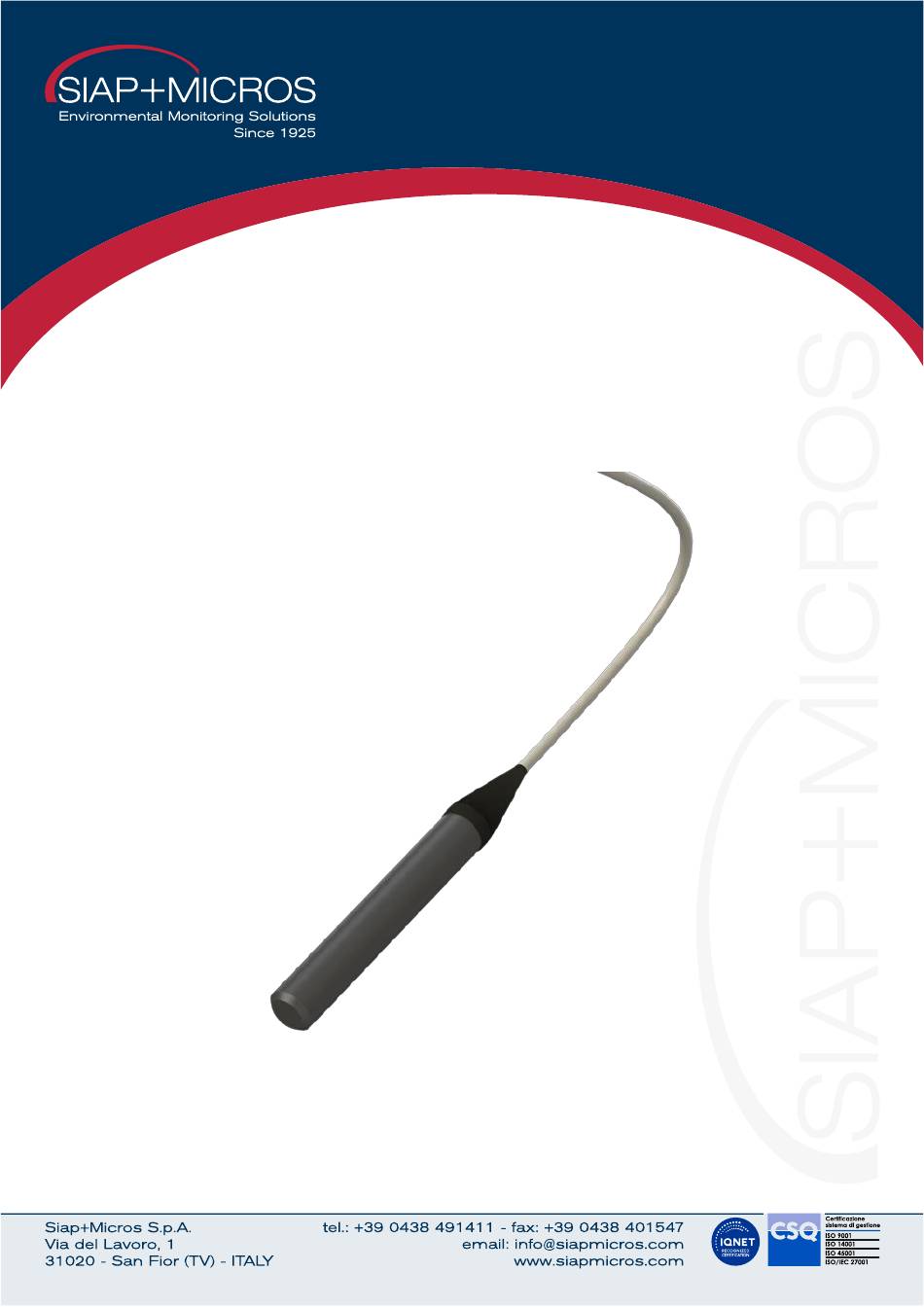

- Page 1 TTA Water Temperature Transducer User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t020-di TTA.docx Summary Introduction ..............................3 Technical specificaion ..........................4 Installation and maintenance ........................5 Installation ............................5 Maintenance ............................5 Electrical connection ..........................6 Natural Version connections ......................6 Version I, V, S connections ........................ 6 4.2.1 Connector output ........................... -
Page 3: Introduction
A/D conversion of electrical signals, etc. These features ensure excellent accuracy, high data reliability. The sensor can be accompanied by a Siap+Micros calibration certificate or by certificates issued by other external laboratories (SIT, Colonnetti, etc.). The body of the sensor is made of PVC, it is equipped with an IP-67 connector and 15 m of cable. -
Page 4: Technical Specificaion
User manual and maintenance t020-di TTA.docx 2 Technical specificaion Measurement performance Transducer Pt100 1/3 DIN 43760 Measurement range -30 ÷ 60 °C Accuracy (current, tension, serial outputs) 1/3 DIN 43760 Resolution Operating conditions Temperature -30 ÷ +60 °C Output Natural Pt100 a 4 fili 4 ÷... -
Page 5: Installation And Maintenance
User manual and maintenance t020-di TTA.docx Probe Dimension: H1 – lenght: 140 mm D1 – diameter: 15 mm Box dimension: L2 – lenght: 120 mm H2 – total height: 122 mm H3 – box height: 80 mm P2 – depth: 62 mm I2 –... -
Page 6: Electrical Connection
User manual and maintenance t020-di TTA.docx 4 Electrical connection 4.1 Natural Version connections Cable White Green Black+Shield Signal 4.2 Version I, V, S connections Below is the pinout of the connector on the signal conversion electronics. 4.2.1 Connector output I / V / S / SDI12 output +4÷20 mA +0÷2 Vdc... -
Page 7: Data Readinding In Serial
User manual and maintenance t020-di TTA.docx 4.3 Data readinding in serial Sensors with RS485 Modbus output send data only upon specific request from the PC, data logger or PLC. Below are the correct communication parameters of the device performing the interrogation. 4.3.1 RS485 Modbus mode Serial port settings: 9600 baud, no parity, 8 data bit, 1 bit di stop... -
Page 8: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 9: Appropriate Use Of The Equipment
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 10: Revision History
Version Date Updates 05/06/2023 Current version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice 26/10/2023 Vers.: 1.0...
