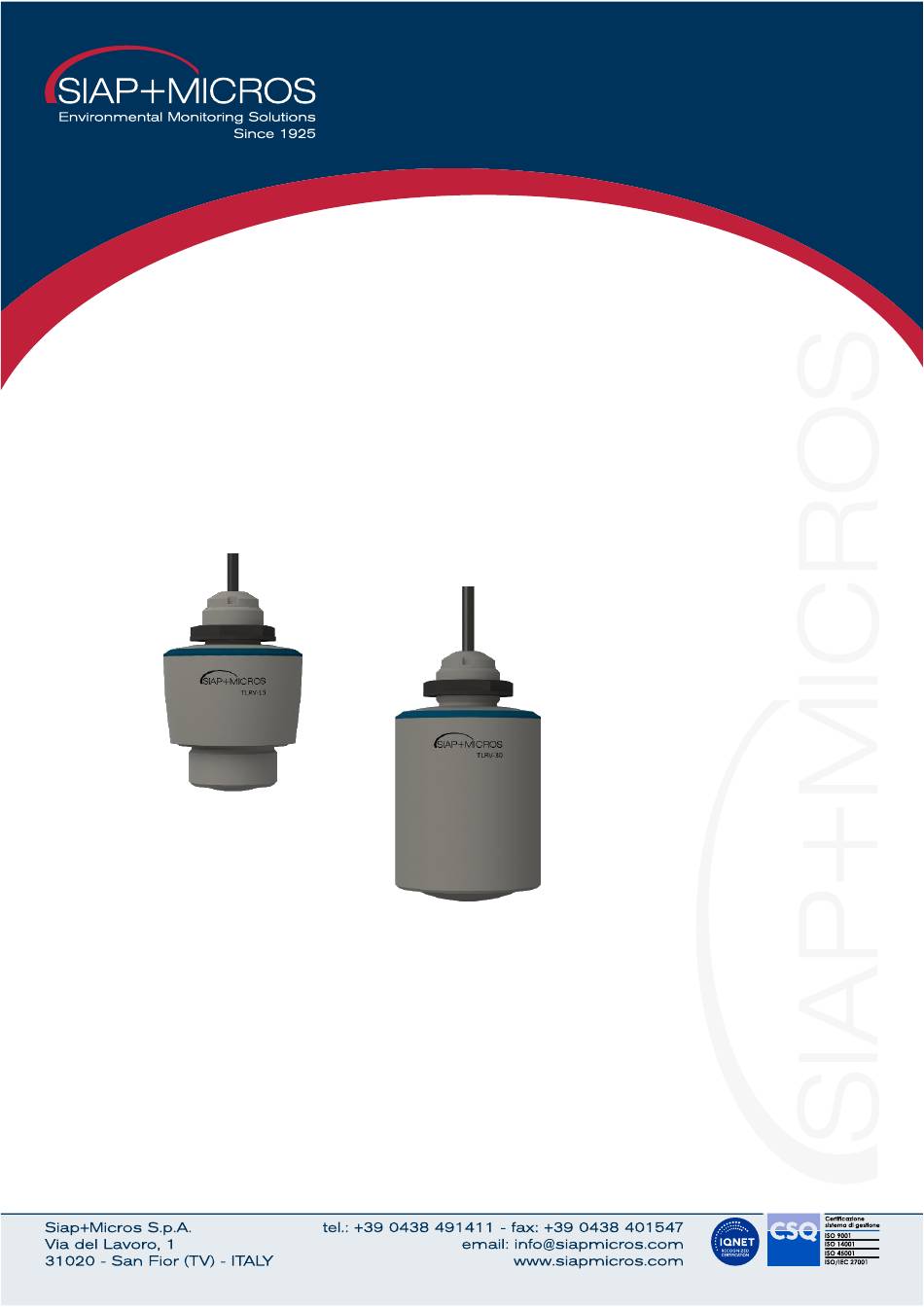

- Page 1 TLRV Radar Level Transducer User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t061-di TLRV.docx Summary Introduction ..............................3 Caratteristiche tecniche ..........................4 Installation and maintenance ........................6 Installation ............................6 Maintenance ............................6 Electrical connection ..........................7 Connector output ..........................7 Connection cable ..........................7 Data reading in serial (RS485 Modbus and SDI-12) ................. 7 4.3.1 RS –... -
Page 3: Introduction
User manual and maintenance t061-di TLRV.docx 1 Introduction TLRV radar technology is the most suitable solution for applications requiring high precision standards of measurement, as TLRV is a very performant device in terms of accuracy and resolution. The measuring principle is affected neither by variations in atmospheric temperature, nor by suspended dust between the sensor and the measured surface, ensuring a very reliable data acquisition even in harsh environmental conditions. -
Page 4: Caratteristiche Tecniche
User manual and maintenance t061-di TLRV.docx 2 Caratteristiche tecniche Measurement performance Transducer W-band (80GHz) Measurement range (TLRV15) 0 ÷ 15 m Measurement range (TLRV30) 0 ÷ 30 m ≤ 2mm Accuracy (current, tension, serial outputs) Resolution 1 mm Operating conditions Temperature -40 ÷... - Page 5 User manual and maintenance t061-di TLRV.docx TLRV-15 TLRV30 25/10/2023 Vers.: 1.0...
-
Page 6: Installation And Maintenance
User manual and maintenance t061-di TLRV.docx Installation and maintenance 3.1 Installation When installing a meteorological station it is necessary to pay attention to the characteristics of the place as the conformation of the land and the proximity to any obstacles can affect the quality of the data that will be collected. -
Page 7: Electrical Connection
User manual and maintenance t061-di TLRV.docx 4 Electrical connection 4.1 Connector output 4÷20mA Modbus SDI-12 output output output n.c. B-RS485 SDI Data +4÷20mA A-RS485 -4÷20mA n.c. 4.2 Connection cable The connection cable supplied with the sensor is made with circular connectors with housing, 4x24 AWG shielded cable and ferrules for connection to the data logger terminals. -
Page 8: Sdi-12 Mode
User manual and maintenance t061-di TLRV.docx Tipo dati: “2 registers swapped float IEEE 754 in the form CDAB where A is the most significant byte of the float and D is the less significant byte of the float (swapped float)”. Register U.M. -
Page 9: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 10: Appropriate Use Of The Equipment
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC.. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 11: Revision History
Version Date Updates 05/06/2023 Current version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice 25/10/2023 Vers.: 1.0...
