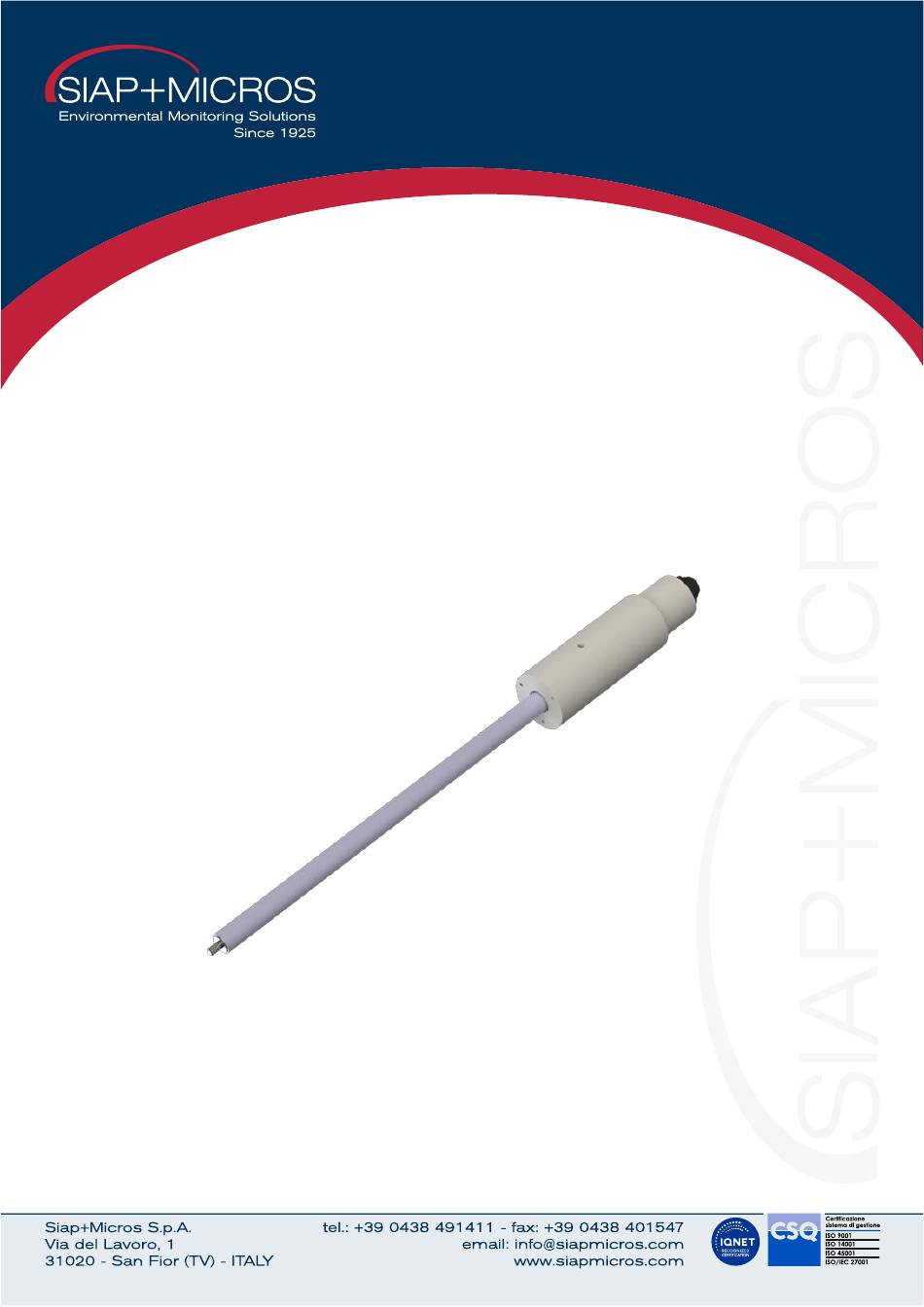

- Page 1 TTT Ground Temperatue Transducer User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t002-di TTT.docx Summary Introduction ..............................3 Caratteristiche tecniche ..........................4 Operation scheme ..........................5 Installation and maintenance ........................6 Installation ............................6 Maintenance ............................6 Electrical connection ..........................7 Connector output ..........................7 Connection cable ..........................7 Read serial data (RS485 Modbus) .................... -
Page 3: Introduction
TTT.docx 1 Introduction TTT is a high-quality temperature sensor that has been manufactured on purpose by Siap+Micros for soil temperature measurement. It is suitable for agrometeorological applications and generally flexible to be used in every environmental monitoring. The sensor is extremely accurate and it is composed of a 30 cm long graduated plastic rod, equipped with a sensing element mounted on the rod edge. -
Page 4: Caratteristiche Tecniche
User manual and maintenance t002-di TTT.docx 2 Caratteristiche tecniche Measurement performance Transducer Pt100 1/3 DIN 43760 Measurament range -30 ÷ 60 °C Accuracy (natural output) 1/3 DIN 43760 Accuracy (current, tension, serial outputs) 1/3 DIN 43760 ± 0.1 Resolution 0.03 Operating conditions Temperature -30 ÷... -
Page 5: Operation Scheme
User manual and maintenance t002-di TTT.docx Dimension: H1 – maximum height: 450 mm (TTT-N) 500 mm (TTT-I/V/S) H2 – stainless-steel tube height: 300 mm D1 – fixing diameter: 40 mm D2 – maximum diameter : 50 mm Element: A – sensor shaft with possible electronics B –... -
Page 6: Installation And Maintenance
TTT.docx Installation and maintenance 3.1 Installation The Siap+Micros Soil Temperature sensor is made up of a stem and a rod to be buried where, at the top, here is the temperature probe embedded in a stainless steel tip. The part to be buried, in its standard version, is made of PVC and has a length of 30 cm, other lengths can be made on request, in order to meet monitoring needs. -
Page 7: Electrical Connection
User manual and maintenance t002-di TTT.docx 4 Electrical connection 4.1 Connector output Naturale output I / V / S output +4÷20 mA ; +0÷2 Vdc B-RS485 -4÷20 mA ; -0÷2 Vdc A-RS485 4.2 Connection cable The connection cable supplied with the sensor is made with circular connectors with housing, 4x24 AWG shielded cable and ferrules for connection to the data logger terminals. -
Page 8: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 9: Appropriate Use Of The Equipment
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 10: Revision History
Version Date Updates 05/06/2023 Current version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice 26/10/2023 Vers.: 1.0...
