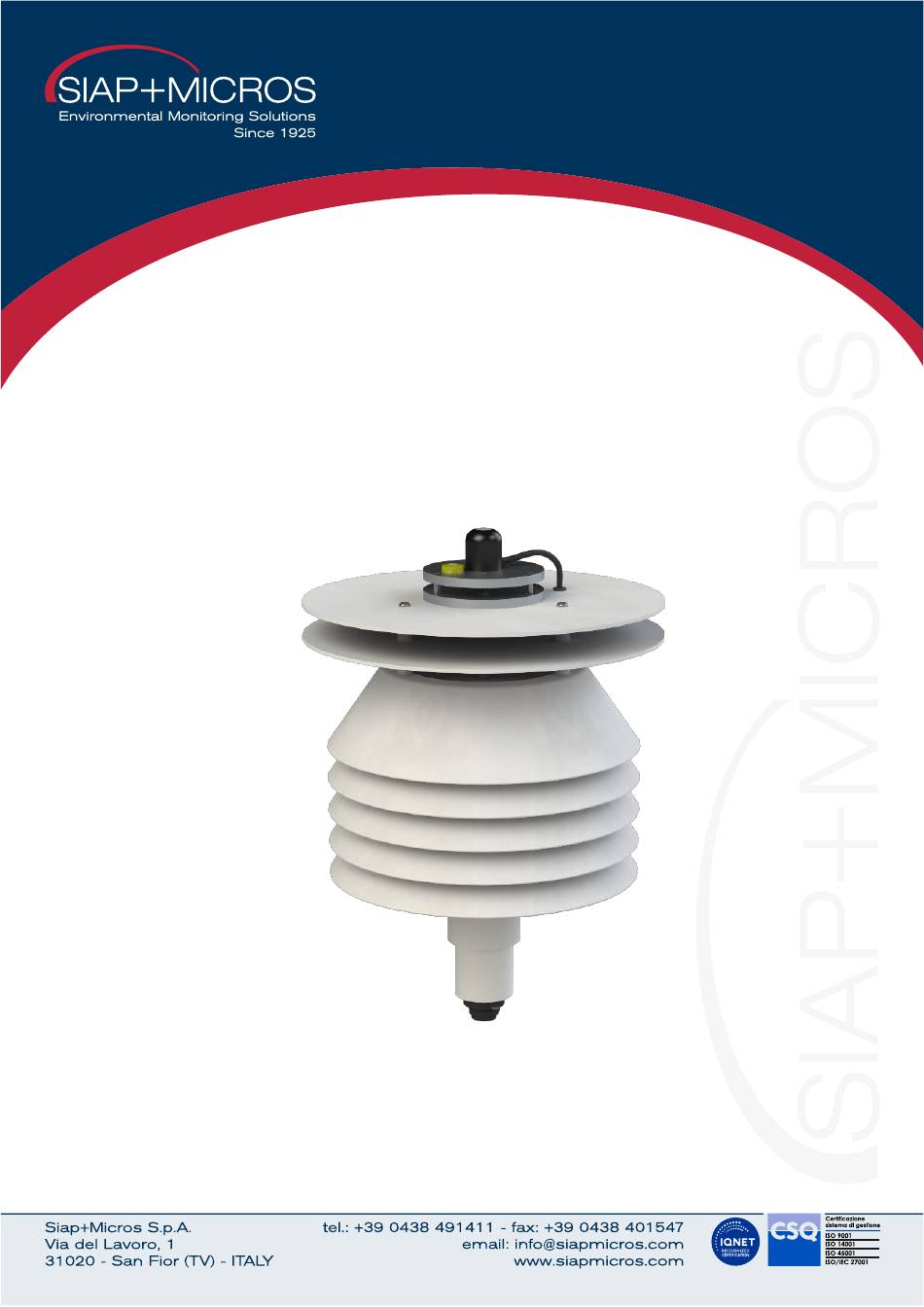

- Page 1 TTEPRHSO Transducer of Solar Radiation, Temperature and RH% air User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t026-di TTEPRHSO.docx Summary Introduction ..............................3 Technical specificaion ..........................4 Installation and maintenance ........................6 Installation ............................6 Maintenance ............................6 Electrical connection ..........................7 Connector output ..........................7 Connection cable ..........................7 Data readinding in serial (RS485 Modbus and SDI-12) ..............7 4.3.1 RS485 Modbus mode ........................ -
Page 3: Introduction
User manual and maintenance t026-di TTEPRHSO.docx 1 Introduction TTEPRHSO is a compact sensor with extreme versatility that allows for the simultaneous measurement of air temperature, relative humidity and global solar radiation thanks to the coexistence of the three relative transducers inside. The remarkable performances are guaranteed by the high levels of accuracy and the long- term stability makes the recalibrations of each single sensitive component less necessary and frequent. -
Page 4: Technical Specificaion
User manual and maintenance t026-di TTEPRHSO.docx 2 Technical specificaion Measurement performance Transducer Pt100 1/3 DIN 43760 Measurement range -30 ÷ 60 °C Accuracy (natural output) 1/3 DIN 43760 Resolution 0.03 Relative Humidity [%] Transducer Capacitive Measurement range 0 ÷ 100 % Accuracy (natural output) ±... - Page 5 User manual and maintenance t026-di TTEPRHSO.docx Dimension: H1 – maximum height: ~ 340 mm D1 – maximum diameter: 240 mm Element: A – sensor stem B – anti UV plastic protection C – relative humidity sensor D – temperature sensor E –...
-
Page 6: Installation And Maintenance
User manual and maintenance t026-di TTEPRHSO.docx Installation and maintenance 3.1 Installation The sensor must be installed on special brackets which distance it sufficiently from reflected heat sources (for example the same support pole of the station) which could influence its correct measurement. -
Page 7: Electrical Connection
User manual and maintenance t026-di TTEPRHSO.docx 4 Electrical connection 4.1 Connector output TTEPRHSO-S TTEPRHSO-D RS485 SDI-12 A-RS485 A-RS485 B-RS485 B-RS485 +0÷2 Vdc SDI-12 (data) +4÷20 mA +4÷20 mA -0÷2 Vdc -4÷20 mA -0÷20 mA SDI-12 (Vcc) 4.2 Connection cable The connection cables supplied with the sensor are made with circular connectors with housing, 8x0.22 mmq cable, shielded and with ferrules for connection to the data logger terminals. -
Page 8: Sdi-12 Mode
User manual and maintenance t026-di TTEPRHSO.docx Data type: “2 registers swapped float IEEE 754 in the form CDAB where A is the most significant byte of the float and D is the less significant byte of the float (swapped float)”. Registers Units Reg. -
Page 9: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 10: Appropriate Use Of The Equipment
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 11: Revision History
Version Date Updates 05/06/2023 Current version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice 26/10/2023 Vers.: 1.0...
