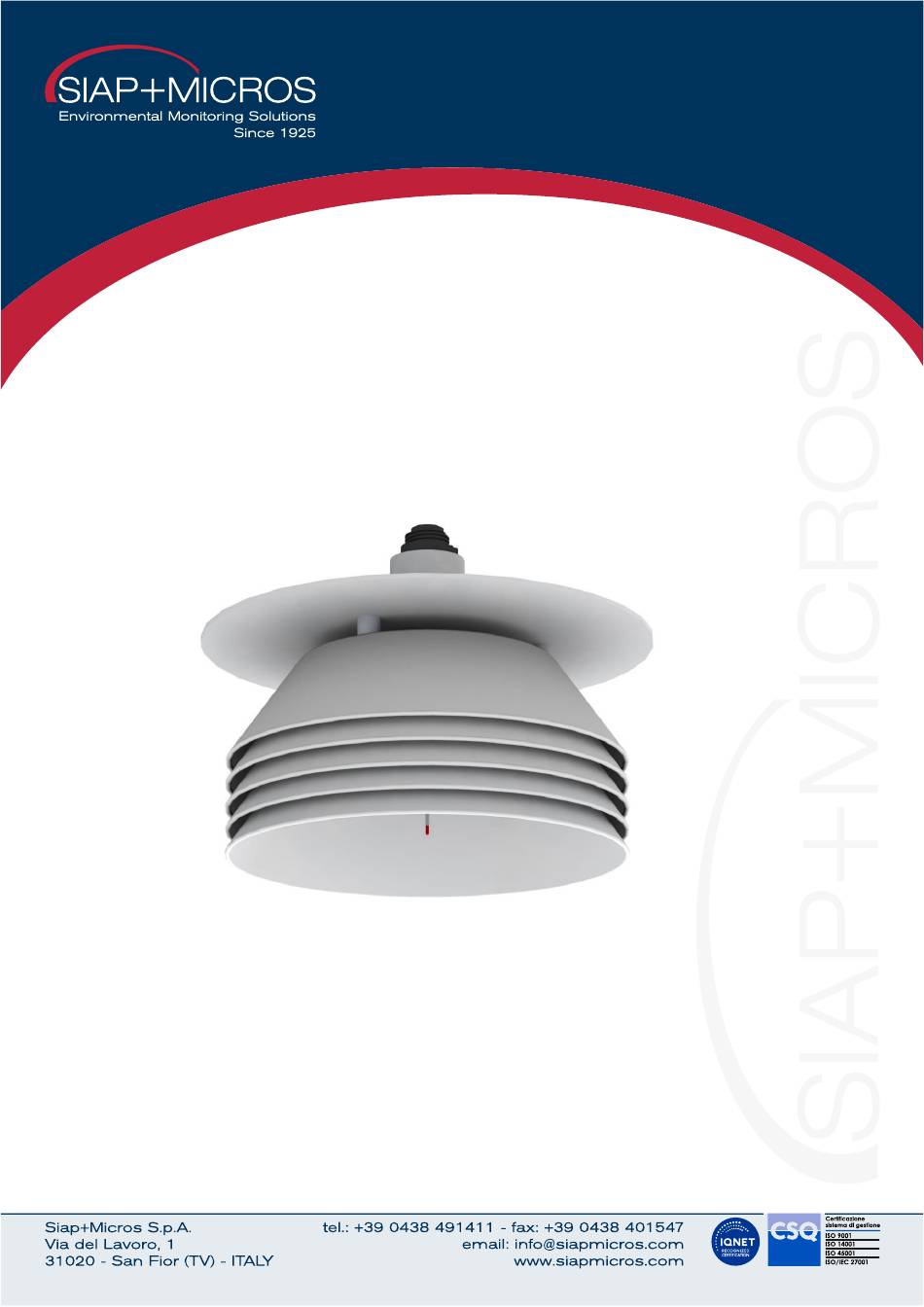

- Page 1 TTS Surface Temperature Transducer User Manual and maintenance...
-
Page 2: Table Of Contents
User manual and maintenance t012-di TTS.docx Summary Introduction ..............................3 Technical specificaion ..........................4 Operation scheme ..........................5 Installation and maintenance ........................6 Installation ............................6 Maintenance ............................6 Electrical connection ..........................7 Connector output ..........................7 Connection cable ..........................7 Reading data in serial communication (RS485 Modbus) .............. -
Page 3: Introduction
User manual and maintenance t012-di TTS.docx 1 Introduction TTS is a sensor which specifically allows to measure the temperature above the soil, preferably at a height of 10 cm, and it is typically used for agrometeorological monitoring. It is besides very versatile being suitable for many different applications, even in harsh and unfavorable environmental conditions. -
Page 4: Technical Specificaion
User manual and maintenance t012-di TTS.docx 2 Technical specificaion Measurement performance Transducer Pt100 1/3 DIN 43760 Measurement range -30 ÷ 60 °C Accuracy (natural output) 1/3 DIN 43760 Accuracy (current, tension, serial outputs) 1/3 DIN 43760 ± 0.1 Resolution 0.03 Operating conditions Temperature -30 ÷... -
Page 5: Operation Scheme
User manual and maintenance t012-di TTS.docx Dimension: H1 – maximum hight: 180 mm D1 – maximum diameter: 240 mm D2 - shank diameter for fixing: 40 mm Element: A – sensing element Pt100 Weight: 1 kg 2.1 Operation scheme The sensing element is a 4-wire Pt100 placed at the end of the sensor directly in contact with the ground surface. -
Page 6: Installation And Maintenance
User manual and maintenance t012-di TTS.docx Installation and maintenance 3.1 Installation The sensor must be placed in direct contact with the ground, free from elements that influence the correct measurement of the temperature and installed on special arms that distance it sufficiently from reflected heat sources (for example the same support pole of the station) that can influence it the correct measure. -
Page 7: Electrical Connection
User manual and maintenance t012-di TTS.docx 4 Electrical connection 4.1 Connector output Natural output I / V / S / SDI12 output +4÷20 mA ; +0÷2 Vdc B-RS485 -4÷20 mA ; -0÷2 Vdc A-RS485 4.2 Connection cable The connection cable supplied with the sensor is made with circular connectors with housing, 4x24 AWG shielded cable and ferrules for connection to the data logger terminals. -
Page 8: Generic Information
The qualitative level of our instruments is the result of a continuous evolution of the product. This may cause differences between what is reported in the manual and the instrument you have purchased. Siap+Micros S.p.A. reserves the right to modify without notice technical specifications and dimensions to adapt them to the needs of the product. -
Page 9: Appropriate Use Of The Equipment
The instrument is not classified suitable (according to Directive 2014/34/EU) for use in atmospheres with potential explosion risk pursuant to Directive 99/92/EC. SIAP+MICROS strives to minimize health and safety risks in all phases of the instrument's life, including installation, use, maintenance, decommissioning and disposal. -
Page 10: Revision History
Version Date Updates 05/06/2023 Current version of the document. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice 26/10/2023 Vers.: 1.0...
