Renesas DA914 Series Quick Manual

UM-PM-061
Quick Guide DA914x Evaluation Board
1 Quick Start
This guide helps to get started with the DA914x Customer Evaluation Board (EVB).
Before using the EVB it is recommended to verify that the four banana plugs are properly tightened
(150N.cm max. recommended), as they can come loose during shipping.
The floor plan of the EVB in
default positions.

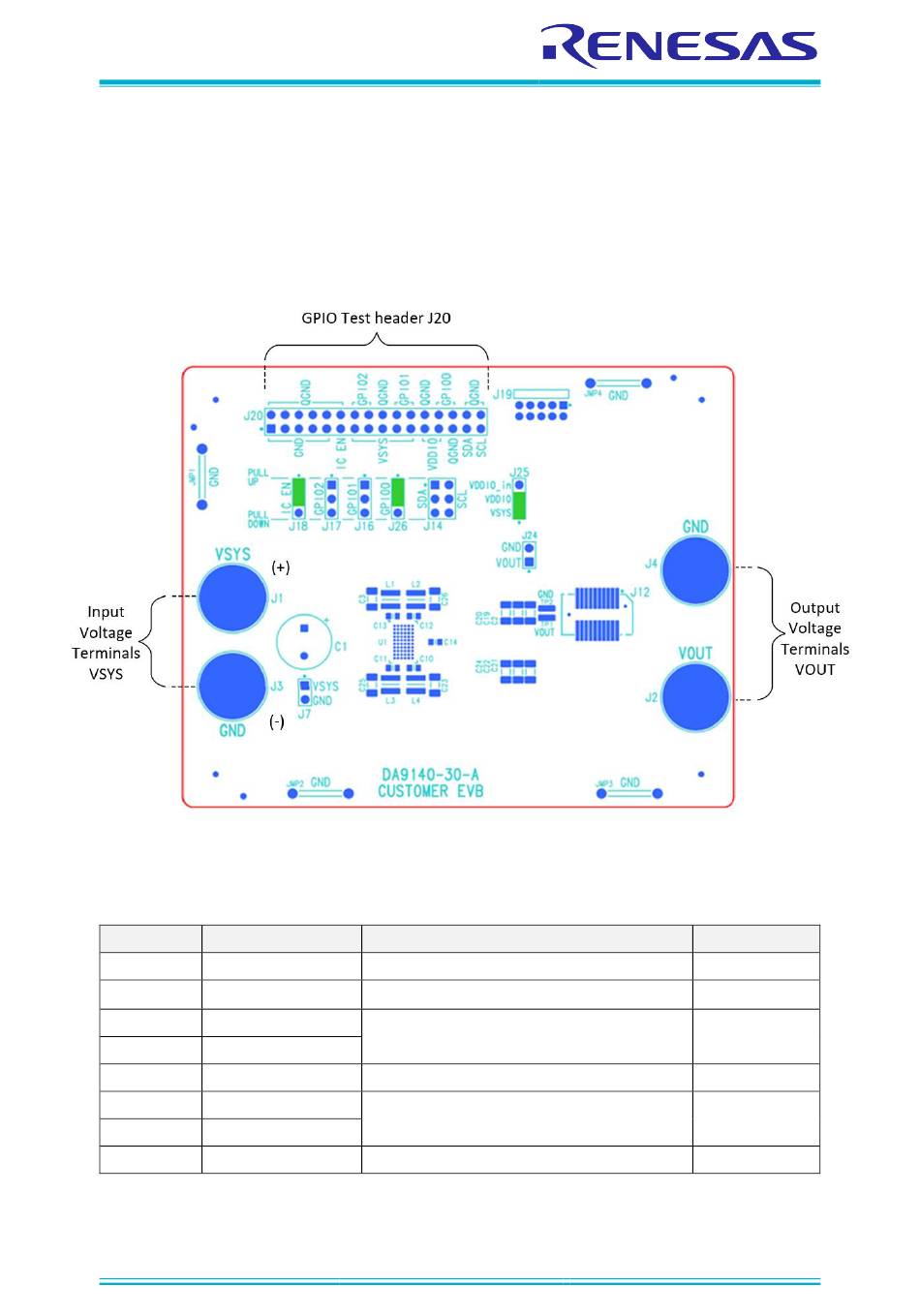

Figure 1: DA914x-30 Jumpers and Headers Location
The default jumper positions from the table below are highlighted green in
Table 1: Jumpers and Headers Overview
Connection Description
J18 IC_EN
J25 VSYS - VDDIO
J1 VSYS
J3 GND
J7 VSYS sense
J2 VOUT
J4 GND
J24 VOUT sensing
Application Note
CFR0014
Figure 1 helps to locate the input and output plugs as well as the jumper
Information
Jumper fitted to pull-up position
Jumper fitted to VDDIO - VSYS position
Supply from PSU, 3.3V - 20A recommended
PSU remote sensing
Buck converter output
For probing or eLoad remote sensing
Revision 1.1
1 of 2
Figure 1 above.
Location
Left of EVB
Right of EVB
Left of EVB
Left of EVB
Right of EVB
Middle of EVB
15-Feb-2023
© 2023 Renesas Electronics
