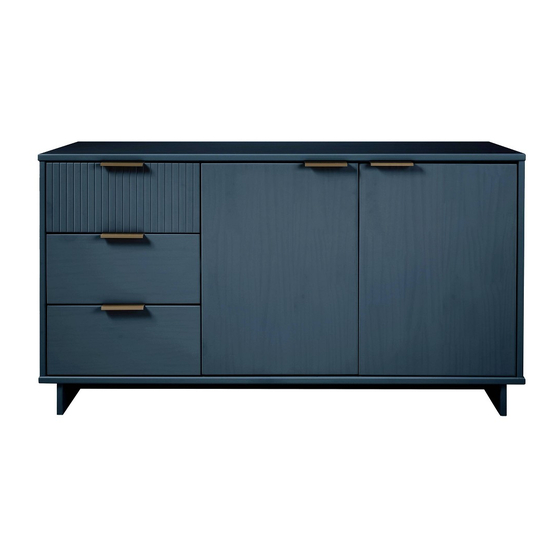

Manhattan Comfort Granville 55.07 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SB-500
REV. 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Granville 55.07 and is the answer not in the manual?

Questions and answers

Related Manuals for Manhattan Comfort Granville 55.07

Summary of Contents for Manhattan Comfort Granville 55.07

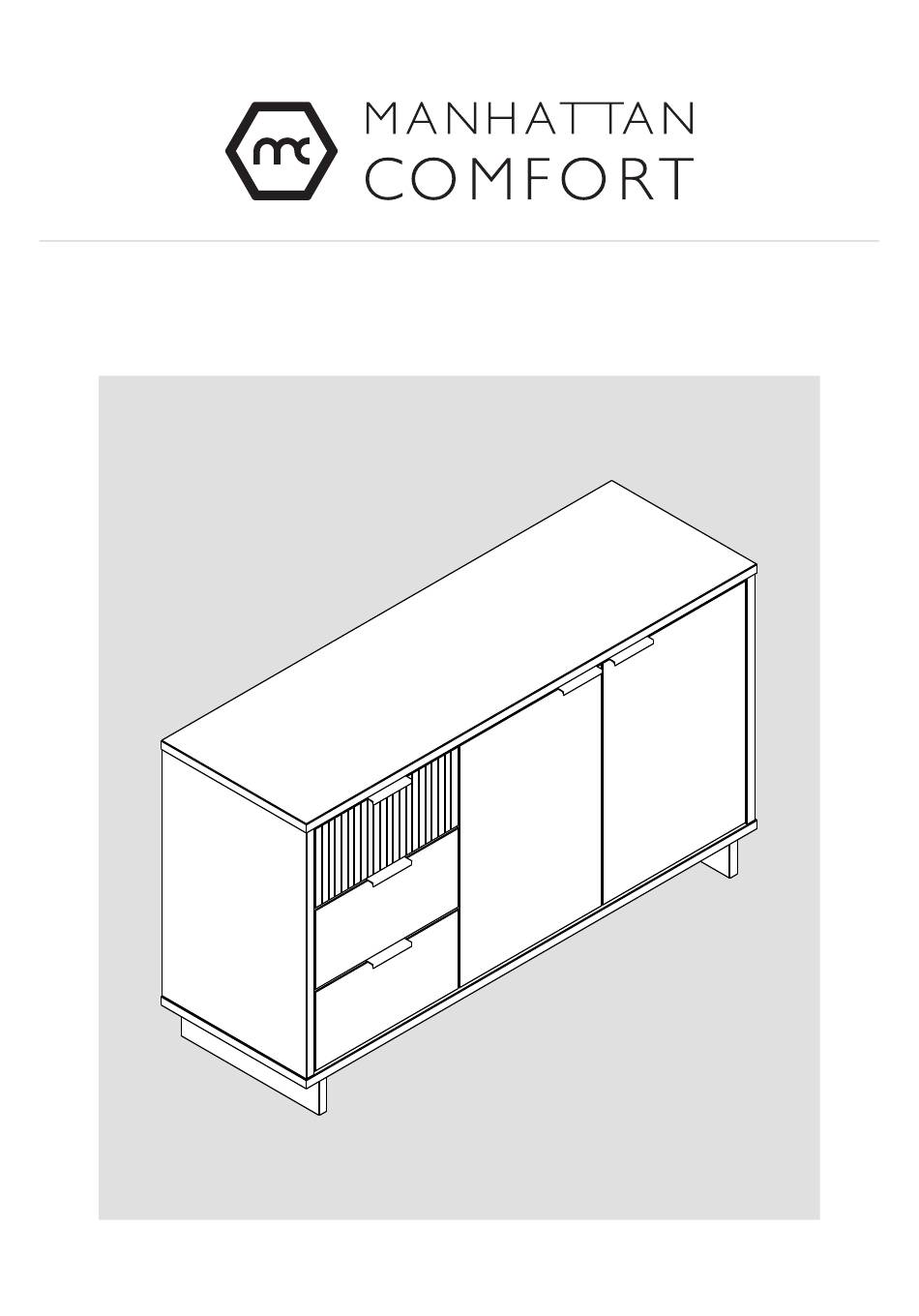

  • Page 1 SB-500 REV. 01...
  • Page 2 STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: •Do not throw away packaging materials until assembly is complete. •Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •Proper assembly requires two people.
  • Page 3 Included in this package: Top Panel Back Panel Side Back Panel Left Side Panel 66Lb Right Side Panel Division Panel Shelf Panel Smaller Division Door Bottom Panel Feet Crossbar Foot Top Drawer Front Drawer Left Side Drawer Right Side Drawer Back Drawer Bottom Top Drawer Support Drawer Front...
  • Page 4 Included in this package: D x 1 A x 36 B x 5 C x 2 #2196 #23857 #PX.017 #CA.002 F x 30 H x 10 I x 4 E x 12 G x 6 #11170 #284 #10385 #292 TIPOVER RESTRAINT KIT K x 30 L x 44...
  • Page 5 Fix the hardware C to part 11 with screw L. Then, attach the parts 11-12 with the hardware A. A x 4 C x 2 L x 4 Fix the part 11 to part 12 with screw L. L x 4...
  • Page 6 Fix the part 10 to parts 11-12 with screw G and tool D. G x 6 To compose the next semi-assembly, place the hardware F to parts 05-06-07. F x 9...
  • Page 7 Attach the parts 05-06-08 to part 07 with hardware #23857. Then, apply the hardware #10386 and lock it according the example below. Pay attention in detail to ensure correct assembling. A x 6 K x 9 Attach the parts 05-06-08 from last step to part 10 with hardware A. Then, fix them with screw H.
  • Page 8 Attach the parts 04 to part 10 with hardware A. Then, fix it with screw H. Pay attention in detail to ensure correct assembling. H x 3 A x 2 Fix the hardware F to part 01. F x 9...
  • Page 9 Attach the part 01 to parts 04-05-06 with hardware A. Then, apply the hardware K and lock it according the example below. Pay attention in detail to ensure correct assembling. A x 6 K x 9 Position parts 02-03 correctly. Then, fix them with the hardware M.
  • Page 10 Position the hardware O to part 02-03. Then, fix them with the hardware M. M x 13 O x 13 Place the hardware Q to part 09. Then, fix them with screw L. L x 4 Q x 2...
  • Page 11 The part 06 has pre-set holes that will help you on assembling. Position the part 09 to the pre-set holes. Pre-set holes The pre-set holes of part 06 must match with the hinge adjustment holes. So, place and fix the screw L to hinges adjustment holes according to the detail. Hinges adjustment holes L x 4...
  • Page 12 Place and fix the screw L to the second hinges holes, locking it according to the detail. Second hinges holes L x 4 Place the hardware B to part 09. Then, fix it with screw J. Place the hardware R. R x 1 J x 2 B x 1...
  • Page 13 Place the hardware P to part 09. Then, fix them with screw L. L x 4 P x 2 The part 05 has pre-set holes that will help you on assembling. Position the part 09 to the pre-set holes. Pre-set holes...
  • Page 14 The pre-set holes of part 05 must match with the hinge adjustment holes. So, place and fix the screw #1616 to hinges adjustment holes according to the detail. Hinges adjustment holes L x 4 Place and fix the screw L to the second hinges holes, locking it according to the detail.
  • Page 15 Place the hardware B to part 09. Then, fix it with screw J. Place the hardware R. J x 2 B x 1 R x 1 Place the screw F to the parts 13-19. F x 12...
  • Page 16 Specially to part 13, fix the part 18 with screw I. Please, start by fixing the ends. Then fix the intermediate screws. I x 4 Attach the parts 13 to parts 14-15 with hardware A. Then, apply the hardware K and lock it according the example below. Equaly, the same process is apllied to parts 19-14-15.
  • Page 17 Apply the part 17 in the groove of the parts 14-15. TOP DRAWER Attach the part 16 to parts 14-15-17. Then, fix the parts 14-15 to part 16 with screw E. TOP DRAWER E x 12...
  • Page 18 Apply the hardware B to parts 13-19. Then, fix them with screw J. TOP DRAWER J x 6 B x 3 Before to fix the Drawers, you must extract the full extension of the Slides, by pulling off. Then, pay attention to the correctly holes according to the next steps.
  • Page 19 The Drawers have pre-set holes to help you on fixing them. Set the Drawer on correct position and pre-set holes, carefully. Drawer pre-set holes ATTENTION: extremely necessary a second person helping. Firstly, make sure that the Drawer is correctly positioned according to the detail The correct holes of the Slides must match with the pre-set holes of the Drawers.
  • Page 20 Apply the same fixing Drawers process to the others drawers. L x 8 You must install the Tipover Restraint Kit (N) provided, in the rear side of the furniture. Position the hardwares #18256EXP and #20522. Fix them with screw #11179. TIPOVER RESTRAINT KIT #2610 x 1...
  • Page 21 Approach the furniture as close as possible to the wall. Then, mark with a pencil where you should drill the wall to put in the hardware. Use a Ø8mm drill bit to drill the wall. Put in the hardware #16973 to the hole that you drilled on the wall. Then, position the hardwares #18256EXP and #20522.
  • Page 22 WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This war - ranty is valid in the United States of America and Canada.
