Summary of Contents for Manhattan Comfort DUMBO DR002

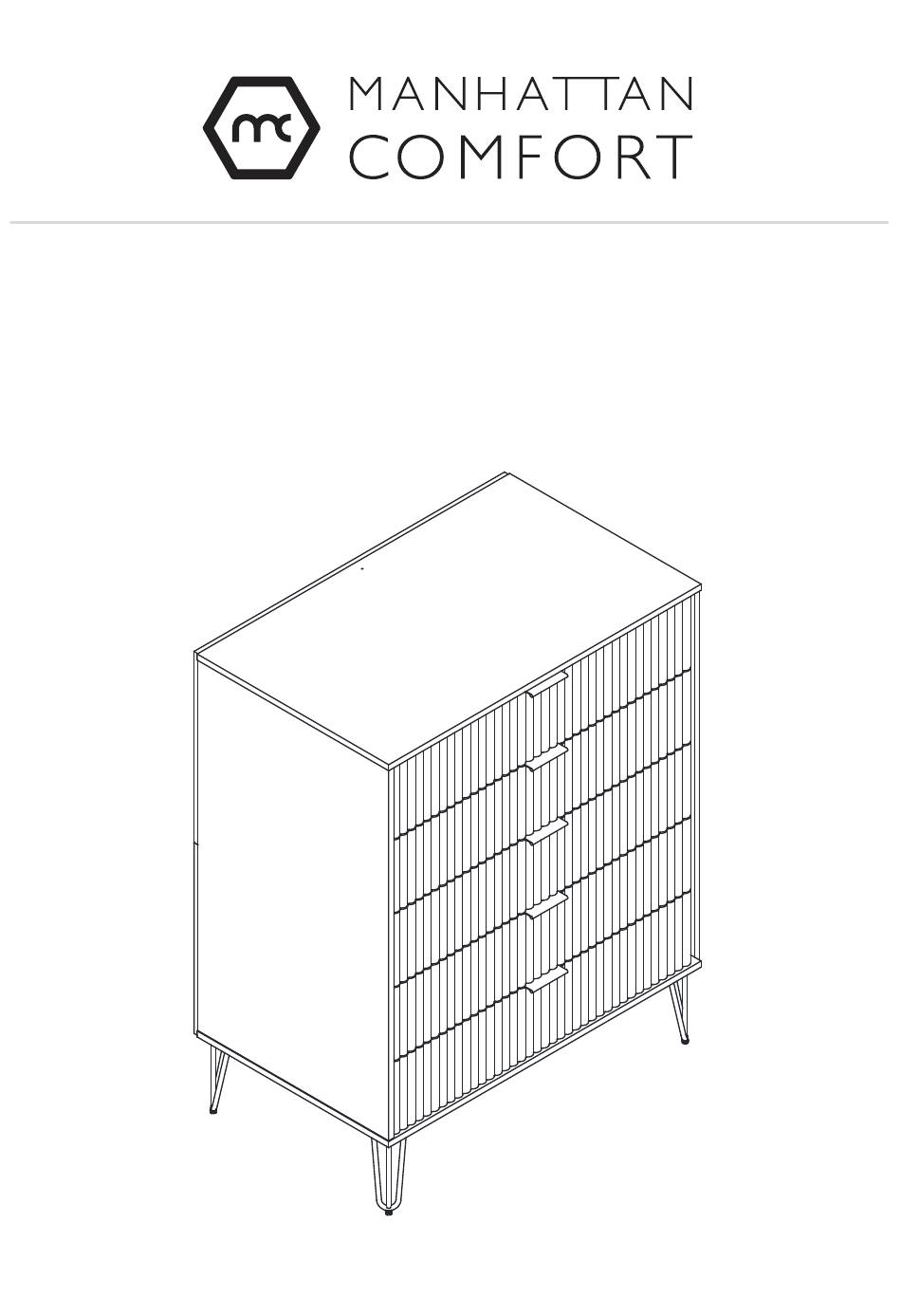

- Page 1 DR002 V.08012024...
-
Page 2: For Best Results
STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •... -
Page 3: Included In This Package
Included in this package: A: TOP (1) B: BOTTOM (1) C: LEFT END (1) D: RIGHT END (1) E: CONNECTING BOARD (1) F: BACK (2) G: DRAWER FRONT (5) H: DRAWER SIDE LEFT (5) J: DRAWER SIDE RIGHT (5) L: DRAWER BACK (5) M: DRAWER BOTTOM (5) O: DRAWER BOTTOM SUPPORT (5) P: LEG (4) -
Page 4: Hardware Identification
Hardware Identifi cation Page 4 DR002... - Page 5 Page 5 DR002...
- Page 6 Step 1 Insert four WOOD DOWELS (5) to the BOTTOM (B). ◆ Attach the BOTTOM (B) to the ENDS ( C and D), fasten the BOTTOM (B) by using four BOLTS (1). ◆ Page 6 DR002...
- Page 7 Step 2 ◆ Slot the CONNECTING BOARD (E) to the ENDS (C and D). Page 7 DR002...
- Page 8 Step 3 Attach the two CONNECTING TUBES (Q) to ENDS (C and D) by using eight BOLTS (2). ◆ Page 8 DR002...
- Page 9 Step 4 Insert four WOOD DOWELS (5) to the TOP (A). ◆ Attach the TOP (A) to the ENDS (C and D), tighten four PLASTIC CAM LOCKS. ◆ Page 9 DR002...
- Page 10 Step 5 ◆ Fasten the two CONNECTING TUBES (Q) to the TOP (A) by using four BOLTS (3). Page 10 DR002...
- Page 11 Step 6 Fasten two BACKS (F) to the TOP (A), ENDS (C and D) and the BOTTOM (B) ◆ by using twenty BOLTS (1). You should start each BOLT a few turns before completely tightening any of them. ◆ Page 11 DR002...
- Page 12 Step 7 ◆ Fasten the LEGS (P) to the BOTTOM (B) by using sixteen BOLTS (2). Page 12 DR002...
- Page 13 Step 8 Attach the DRAWER SIDES (J and H) to the DRAWER FRONT (G), ◆ slide the PLASTIC CONNECTIONS to the grooves. ◆ Slot the DRAWER BOTTOM SUPPORT (O) to the DRAWER FRONT (G). Page 13 DR002...
- Page 14 Step 9 Slide the DRAWER BOTTOM (M) into the grooves, in the DRWAER SIDES (J and H), ◆ and the DRAWER FRONT (G). Fasten the DRAWER BACK (L) to the DRAWER SIDES (J and H) ◆ and the DRAWER BOTTOM SUPPORT (O) by using six BOLTS (1). Repeat the Step 8 and Step 9 on the other drawers..
- Page 15 Step 10 ◆ Use two BOLTS (2) to fasten the PULL (4) to DRAWER FRONT (G). Repeat the same on the other drawers. Page 15 DR002...
- Page 16 Step 11 To insert the DRAWER into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the unit and push the drawer into the unit. Before the drawer is fully inserted, please make sure the interlock pins on ◆...
- Page 17 Step 12 Open the FURNITURE TIPPING RESTRAINT KIT (96) and fasten the SAFETY STRAP to the TOP (A). Use the SHORT SCREW through the hole in the strap and into the top surface of the TOP (1). ◆ Place your unit in its final location. NOTE: The following instructions show your unit being fastened to a wall stud.
- Page 18 Step 13 1st- With your pencil, strike a mark through the center of the hole in the SAFETY STRAP. 2nd- Drill a 3/8" hole on the mark. 3rd- While you squeeze the wings together, gently tap the WALL ANCHOR from the FURNITURE ◆...
-
Page 19: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
