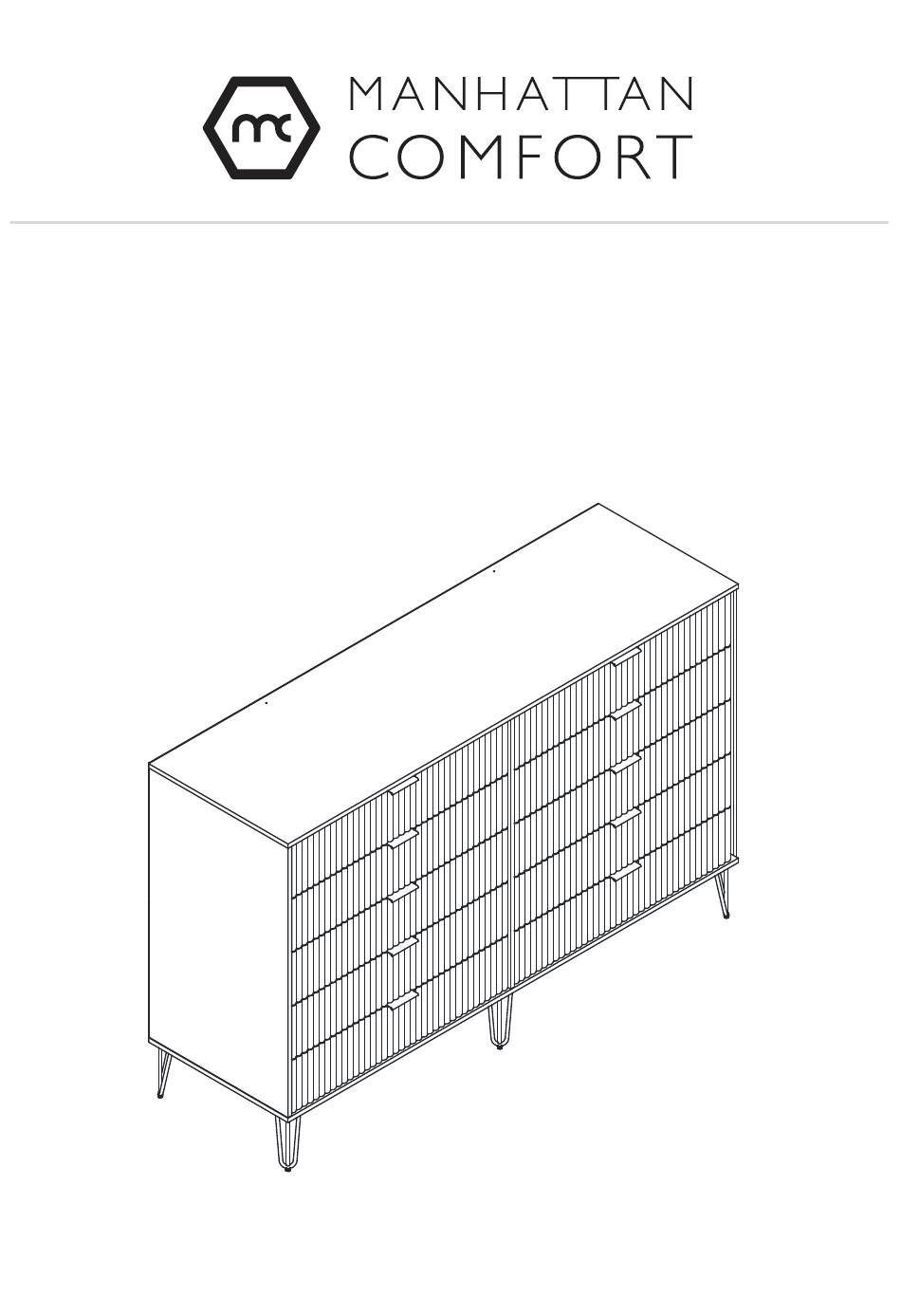

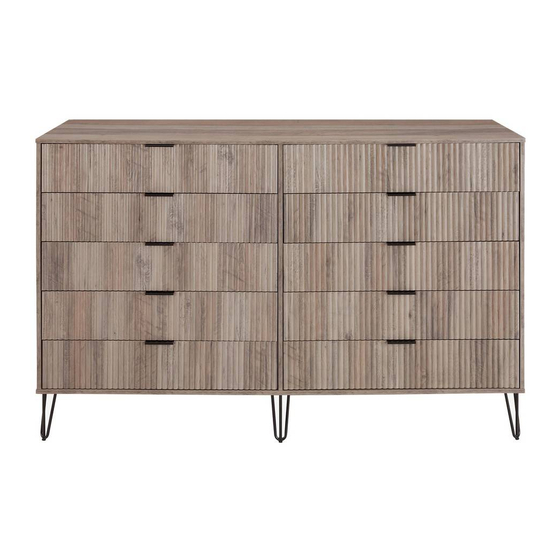

- Page 1 DR004 V.10012024...
-
Page 2: For Best Results
STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •... -
Page 3: Included In This Package
Included in this package: A: TOP (1) B: BOTTOM (1) C: LEFT END (1) D: RIGHT END (1) E: MIDDLE UPRIGHT (1) F: BACK (2) G: DRAWER FRONT (10) H: DRAWER SIDE LEFT (10) J: DRAWER SIDE RIGHT (10) L: DRAWER BACK (10) M: DRAWER BOTTOM (10) O: DRAWER BOTTOM SUPPORT (10) P: LEG (6) -
Page 4: Hardware Identification
Hardware Identifi cation Page 4 DR004... - Page 5 Page 5 DR004...
- Page 6 Step 1 Insert six WOOD DOWELS (5) to the BOTTOM (B). ◆ Attach the BOTTOM (B) to the ENDS ( C and D) and the MIDDLE UPRIGHT (E), ◆ fasten the BOTTOM (B) by using six BOLTS (1). Page 6 DR004...
- Page 7 Step 2 Attach the four CONNECTING TUBES (Q) to the ENDS (C and D) and the MIDDLE UPRIGHT (E), ◆ by using sixteen BOLTS (2). Page 7 DR004...
- Page 8 Step 3 Insert six WOOD DOWELS (5) to the TOP (A). ◆ Attach the TOP (A) to the ENDS (C and D) and the MIDDLE UPRIGHT (E), ◆ tighten six PLASTIC CAM LOCKS. Page 8 DR004...
- Page 9 Step 4 ◆ Fasten four CONNECTING TUBES (Q) to the TOP (A) by using eight BOLTS (3). Page 9 DR004...
- Page 10 Step 5 Fasten two BACKS (F) to the TOP (A), the ENDS (C and D), the MIDDLE UPRIGHT (E) ◆ and the BOTTOM (B) by using thirty BOLTS (2). You should start each BOLT a few turns before completely tightening any of them. ◆...
- Page 11 Step 6 ◆ Fasten the LEGS (P) to the BOTTOM (B) by using twenty four BOLTS (2). Page 11 DR004...
- Page 12 Step 7 Attach the DRAWER SIDES (J and H) to the DRAWER FRONT (G), ◆ slide the PLASTIC CONNECTIONS to the grooves. ◆ Slot the DRAWER BOTTOM SUPPORT (O) to the DRAWER FRONT (G). Page 12 DR004...
- Page 13 Step 8 Slide the DRAWER BOTTOM (M) into the grooves, in the DRAWER SIDES (J and H), ◆ and the DRAWER FRONT (G). Fasten the DRAWER BACK (L) to the DRAWER SIDES (J and H) ◆ and the DRAWER BOTTOM SUPPORT (O) by using six BOLTS (1). Repeat the Step 7 and Step 8 on the other drawers.
- Page 14 Step 9 ◆ Use two BOLTS (2) to fasten the PULL (4) to the DRAWER FRONT (G). Repeat the same on the other drawers. Page 14 DR004...
- Page 15 Step 10 To insert the DRAWER into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the unit and push the drawer into the unit. Before the drawer is fully inserted, please make sure the interlock pins on ◆...
- Page 16 Step 11 Open the FURNITURE TIPPING RESTRAINT KIT (96) and fasten the SAFETY STRAP to the TOP (A). Use the SHORT SCREW through the hole in the strap and into the top surface of the TOP (1). ◆ Place your unit in its final location. NOTE: The following instructions show your unit being fastened to a wall stud.
- Page 17 Step 12 1st- With your pencil, strike a mark through the center of the hole in the SAFETY STRAP. 2nd- Drill a 3/8" hole on the mark. 3rd- While you squeeze the wings together, gently tap the WALL ANCHOR from the FURNITURE ◆...
-
Page 18: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
