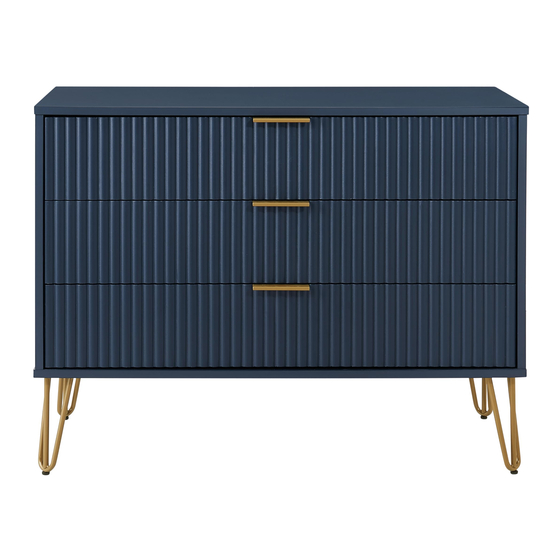

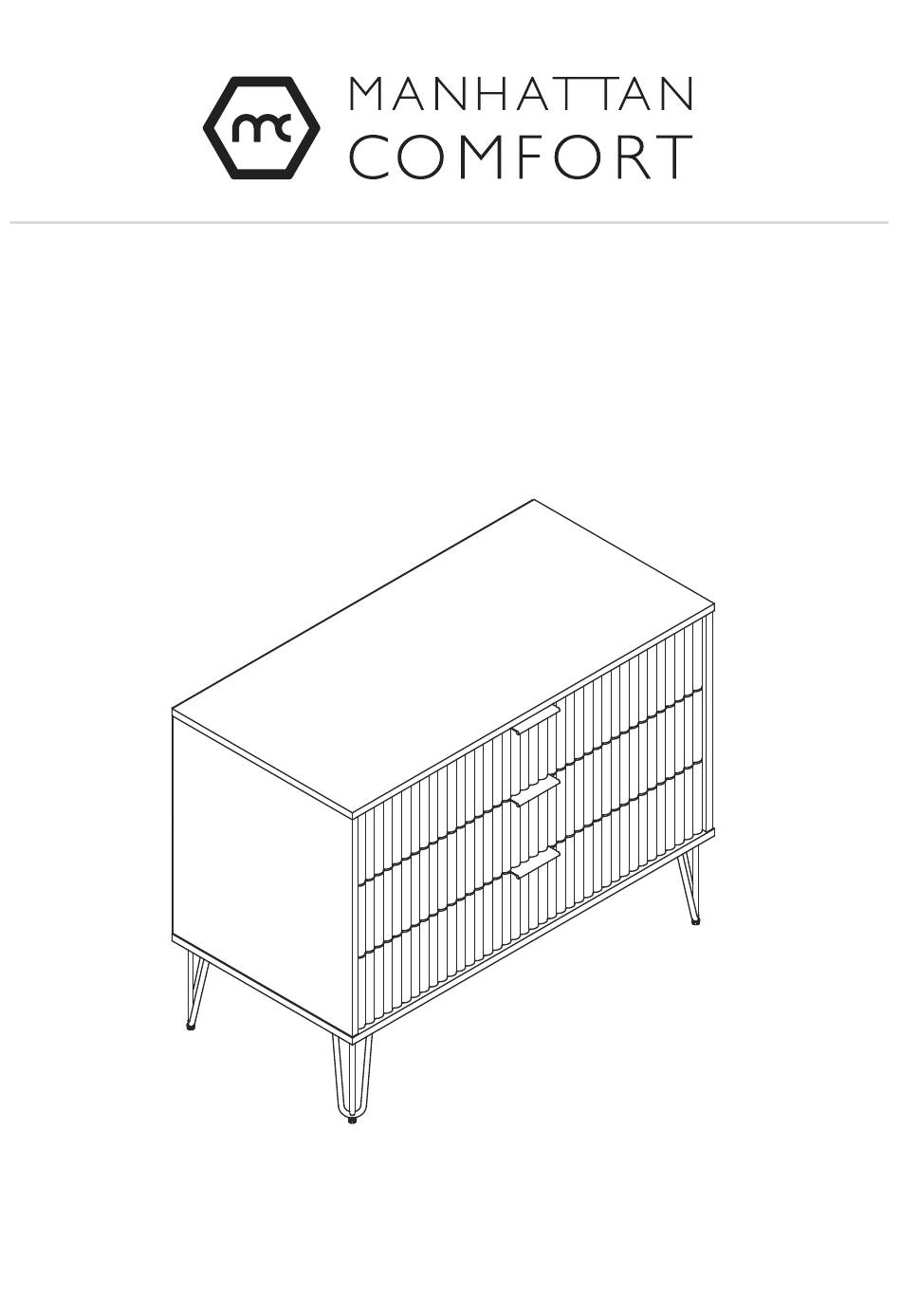

- Page 1 DR001 V.06012024...
-
Page 2: For Best Results
• Assemble item on a soft surface, such as cardboard or carpet, to protect finish. • Proper assembly requires two people. Support Site View our assembly video online: WWW.MANHATTANCOMFORT.COM Stuck? Question? We are here to help. tel: 908-888-0818 e-mail: help@manhattancomfort.com Page 2 DR001... -
Page 3: Included In This Package
E: BACK (2) X: DRAWER FRONT (3) R: DRAWER SIDE LEFT (3) S: DRAWER SIDE RIGHT (3) U: DRAWER BACK (3) M: DRAWER BOTTOM (3) O: DRAWER BOTTOM SUPPORT (3) P: LEG (4) Q: CONNECTING TUBE (2) Page 3 DR001... -
Page 4: Hardware Identification
Hardware Identifi cation Page 4 DR001... - Page 5 Page 5 DR001...
- Page 6 Step 1 Insert four WOOD DOWELS (5) to the BOTTOM (B). ◆ Attach the BOTTOM (B) to the ENDS ( C and D), fasten the BOTTOM (B) by using four BOLTS (1). ◆ Page 6 DR001...
- Page 7 Step 2 ◆ Attach the two CONNECTING TUBE (Q) to ENDS (C and D) by using eight BOLTS (2). Page 7 DR001...
- Page 8 Step 3 Insert four WOOD DOWELS (5) to the TOP (A). ◆ Attach the TOP (A) to the ENDS (C and D), tighten four PLASTIC CAM LOCKS. ◆ Page 8 DR001...
- Page 9 Step 4 ◆ Fasten the two CONNECTING TUBE (Q) to the TOP (A) by using four BOLTS (3). Page 9 DR001...
- Page 10 Fasten the BACKS (E) to the TOP (A), ENDS (C and D) and the BOTTOM (B) ◆ by using sixteen BOLTS (2). You should start each BOLT a few turns before completely tightening any of them. ◆ Page 10 DR001...
- Page 11 Step 6 ◆ Fasten the LEGS (P) to the BOTTOM (B) by using sixteen BOLTS (2). Page 11 DR001...
- Page 12 Step 7 Attach the DRAWER SIDES (S and R) to the DRAWER FRONT (X), ◆ slide the PLASTIC CONNECTIONS to the grooves. ◆ Slot the DRAWER BOTTOM SUPPORT (O) to the DRAWER FRONT (X). Page 12 DR001...
- Page 13 Slide the DRAWER BOTTOM (M) into the grooves, in the DRWAER SIDES (S and R), ◆ and the DRAWER FRONT (X). Fasten the DRAWER BACK (U) to the DRAWER SIDES (S and R) by using six BOLTS (1). ◆ Repeat the Step 7 and Step 8 on the other drawers. Page 13 DR001...
- Page 14 Step 9 ◆ Use two BOLTS (2) to fasten the PULL (4) to DRAWER FRONT (X). Repeat the same on the other drawer. Page 14 DR001...
- Page 15 Attention: This unit used Drawer Interlocking System, when one drawer is open, the other drawers cannot be opened. On the Right EXTENSION SLIDES, On the Left EXTENSION SLIDES, please make sure the small pin is upward. please make sure the small pin is downward. Page 15 DR001...
-
Page 16: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
