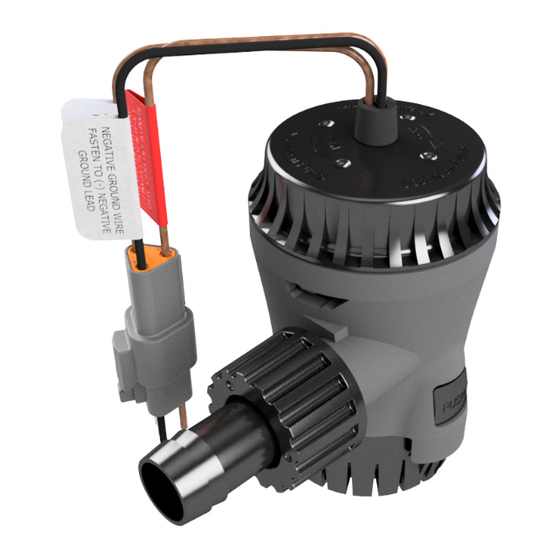

- Page 1 I N S T R U CT I O N M A N UA L Aqua Void Auto Bilge Pumps 500 and 800 GPH models MODELS: 10-13626-03, 10-13626-04, 10-13626-07, 10-13626-08. FORM NO.: IB-532 REVISION: 16/04/2024 READ AND UNDERSTAND THIS MANUAL PRIOR TO OPERATING OR SERVICING THIS PRODUCT.
- Page 2 For more information about our worldwide locations, approvals, certifications, and local representatives, please visit www.spxflow.com. SPX FLOW, Inc. reserves the right to incorporate our latest design and material changes without notice or obligation. Design features, materials of construction and dimensional data, as described in this bulletin, are provided for your information only and should not be relied upon unless confirmed in writing.
- Page 3 1. Pump function description The Aqua Void Auto Bilge Pump is equipped with advanced sensing technology to detect the presence of water within the bilge. Featuring a uniform pump housing design across all Aqua Void Pump models, the point of distinction lies in the inclusion of the auto-sensing motor cartridge. Operational efficiency is ensured through an automated cycle where the pump initiates a brief impeller rotation every 2.5 minutes, lasting for 1 second.
- Page 4 4 | AQUA VOID AUTO PUMPS INSTRUCTION MANUAL...
- Page 5 4. Pump basic technical data 500 GPH 800 GPH DESCRIPTION 19mm / 3/4’’ 19mm / 3/4’’ Hose size ISO: 38 l/min. 600GPH ISO: 50 l/min. 795GPH Capacity, straight (12V, ISO 8849) ABYC: 38 l/min. 600GPH ABYC: 50 l/min. 795GPH Capacity, straight (ABYC H-22) ISO: 26 l/min.
- Page 6 5. Product main parts PART NUMBER PART NAME CONNECTOR MALE PART CONNECTOR FEMALE PART 90 DEGREES DURAPORT SLEEVE CARTRIDGE MOTOR PUMP BASKET (INLET STRAINER) CHECK VALVE STRAIGHT DURAPORT SLEEVE DURAPORT NUT DURAPORT WASHER 6 | AQUA VOID AUTO PUMPS INSTRUCTION MANUAL...
-
Page 7: Check Valve
6. Check valve The check valve is used to reduce repetitive pump on/off cycling by preven- ting backflow of water from returning to the bilge. When the check valve is installed, the gasket is not required. The check valve is installed between the pump housing and duraport nut/sleeve. - Page 8 8 Cartridge motor replacement 1. Push down firmly until parts reach to mechanical stop. 2. Rotate cartridge motor clockwise until it clicks in posi- 3. Rotate cartridge motor counter clockwise until mechani- cal stop and pull it up to remove When replacing motor make sure that the oring is always in position and it is covered with...
-
Page 9: Pump Installation
9. Pump installation First of all bilge pump basket needs to be installed in appropriate place on a boat. Mounting holes. Always be carefull when installing basket. Use appropriate screws type and size. To- gether with screws always use washers. Push Tabs In- Pull pump and pasket apart. - Page 10 10. Auto cardridge motor wires explanation Auto pump cartridge motor will always have three wires. Brown wire (+), black wire (-) and brown wire with white stripe on it (auto function wire). In general when pump electrical circuit will be closed with use of brown and black wire, then it will work as a normal bilge pump without any auto functions in use.
- Page 11 AQUA VOID AUTO PUMPS INSTRUCTION MANUAL | 11...
- Page 12 12. Electrical connection plug Auto pump is equipped with IP68 electrical connector, which makes easy pump installation a reality. It is enough if electrical system on a boat is prepared correctly to easily plug in a pump, make an upgrade or replace a motor. A bit more information obout 3-way electrical plug is available below: Plug is made of two main parts (male and female).
- Page 13 14. Energy consumption Auto pumps use different type of sensing technology. That technology utilizes electronics which, even if pump is not in operation uses small amount of energy to keep pump in stand by mode. Pump stand by mode consumes 3,7mA. It is important to remember that: 1.
- Page 14 DOWNLOADS INSTRUCTION MANUALS Aqua Void Auto Pumps Models: 10-13626-03, 10-13626-04, 10-13626-07, 10-13626-08 Sweden +46 19 21 83 10 johnson-pump.marine@spxflow.com United States +1 800 541 1418 johnson-pump.americas.marine@spxflow.com Australia +61 03 9589 9222 ft.aus.cs@spxflow.com www.spxflow.com Improvements and research are continuous at SPX FLOW, Inc. Specifications may change without notice. ISSUED 04/2024 Form No.: IB-532 Revision: R01 Copyright ©2022 SPX FLOW, Inc.
