CAN@net NT 100/200/420

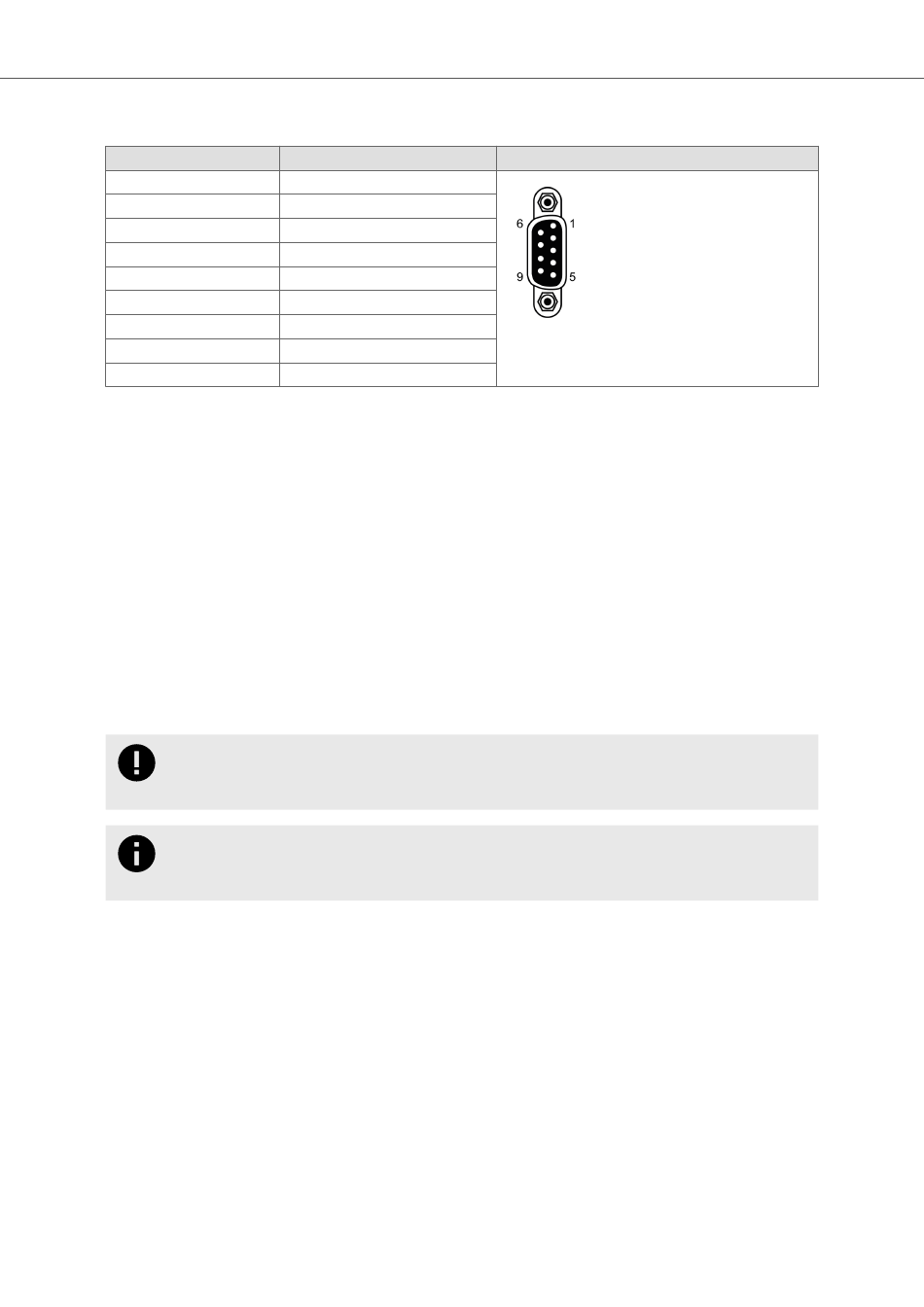

Table 3. Pin Allocation D-Sub 9 (CAN@net NT 100 and Adapter)
Pin no.
1
2
3
4
5
6
7
8
9
5.3. Checking and Updating the Firmware
To use all features the latest firmware versions of the CAN-Gateway Configurator and of the CAN@net NT must
be installed.
Checking the Device Firmware
1.
Make sure, that the latest VCI driver is installed.
2.
Make sure, that the device is correctly connected to the host computer and to power supply.
3.
Make sure, that the latest CAN-Gateway Configurator is installed (check within product support pages on
www.ixxat.com/support-bridges-gateways.
4.
Start the Ixxat CAN-Gateway Configurator.
5.
Open menu Scan and select All Ixxat devices.
• Connected devices and firmware version of the devices are shown.
Updating the Device Firmware
IMPORTANT
Whether a password is needed, is defined in the security settings of the CAN-Gateway Configurator.
The default password is IXXAT. For more information see User Manual CAN-Gateway Configurator
NOTICE
The firmware is constantly improved and expanded! Check if a newer firmware version is available
within the product support pages on www.ixxat.com/support-bridges-gateways.
If the current firmware of the device in use is V4 or older:
•
See update package on the product support pages on
information about updating to V5 or contact Ixxat support.
If the current firmware of the device in use is V5 or V6:
1.
Check if newer firmware is available on the product support pages on
www.ixxat.com/support-bridges-gateways.
2.
Download and unzip the update package.
3.
Make sure, that the device is connected to power supply.
4.
Connect the device to the computer via USB.
5.
Make sure that the latest CAN-Gateway Configurator is installed (check within product support pages on
www.ixxat.com/support-bridges-gateways).
Page 12 of 32
Signal
-
CAN low
CAN GND
-
Shield
-
CAN high
-
-
Checking and Updating the Firmware
Connector
www.ixxat.com/support-bridges-gateways
for
4.01.0332.20000 Version 2.1
