Nice Linear 661 Quick Start Manual

Linear 661
Nice G.O.
Smart
Connected
Smart Garage Door Operator
EN - Quick Start Guide

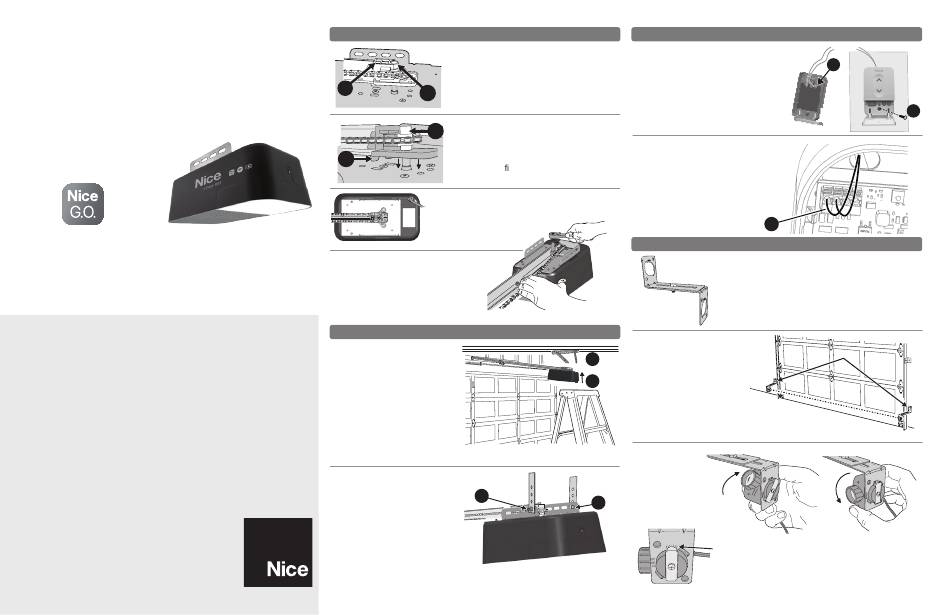

Attaching the Rail Attaching the Rail
Align the rail (a) over the center of the
operator head (b).
a
b
c
d
Slide the sprocket onto the shaft (c).
Tabs should t into the slots (d).
1 Attach the rail to the operator head by installing
3
four 1/4"-20 x 11/16" bolts.
4
2
Tighten the four bolts with a 7/16" socket.
Hanging the Operator
Hanging the Operator
The hanging brackets should be
angled to provide rigid support. (a)
Adjust the operator and wall
mounting bracket height so that it
is relatively level, and there is a
1.75" gap between the rail and the
high point of the door travel (b).
Attach operator to hanging
brackets using two 5/16-18 x 1"
c
hex bolts and two 5/16-18 keps
nuts (supplied). (c)
Insert bolts from the inside of
hanger brackets with the nuts on
the outside of the operator, and
then tighten nuts with a 1/2"
socket. (d)
2
Wire / Mount the Wall Station
Strip back 1/2" of insulation, and connect a
wire to each of the two terminals on the back of
the wall station. Polarity does not matter. (a)
Mount the first screw in the location desired,
then hang the Wall Station. Securely mount
the Wall Station with the bottom screw. (b)
Connect either wire to the operator's WALL
STATION terminal and the other wire to the
operator's COMMON terminal. Polarity does
not matter. (c)
c
Install the Safety Beam
Assemble the two safety L-shaped brackets using
two 1/4"-20 x 11/16" bolts and 1/4"-20 keps nuts.
Position and mount assembled
brackets on each side of the
a
door so the center line of the
safety beam lenses will be
b
5-1/2" above the floor. Use the
index marks on the brackets to
make the bracket assemblies
equal lengths.
Insert the sender and
receiver into the
bracket holes so the
lenses of the units will
d
face each other (a).
Twist the units until the spring clips lock into a detent
mark on the brackets.
a
b
3
