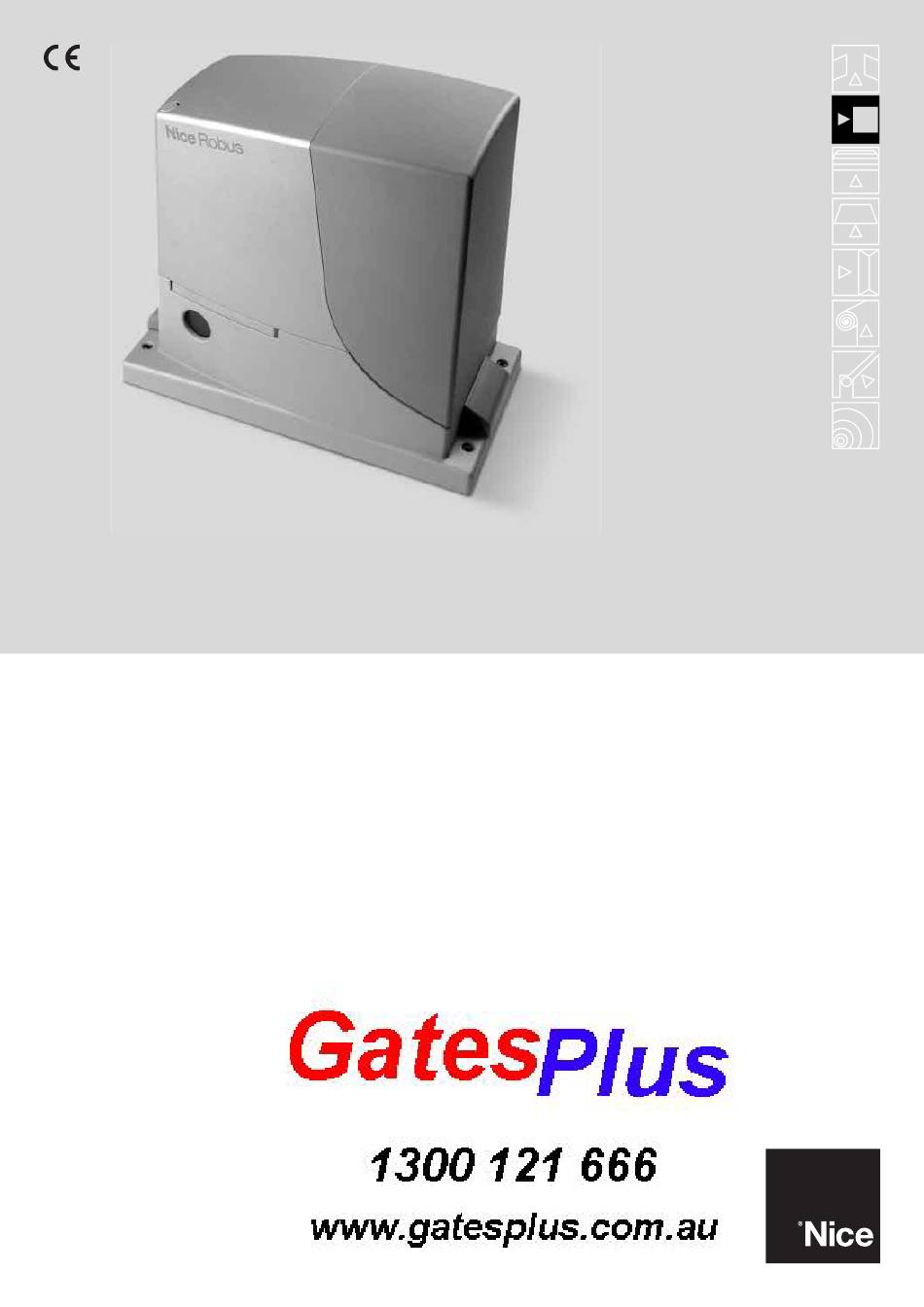

- Page 1 For sliding gates Robus Instructions and warnings for the fitter...
-
Page 2: Table Of Contents
Robus Table of contents: page Warnings Level one functions (ON-OFF functions) 7.2.1 Level one programming 7.2.2 Product description and applications (ON-OFF functions) Operating limits Level two functions 7.2.3 Typical system (adjustable parameters) List of cables Level two programming 7.2.4 (adjustable parameters) Installation Level one programming example 7.2.5... -
Page 3: Warnings
Directive if used in the configurations foreseen in this instructions man- the conformity to the machine directive. ual and in combination with the articles present in the Nice S.p.a. prod- Please access “www.niceforyou.com” for further information, and guide- uct catalogue. If the product is not used in configurations or is used lines for risk analysis and how to draw up the Technical Documentation. -
Page 4: Product Description And Applications
2) oduct description and applications ROBUS is a line of irreversible electromechanical gearmotors for the ates with electric power. In the event of a power failure, the gearmo- automation of sliding gates. It is equipped with an electronic control tor can be released using a special key in order to move the gate unit and connector for the optional SMXI or SMXIS radiocontrol manually. - Page 5 Table 3: limits in relation to the weight of the leaf RB400, RB400 Leaf weight (kg) % cycles Maximum speed allowed Up to 200 100% V6 = Extremely fast 200 ÷ 400 V5 = Very fast 400 ÷ 500 V4 = Fast 500 ÷...
-
Page 6: Typical System
2.2) Typical system Figure 2 shows a typical system for automating a sliding gate using ROBUS Key-operated selector switch Secondary fixed edge (optional) Photocells on post Flashing light with incorporated aerial 10 ROBUS Photocells Main fixed edge (optional) 11 “Closed” stop bracket Main movable edge 12 Secondary movable edge (optional) “Open”... -
Page 7: Installation
3) Installation The installation of ROBUS must be carried out by qualified personnel in compliance with current legislation, standards and regulations, and the directions provided in this manual. • Make sure that the installation area enables the release of the gear- 3.1) Preliminary checks Before proceeding with the installation of ROBUS you must: motor and that it is safe and easy to release it. -
Page 8: Fixing Of The Limit Switch Bracket
If the rack is already present, once the gearmotor has been fastened, 7. Open the leaf up completely and place the first piece of the rack use the adjustment dowels as shown in Figure 8 to set the pinion of on the pinion. -
Page 9: Installation Of The Various Devices
3.4) Installation of the various devices If other devices are needed, install them following the directions provided in the corresponding instructions. Check this in paragraph “3.6 Description of electrical connections” and the devices which can be connected to the ROBUS in Figure 2. 3.5) Electrical connections Make a hole in the rubber membrane which is slightly smaller than the Only carry out electrical connections once the electric-... -
Page 10: Description Of The Electrical Connections
3.6) Description of the electrical connections The following is a brief description of the electrical connections; for STOP see also Paragraph “7.3.2 STOP Input”. further information please read “7.3 Adding or Removing Devices” STEP-BY-STEP: input for devices which control Step-by-Step paragraph. -
Page 11: Recognizing The Length Of The Leaf
4.4) Recognizing the length of the leaf After recognizing the devices, L3 and L4 LED’s start flashing; the control unit must recognize the length of the gate. During this stage, the length of the leaf is measured from the closing limit switch to the opening limit switch. This measurement is required to calculate the decel- eration points and the partial opening point. -
Page 12: Testing
5.1) Testing Each component of the system, e.g. safety edges, photocells, emer- 6. Check the proper operation of all the safety devices, one by one gency stop, etc. requires a specific testing phase. We therefore rec- (photocells, sensitive edges, emergency stop, etc.) and check ommend observing the procedures shown in the relative instruction that the gate performs as it should. -
Page 13: Additional Information
7) Additional information Programming, personalisation and how to look for and deal with faults on the ROBUS will be dealt with in this chapter. 7.1) Programming keys The ROBUS control unit feature three keys that can be used to com- mand the control unit both during tests and programming. -
Page 14: Level One Programming (On-Off Functions)
7.2.2) Level one programming (ON-OFF functions). Level 1 functions are all factory set to “OFF”. However, they can be changed at any time as shown in Table 8. Follow the procedure careful- ly, as there is a maximum time of 10 seconds between pressing one key and another. If a longer period of time lapses, the procedure will fin- ish automatically and memorize the modifications made up to that stage. -
Page 15: Level Two Programming
Led di entrata Parametro Led (livello) Valore Descrizione 0,5 m Adjusts the measurement of the partial 1,5 m opening. Partial opening can be controlled Open Partially with the 2nd radio command or with 2,5 m “CLOSE”, if the “Close” function is present, this becomes “Open partially”. -
Page 16: Level One Programming Example (On-Off Functions)
7.2.5) Level one programming example (ON-OFF functions). The sequence to follow in order to change the factory settings of the functions for activating “Automatic Closing” (L1) and “Always close” (L3) have been included as examples. Tabella 11: Level one programming example Example Press the key [Set] and hold it down (approx. -
Page 17: Stop Input
7.3.2) STOP input STOP is the input that causes the immediate interruption of the • Two devices with 8,2KΩ constant resistance output can be con- manoeuvre (with a short reverse run). Devices with output featuring nected in parallel; if needed, multiple devices must be connected normally open “NO”... -
Page 18: Robus In "Slave" Mode
7.3.5) ROBUS in “Slave” mode Properly programming and connecting, ROBUS can function in “Slave” mode; this type of function is used when 2 opposite gates need to be automated with the synchronised movement of the two leaves. In this mode ROBUS works as Master commanding the movement, while the second ROBUS acts as Slave, following the commands transmitted by the Master (all ROBUS are Masters when leaving the factory). -
Page 19: Recognition Of Other Devices
Tabella 14: ROBUS Slave programming independent from ROBUS Master Level one functions (ON-OFF functions) Level two functions (adjustable parameters) Stand-by Motor speed Peak Open Gate Indicator Output Slave Mode Motor force Error list On Slave it is possible to connect: •... -
Page 20: Connection Of Other Devices
Control of the number of manoeuvres performed The number of manoeuvres performed as a percentage on the set limit can be verified by means of the “Maintenance warning” function. Fol- low the indications in table 17 for this control. Tabella 17: control of the number of manoeuvres performed Example Press the key [Set] and hold it down (approx. -
Page 21: Troubleshooting
7.6) Troubleshooting The table 19 contains instructions to help you solve malfunctions or errors that may occur during the installation stage or in case of fail- ure. Tabella 19: Troubleshooting Symptoms Recommended checks The radio transmitter does not control the gate Check to see if the transmitter batteries are exhausted, if necessary replace them and the LED on the transmitter does not light up The radio transmitter does not control the gate... -
Page 22: Flashing Light Signalling
7.7.1) Flashing light signalling During the manoeuvre the flashing light FLASH flashes once every second. When something is wrong the flashes are more frequent; the light flashes twice with a second's pause between flashes. Tabella N°21: FLASH flashing light signalling Quick flashes Cause ACTION... -
Page 23: Accessories
The following optional accessories are available for ROBUS: For information on the complete range of accessories, refer to the • PS124 PS124 24 V Buffer battery - 1,2Ah with integrated charger Nice s.p.a. product catalogue. battery. • SMXI or SMXIS 433.92MHz Radio receiver with digital Rolling code. -
Page 24: Technical Characteristics
8) Technical characteristics Nice S.p.a., in order to improve its products, reserves the right to modify their technical characteristics at any time without prior notice. In any case, the manufacturer guarantees their functionality and fitness for the intended purposes. All the technical characteristics refer to an ambient temperature of 20°C (±5°C) -
Page 25: Robus Gearmotor
This operation antee high levels of safety and security. They are has been carefully designed by Nice to make it equipped with detection devices that prevent move- extremely easy, without any need for tools or physical ment if people or objects are in the way, guaranteeing exertion. - Page 26 Nice products. You will get the the control is released the gate will stop. services of a specialist and the most advanced pro- ducts available on the market, superior performances and maximum system compatibility.
Need help?
Do you have a question about the Robus 400 and is the answer not in the manual?
Questions and answers
How to open gate in a power cut situation
To open the Nice Robus 400 gate during a power cut:
1. Make sure the gate leaf is stopped.
2. Slide the lock cover disc.
3. Insert the key and turn it clockwise.
4. Pull the release handle.
5. Move the gate manually.
To lock it again, reverse these steps.
