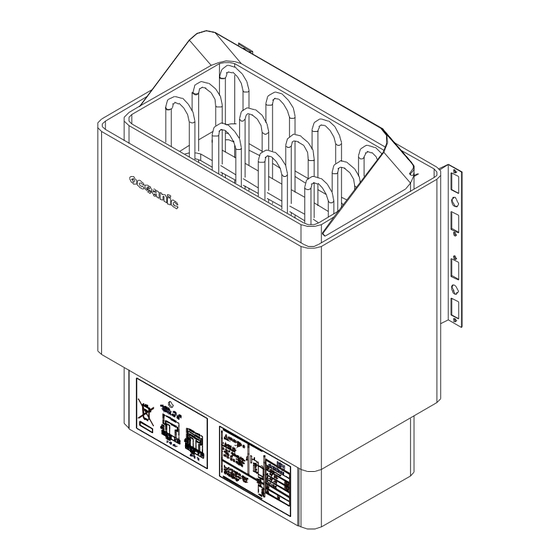

- Page 1 USER MANUAL MODEL ： OCS30 OCS40 OCS45 OCS60 OCS80 OCS90 The Heater Welcome to select the above OCS Heater Read the user manual before using the heater -Installation -Operation OCS series sauna heater UKCN-SAUNA-E001-08-05-01...
- Page 2 Sauna Heater Foreword Thank you for choosing to buy our Oceanic Sauna heater, please take the time to read these instructions before you begin as they contain important information about the installation and maintenance requirements. “Oceanic” sauna heater are available in specifications from 3kw to 9kw and are equipped with our OC-SA digital controller.
- Page 3 Oceanic Sauna Heater 1．Parameter and size of sauna heater（chart 1） Chart 1 power imput size(mm) Heat Sauna Model element stone (Kw) 1N～ 3N～ quantity （Kg） 0CS30 230V 12-14 0CS40 230V 13-15 OCS45 230V 14-16 OCS60 230V 16-18 OCS80 230V 18-20...
- Page 4 Oceanic Sauna Heater OC SA I Controller circuit diagram C O M C O M C O M C O M H I TEM P2 CU T O FF M A N U A L RES ET （ ） H I TEM P1 CU T O FF...
- Page 5 Oceanic Sauna Heater Chapter Two: frame and functions 1．Sauna heater frame and parts (1) sauna heater frame(fig 4） (fig4) （2）parts（chart 4） Chart 4 parts description Inner shell Hold heat element and sauna stone Stone bracket support the sauna stone Shell...
- Page 6 Oceanic Sauna Heater Chart 5 parts description Indicator LED for over heat in sauna room ,it is on means need High1 LED reset by hand the sauna heater will rework Indicator LED for waiting work status, it is on means on B work...
- Page 7 Oceanic Sauna Heater （2）Temp sensor instruction（chart 6） Chart 6 parts Description Circuit board Circuit board bracket bracket cover Protect t the electronic Heat resistance Detect temperature High Temp cut of switch When temperature in sauna room exceed 120℃ or 248 ℉...
- Page 8 5×2.5 units：（mm) 3.5mm Screw6x40(4 pcs） Fig 7A fig 7B fig 7C Min distance（mm) 1、Cover panel Model 2、entry and wire anchorage 3、power supply OCS30 4、Juction box 5、conducting wire 6、controller OCS40 7、lamp OCS45 OCS60 OCS80 OCS90 Fig 7D chart 8 fig 8 2．...
- Page 9 Oceanic Sauna Heater （1）refer the installation drawing fig 7A, 7B ,Fix screws and hang sauna heater on wall (2) remove the cover panel. connect power supply wire ,control cable from the knock-out hole to Terminal as fig 8； （3）cover the panel and faten the screws；...
- Page 10 Oceanic Sauna Heater OC-SA I Controller Temperature Sensor lamp input High2 Overheat switch Sauna 230V 1N ~ heater Terminal (Fig 10A) OC-SA II Controller Temperature Sensor lamp input High2 Overheat switch Sauna 230V 1N heater Terminal (Fig 10B) OC-SA II Controller...
- Page 11 （5）when the temperature setting finished ,sauna heater has sequential heating function. when switch on all heat elements will work together until the sauna room temperature achieve the target temperature , two bank heat elements will stop work (for OCS30,OCS40 ,one bank will stop ), when sauna room temperature is 2 / above t he target temperature ,all heat elements will stop work .
- Page 12 Oceanic Sauna Heater you turn on sauna heater ,the default is A model. B model: sauna heater will work after the preset time, the time window display the rest waiting time, when the time window display 0 ,it will change to A model and the sauna heater will stat heating at once, and the work time is the preset time under A model.
- Page 13 Oceanic Sauna Heater change to A model and start work as the setting working time under A model. For the time setting , you can also press “ ▲ ” or “▼ ”for 3 seconds , after 3 second ,the time will increase or reduce automatically ,when it reach to the time you need , release the press, it will confirmed after 5 seconds.
- Page 14 Oceanic Sauna Heater Sauna heater is under B Wait LED is on If need heat at once ,change to A model model 1、 --L (or ) means temperature sensor ℃ ℉ 1. temperature hasn’t hasn’t connected or the temperature connect well or the cable lower than 0℃...
