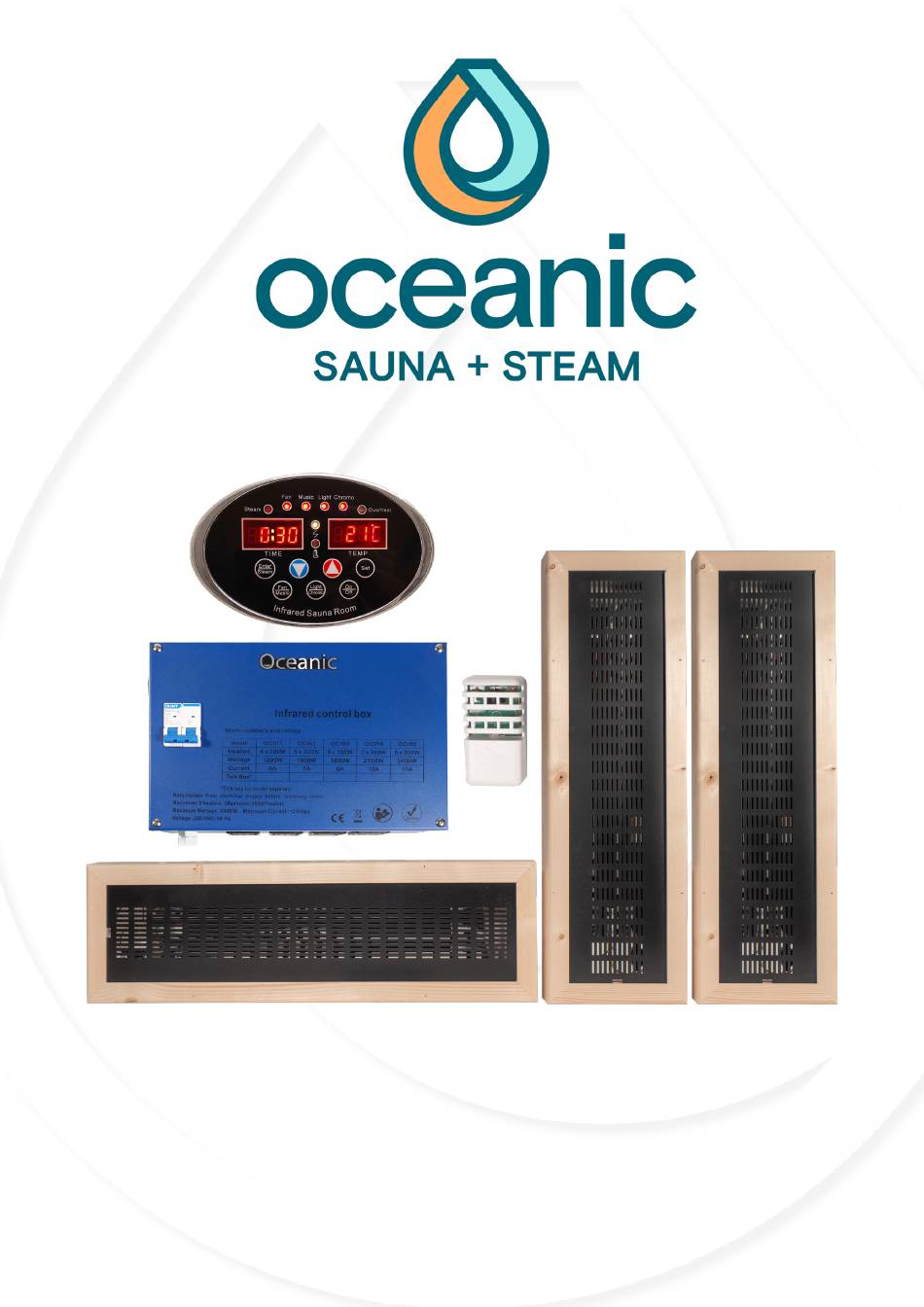

- Page 1 Infrared Heaters and Controls Manual 7 October 2024 10:28 am...
- Page 2 Infrared Heaters and Controls Manual Table of Contents Safety Precautions Page 3 System Overview Page 4 Sauna Layout Page 5 Infrared Heaters Page 6 Heater Diagram Heater Clearance Distances Installing heaters Page 9 Backrests Page 10 Control Box Page 10 Temperature Sensor Installation Resetting Overheat...
- Page 3 Infrared Heaters and Controls Manual Thank you for purchasing Oceanic Infrared Heaters and Control System. It is important to read the following instructions carefully before installing this equipment into your sauna. If you are unsure about anything please contact someone from either the Oceanic Saunas sales team or the technical department before continuing.

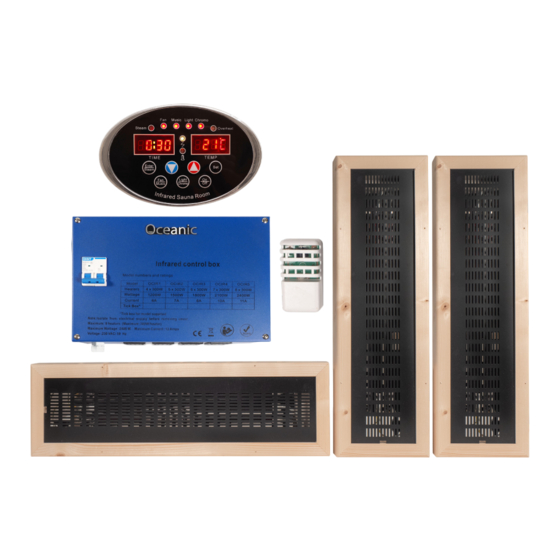

- Page 4 Infrared Heaters and Controls Manual System Overview Connections to sensors, keypad and accessories 240V mains 13amp Socket Control box 240V 240V 240V Hard wired 240V mains 240V Connections to IR All pole heaters (up to 8 heaters) Isolator switch 240V ‘signal’ Over 8 heaters from control box Extended...
- Page 5 Take a look on the Oceanic Saunas website for resources including videos on how to build an infrared sauna. A wide range of infrared sauna cabin sizes and layouts can be seen in the product range, we recommend finding a model with dimensions closest to your space to help work out the number of heaters you require.
- Page 6 Good airflow around the heater is required to prevent overheating. Oceanic infrared heaters must not be used in combination with any other sauna heater in the same sauna. Use with any other form of heating risks causing a fire and damaging the infrared units.
- Page 7 Infrared Heaters and Controls Manual Heater Clearance Distances Side Section View Front View Vertical Heater Clearance Distances (mm) Above (ceiling) Front (guard rail) Below (rail) Side (wall) Side (heater) Horizontal Heater Clearance Distances (mm) Vertical heater Above (rail) Front Below (floor) Horizontal Side (wall) heater...
- Page 8 Infrared Heaters and Controls Manual Installing heaters • Vertical heaters are positioned above bench around 500mm above floor level, centre of the 40mm cable hole should be 60mm above the lowest part of the heater unit. • Under bench horizontal heaters are positioned beneath benches around 100mm above floor level. Centre of the 40mm cable hole should be 65mm above the bottom edge of the heater unit.
- Page 9 Infrared Heaters and Controls Manual Backrests Oceanic infrared saunas are supplied with a backrest to be installed in front of the vertical infrared heaters above the benches. A range of Oceanic infrared backrests are available to purchase separately for customers building their own bespoke saunas, these can be modified (cut down).
- Page 10 Infrared Heaters and Controls Manual Control Box The control box contains the relays for switching the IR Heaters on/off along with the main circuit board for controlling inputs from the keypad, sensors etc. This box is typically mounted on top of the sauna but can also be located on the side wall (externally).
- Page 11 Infrared Heaters and Controls Manual Circuit diagram Infrared Control Box-B Circuit Diagram OC Controller / Switch Sensor Controller(Voltage:DC5V) Circuit OC Controller OSX Controller breaker Power Input (AC230V) MINI Steam generator OSX controller only Dimmable To music power Light1 Light2 (AC230V) Non-Dimmable Infrared heater element (AC230V)
- Page 12 Connection to the amp can be made via an Aux input or connection to bluetooth. A fan is not a requirement on Oceanic saunas that have built in vents for natural ventillation. If you intend to install a fan and control via the keypad ensure the power does not exceed 100W.
- Page 13 Temp display window Display the detected temperature of steam room Steam Not Used Indicated the Fan is active (not required for Oceanic IR sauna) Music Indicated the Speakers have been turned on Light 1 Indicated the Light is turned on...
- Page 14 The reset button is located in the remote thermostat. If you cannot ascertain what caused the increase in sauna temperature, do not attempt to reset the sauna, but either notilfy Oceanic Saunas Ltd, or call in a qualified electrician.
- Page 15 Infrared Heaters and Controls Manual Mini Steam Generator The mini steam generator is an optional accessory for domestic infrared sauna cabins only, not for use in commercial cabins. It is powered and controlled independently from the infrared heaters but can be run simultaneously as the IR heaters are hermetically sealed.
- Page 16 Infrared Heaters and Controls Manual Parts Description Description Back cover circuit board Side cover Terminal Power entry Heat element Overheat switch Water level indicator LED Control panel SUS tank Water level probe Steam outlet and water inlet 6 7 8 9 Shell Heat preservation cotton Installation...
- Page 17 Do not add neat aroma to the tank, ensure the aroma is diluted. Oceanic aromas are to be diluted 1 part aroma to 20 parts water. For every 1ltr of water only add a maximum of 50ml of aroma.
