April '13
equipped with our OC-SA digital controller. With this not only can you control the temperature and time
duration of your sauna bath but also the light of the sauna room, alter the temperature display between
Centigrade and Fahrenheit; as well as displaying the sauna heater's status.
Every "Oceanic" sauna heater is thoroughly tested before leaving the factory.
IMPORTANT
•
Read the manual before installation and operation and then keep it for reference
•
This equipment must be installed by competent person
•
This equipment must be connected to an all pole isolator of the correct rating
•
Disconnect the power supply before exposing electrical connections
•
All heaters can be connected single phase(230v) or triple phase(400v), this can be easily changed by
adding bridge connectors across the connections L1, L2 and L3.
•
5 core silicon bound heat proof cable must be used to wire from the control to the heater. (For 230v and
400v) Wire the letters with the corresponding letters on the heater. For example: U V W on the control
go to U V W on the heater, the three lives for the elements, the reason for having three is because each
element is controlled individually. When the heater reaches the desired temp it cuts out two elements.
•
The sauna heater should not be used for any other purpose
•
Do not cover the heater or allow contact with flammable materials such as toweling – Risk of fire.
•
Do not operate sauna heater without sauna stone
•
Do not touch the heater when operational as it is very hot
•
Sauna heater must have right earth connection, the earth wire should be bigger than the power supply
wire to sauna heater
•
The sauna controller should be installed on a dry wall outside the sauna cabin
Oceanic Sauna Heater Manual

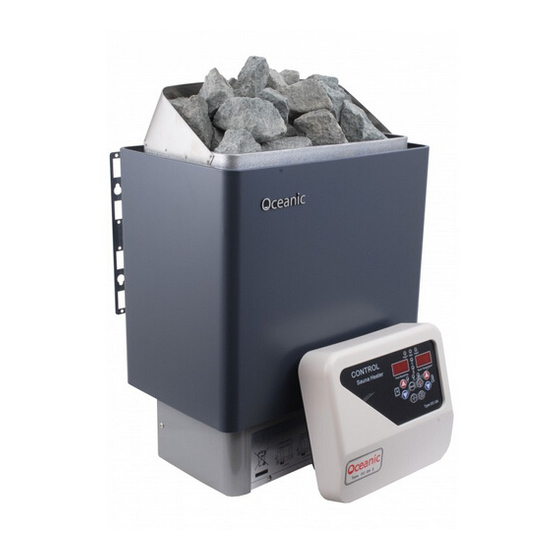

Thank you for choosing to buy our Oceanic Sauna heater; please take the time to read
these instructions before you begin as they contain important information about the
installation and maintenance requirements.
"Oceanic" sauna heaters are available in specifications from 3kw to 9kw and are
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Oceanic 0CS30
Summary of Contents for Oceanic 0CS30
- Page 1 Oceanic Sauna Heater Manual April ‘13 Thank you for choosing to buy our Oceanic Sauna heater; please take the time to read these instructions before you begin as they contain important information about the installation and maintenance requirements. “Oceanic” sauna heaters are available in specifications from 3kw to 9kw and are equipped with our OC-SA digital controller.
- Page 2 Oceanic Sauna Heater SAFETY PRECAUTIONS FOR SAUNA • Elderly persons, pregnant women, or these suffering heart disease, high blood pressure, diabetes or not in good health are advised to seek medical opinion before using a sauna room; • Do not smoke in the sauna room;...
- Page 3 Oceanic Sauna Heater Simple Diagram...
-
Page 4: Chapter One: Specification
Chapter One: Specification 1. Parameter and size of sauna heater (chart 1) Chart 1 Power Input Size (mm) Heat Sauna Model element stone (Kw) quantity (Kg) 0CS30 230V 12-14 0CS40 230V 13-15 OCS45 230V 14-16 OCS60 230V 16-18 OCS80 230V... - Page 5 Oceanic Sauna Heater Circuit Diagram for controller (Fig2, Fig3) (Fig 2) (Fig3)
-
Page 6: Chapter Two: Frame And Functions
Oceanic Sauna Heater Chapter Two: frame and functions 1. Sauna heater frame and parts (1) Sauna heater frame (Fig 4) (Fig 4) (2) Parts Chart 4 Parts Inner shell Stone bracket Shell Heat element Fix bracket Cover Panel Terminal... - Page 7 Oceanic Sauna Heater 2. Controller frame and parts • Controller frame (Fig 5) (Fig 5) • Keys and LED instruction (Chart 5) Chart 5 Parts Description Indicator LED on when sauna over heats (serious hazard) High1 LED (Reset Manually) Wait LED...
- Page 8 Oceanic Sauna Heater 3.Temp sensor frame and parts • Temp sensor frame (Fig 6) (Fig6) • Temp sensor instruction (chart 6) Chart 6 Parts Description Circuit board Circuit board Bracket Bracket Cover Protects the electronics Heat resistance Detects temperature When temperature in sauna room exceed 120...
-
Page 9: Chapter Three: Installation
Oceanic Sauna Heater Chapter Three: installation 1. Important • Confirm the model you have selected is suitable for your sauna room, please refer to chart 7 • Ensure the power supply is suitable for the sauna heater • Isolate the power supply before installation •... - Page 10 Fuse (A) heater to (mm) Volume Distance to Model shelf over 230V 400V 230V 400V height 500mm Ceiling Floor (Mm) above the floor 0CS30 1900 1100 0CS40 1900 1100 OCS45 1900 1100 19.5 OCS60 1900 1100 OCS80 1900 1100 OCS90...
- Page 11 Oceanic Sauna Heater 2. Installation for sauna heater • Refer the installation drawing fig 7A, 7B, Fix screws and hang sauna heater on wall • Remove the cover panel & connect power supply wire & control cable through the knock-out holes to the Terminal as per fig 8 and replace the cover panel.
- Page 12 Oceanic Sauna Heater 5. Sauna heater, controller and temperature sensor connection drawing (Fig10A, Fig 10B, F869g 10C) (Fig 10A) (Fig 10B) (Fig 10C)
-
Page 13: Chapter Four: Testing And Operation
Oceanic Sauna Heater Chapter Four: Testing and operation 1. Testing • After checking that the sauna heater installation is correct, put the sauna stone in place (note we recommend washing the stones thoroughly in water to remove any dust before the first use). Put the larger stones at the bottom and smaller stones on top. - Page 14 Oceanic Sauna Heater target temperature, all heat elements will work again. • Light button: Turns sauna light on/off • Use temperature switch button to change the temperature display between centigrade and Fahrenheit • The Controller has a timing device so you can set a time when you want the heater to power up, this can be set from 0~12 hours as shown in the Chart 9 below.
- Page 15 Oceanic Sauna Heater 2. Setting time and temperature: • The default settings for temperature are: 75 C/167 F. For preset operation time: 2 hours. These can be adjusted easily, if the electricity supply is lost the controller will return to default settings.
-
Page 16: Chapter Five: Trouble Shooting Guide
Oceanic Sauna Heater Chapter Five: Trouble shooting Guide Please Note that we recommend a suitably qualified person carries out all repairs. Trouble description Cause Solutions There is no display on There is a problem with; 1. Check the power supply. If the power the control panel when 1.power supply or... -
Page 17: Chapter Six Maintenance
Sauna Heaters & Sauna Cabins Maintenance All Sauna products supplied by Direct Saunas Limited and Oceanic Saunas are for use in an indoor environment such as a domestic house or a club building and should not be used in any other circumstances. -
Page 18: Chapter Seven: Warranty & After Sales
Chapter Seven: Warranty & After Sales All Oceanic Sauna Heaters are guaranteed for 12 months from the date of purchase against faulty materials or workmanship. The guarantee excludes consumable items such as the electrical elements and faults arising from misuse or abuse of the appliance.
