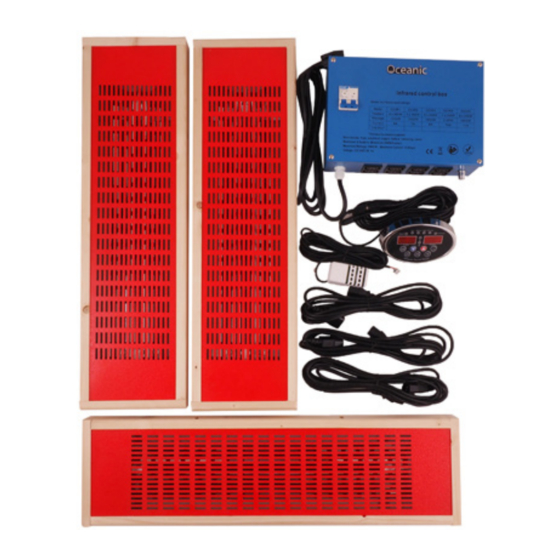

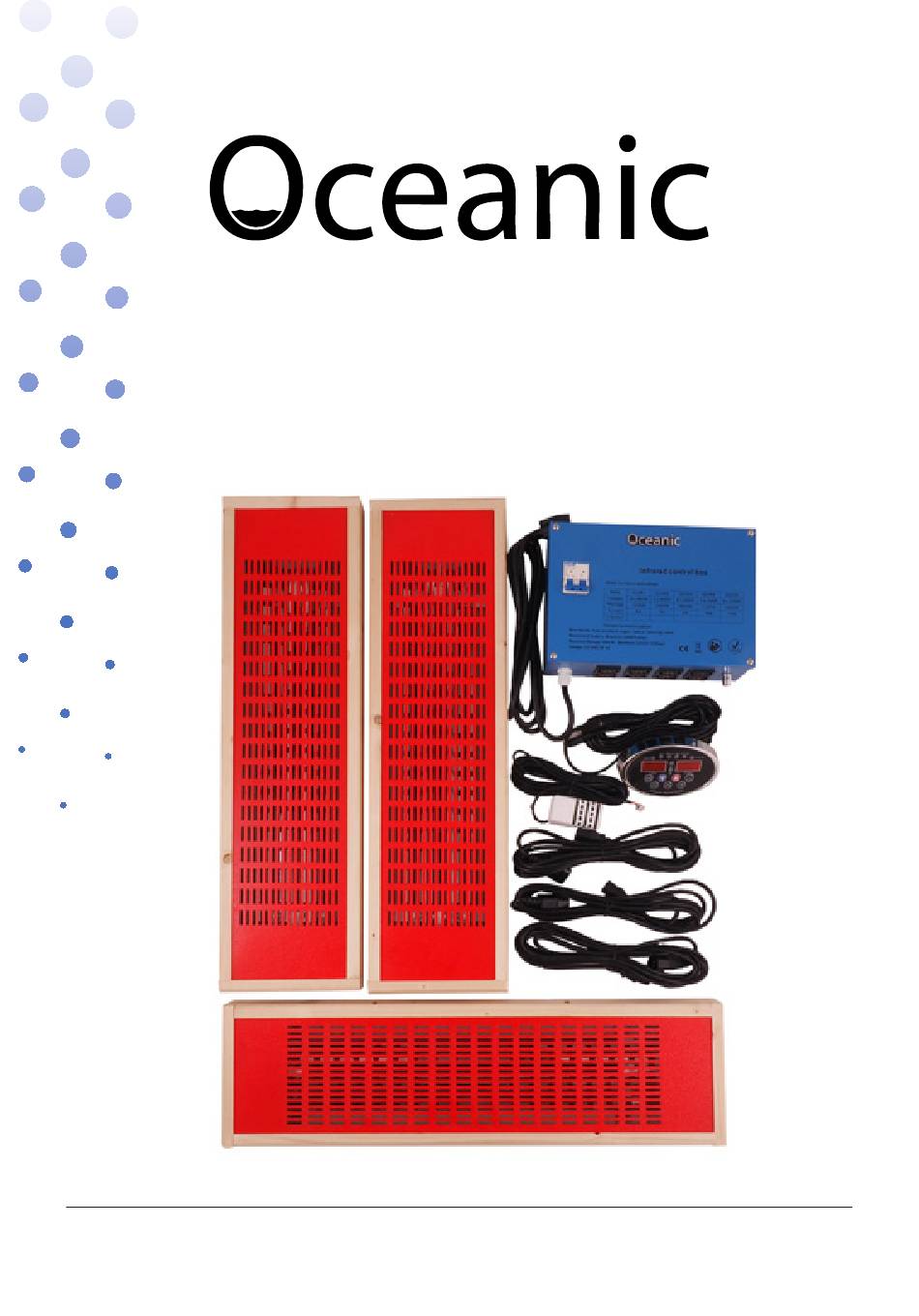

- Page 1 S a u n a & S t e a m Infrared Heaters and Control System Oceanic Ltd, Pountney Street, Wolverhampton, WV2 4HX Phone: 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 2: Table Of Contents
11. Mini Steam Generator Maintenance ......14 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 3: Safety Precautions
Thank you for purchasing Oceanic Infrared Heaters and Control System. It is important to read the following instructions carefully before installing this equipment into your sauna. If you are unsure about anything please contact someone from either the Oceanic Saunas sales team or the technical department before continuing. -
Page 4: Infrared Heaters
The oval shaped keypad is supplied with a 5m 6pin low voltage cable to connect directly to the control box. A 10m version of this cable is available if required and can be purchased online through the Oceanic website. The keypad should be mounted outside the sauna, typically at height of 1500mm from floor level for ease of use. -
Page 5: Example Layout
Drawings below show the layout of the system from our D1020 IR Sauna Cabin, see website for further details and images. Plan View Vertical IR Heater Control box mounted on top of ceiling Side Section Front Section Vent Backrest Temperature Sensor Horizontal IR Heater Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 6: Installing Heater Units
Feed the male end of the power cable through the hole and connect to the bottom of the heater unit. v. Drop the heater unit onto the screws vi. Fix at the bottom with 30mm screws. 179mm Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 7: Under Bench Heaters
It is possible to connect up to 3No 12V spotlights to the lighting input on the control box. LED versions which are suitable for Infrared saunas only are available to buy from Oceanic. Assemble the spot light(s) as shown and fit into the ceiling hole(s). -
Page 8: Speakers
Speakers Speakers are available from the Oceanic website. A bluetooth device is also to purchase available if you prefer to connect via bluetooth. Simply plug the speaker wires into the control box, route the cables across the roof and onto the small and large connectors on the top of the speakers. -
Page 9: Circuit Diagram
Circuit Diagram Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 10: Keypad Functions
Display the work time of the steam generator Temp display window Display the detected temperature of steam room Steam Not used Indicated the Fan is active (not required for Oceanic IR sauna) Music Indicated the Speakers have been turned on Light Indicated the Light is turned on... -
Page 11: Keypad Operation
Oceanic Saunas Ltd, or call in a qualified electrician. Please read the Infrared Sauna Operation Manual for full instructions on how to use and look after your infrared sauna. -
Page 12: Mini Steam Generator Safety Precautions
Class 1 Class 2 Class 3 OC-Mini-1 1000 210-240 2.1-2.3 3.2-3.6 4.2-4.8 220 x 100 x 340 OC-Mini-2 1000 1500 2000 210-240 4.2-4.6 6.4-7.2 8.4-9.6 220 x 100 x 340 9.3. Mini Steam Generator Circuit Diagram Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 13: Parts Description
Fix to cabin wall using 40mm Screws and the locating fixing points on the back of the heater. iii. Drill hole through the panel as appropriate height for cable to be inserted. iv. Connect the steam generator to a 13Amp socket with RCD protection. Fixing points for 40mm screw Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk... -
Page 14: Controls And Indicators
Do not add neat aroma to the tank, ensure the aroma is diluted. Oceanic aromas are to be diluted 1 part aroma to 20 parts water. For every 1ltr of water only add a maximum of 50ml of aroma.
