HighPoint SSD7749E Quick Installation Manual
8x e1.s port to pcie 4.0 x16 nvme raid controller
Hide thumbs
Also See for SSD7749E:
- Quick installation manual (8 pages) ,
- Installation manual (42 pages) ,
- Manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for HighPoint SSD7749E
Summary of Contents for HighPoint SSD7749E
- Page 1 SSD7749E 8x E1.S Port to PCIe 4.0 x16 NVMe RAID Controller Quick Installation Guide V1.02...
-
Page 2: System Requirements

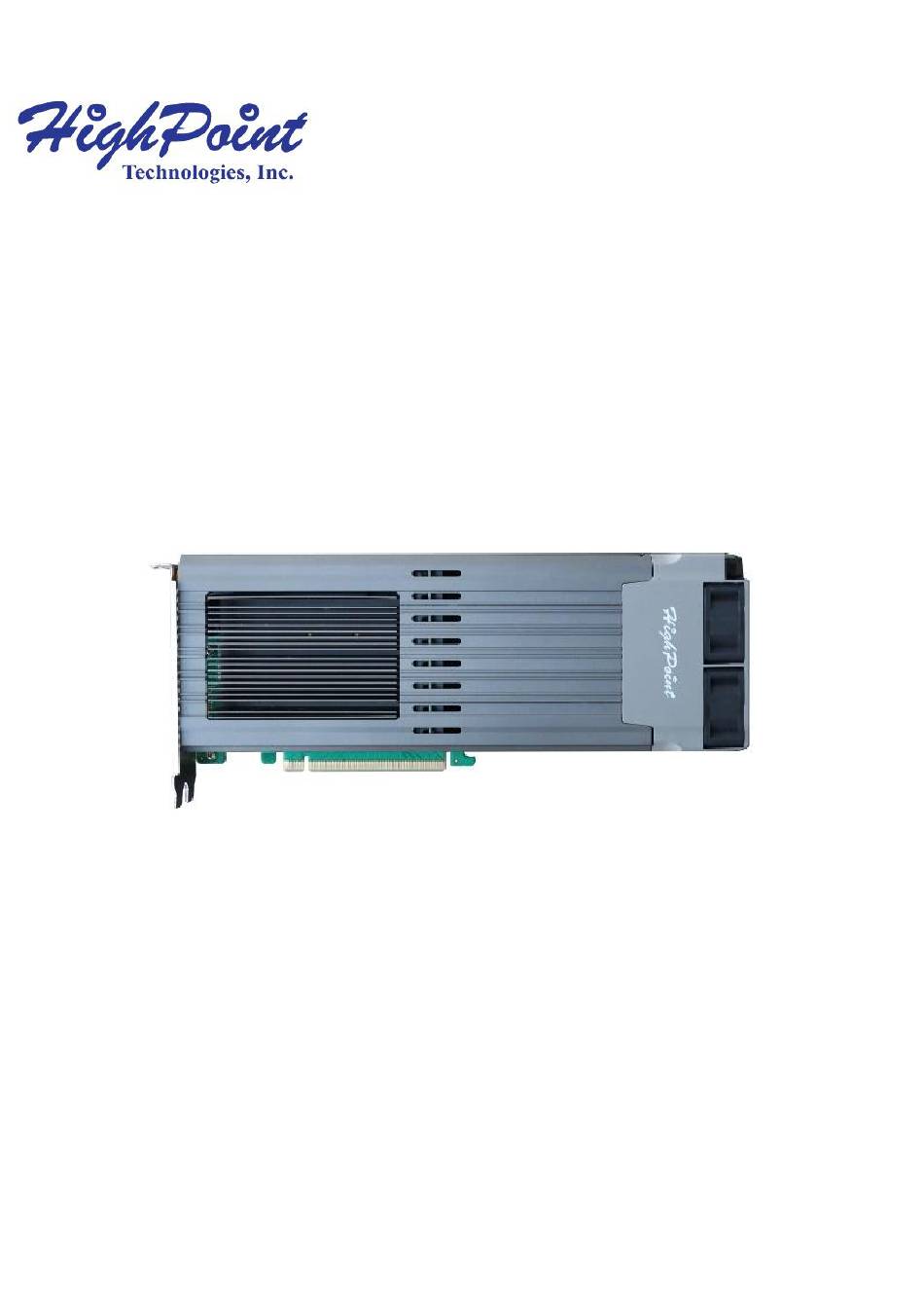

Windows 11, 10 / Server 2022, 2019, 2016 / Microsoft Hyper-V RHEL/Debian/Ubuntu/Fedora/Proxmox/ Rocky Linux (Linux kernel 3.10 and later) macOS 10.13.6 ~ macOS 13.x ARM Platform (NVIDIA model, Support Linux) Kit Content SSD7749E Controller Card Quick Installation Guide ... - Page 3 SSD7749E Hardware Front View Full-Length anodized aluminum heat sink Full Height form factor External power port Low-Noise Cooling Fan PCIe 4.0 x16 Host Interface...
-
Page 4: Hardware Installation
Hardware Installation Step 1. Apply pressure to release the lock, and turn it counter-clockwise. Warning: Please pay attention to opening the fan module carefully to avoid causing damage to the fan module Step 2. Gently insert the SSD into the slot. PORT1 PORT8... - Page 5 Notes: Ensure the SSD contacts (“golden fingers”) are clean before installation. Ensure the NVMe SSD is carefully but securely mounted to each port. Loose connections can cause various stability and performance issues and may ultimately result in data loss. Step 3. Align the fan module and press down to secure. Step 4.
- Page 6 SSD7749E relies on two power sources to support eight SSDs; power supplied through the PCIe bus, and power from the system’s PSU via an external 6 pin PCIe power cable. If the external cable is not connected, there will be insufficient power to support all 8 SSDs;...
- Page 7 Resources Various manuals, guides, and FAQs are available for the SSD7749E RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. For Software Downloads, Documentation, and more information about this product, please visit the following website: https://www.highpoint-tech.com/nvme1/ssd7749e...
-
Page 8: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7749E or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
