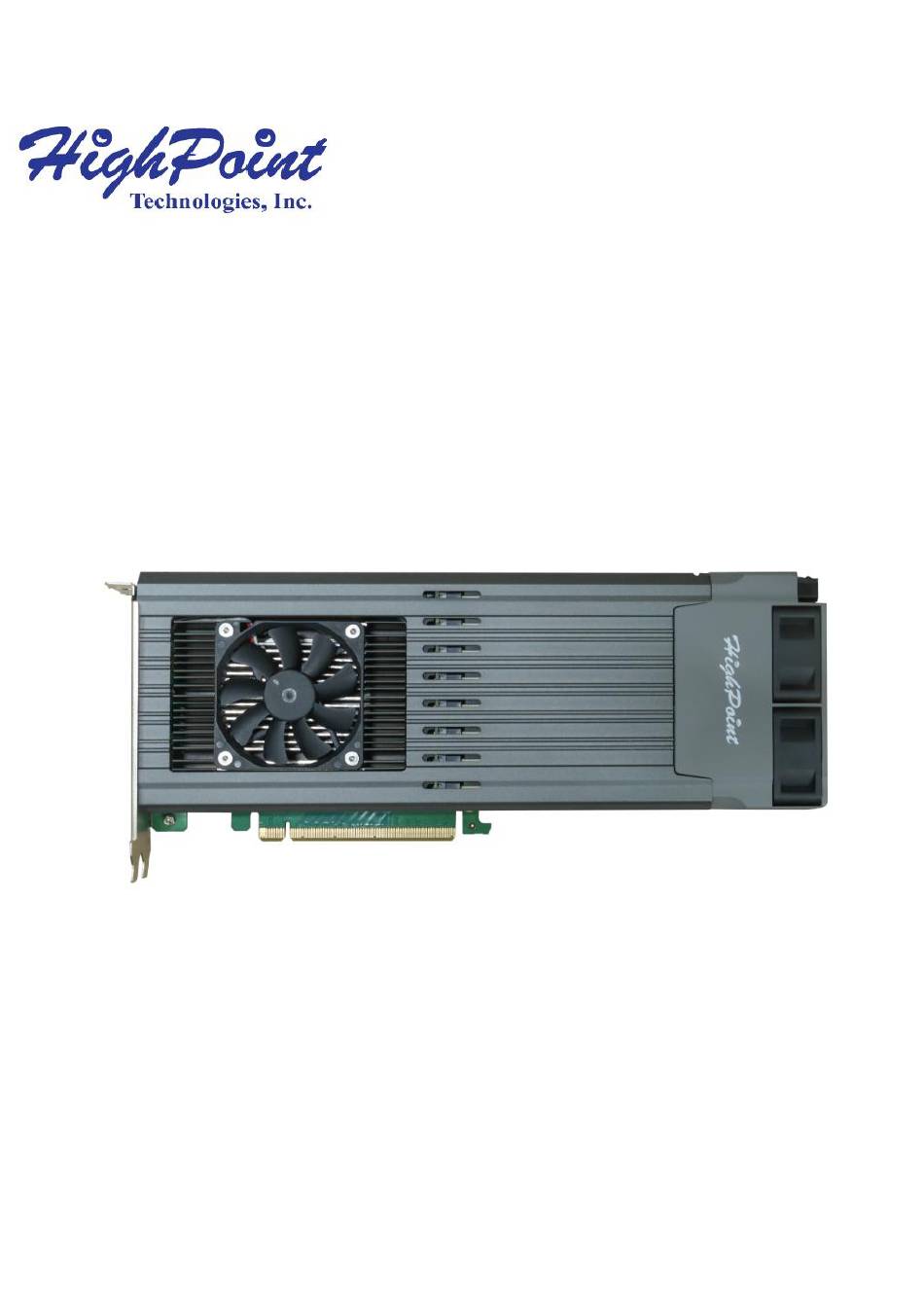

- Page 1 SSD7749M2 16x M.2 Port to PCIe 4.0 x16 NVMe RAID AIC Quick Installation Guide V1.00...
-
Page 2: System Requirements
Operating System Windows 11, 10 / Server 2022, 2019, 2016 / Microsoft Hyper-V RHEL/ Debian/ Ubuntu/ Fedora/ Proxmox/ Rocky Linux (Linux kernel 3.10 and later) Kit Content 1x SSD7749M2 1x Quick Installation Guide 16x M.2 rubbers ... - Page 3 SSD7749M2 Hardware Front View Double Width Full Height Ventilate Bracket Full-Length anodized aluminum heat sink External power port PCIe 4.0 x16 Host Interface Embedded Cooling Fan Low-Noise Cooling Fan...
- Page 4 NVMe SSD Tray - Front View Rubber M.2 Port NVMe SSD Tray - Rear View Rubber M.2 Port...
-
Page 5: Hardware Installation
Hardware Installation Step 1. Use a wired ESD wrist strap that is properly grounded. Step 2. Unpack and remove the SSD7749M2 and check it for damage. If it appears damaged, please get in touch with HighPoint Technical Support. Step 3. Apply pressure at the mark to release the lock, and turn it... - Page 6 Step 4. Gently remove the NVMe SSD Tray from the SSD7749M2. Step 5. Confirm the direction of the rubber (pointing to the right). Step 6. Gently insert the NVMe SSD into the M.2 port of the NVMe SSD Tray. Notes: Ensure the NVMe SSD contacts (“golden fingers”) are clean...
- Page 7 Step 7. Press the right side of the rubber to align it and insert it into the retention hole on the end of the NVMe SSD. Step 8. Rotate the direction of the rubber so that it points to the left to secure the NVMe SSD better.
- Page 8 Step 9. After installing all NVMe SSDs, carefully insert the NVMe SSD Trays into the slots. Port 1 Port 16 Note: Ensure the NVMe SSD Tray is carefully but securely mounted to each port. Loose connections can cause various stability and performance issues and may ultimately result in data loss.
- Page 9 Step 10. Align the fan module and press down to secure. Note: Ensure the fan module is aligned correctly with the AIC board (PCB). If the fan module is improperly installed, the fan will not sufficiently cool the NVMe SSDs and AIC componentry, which may damage the NVMe SSDs or AIC hardware, performance loss, unstable I/O, and data loss.
- Page 10 SSDs may drop offline or remain undetected, which could lead to data loss. SSD7749M2 relies on two power sources to support sixteen NVMe SSDs: power supplied through the PCIe bus and power from the system’s PSU via an external 6-pin PCIe power cable. If the external cable is not connected, there will be insufficient power to support all sixteen NVMe SSDs;...
- Page 11 Step 13. Insert the SSD7749M2 into the system’s open PCIe 3.0/ 4.0/ 5.0 x16 slot. Step 14. When finished, turn on the power to the system.
- Page 12 Resources Various manuals, guides, and FAQs are available for the SSD7749M2 NVMe RAID AIC. In addition, we recommend visiting the Software Downloads webpage for the latest drivers and RAID Management software. For Software Downloads, Documentation, and more information about this product, please visit the following website: https://www.highpoint-tech.com/nvme-individual/ssd7749m2...
-
Page 13: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7749M2 or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
