- Page 1 SSD7580A SSD7580A PCIe Gen4 x16 8-Port U.2 NVMe RAID Controller Quick Installation Guide V1.00...
-
Page 2: System Requirements
System Requirements PC Requirements • System with a free PCIe4.0 (or 3.0) x16 slot • Windows 10, Windows Server 2016 and Windows Server 2019 • Linux kernel 3.10 and later SSD7580A Kit Content • SSD7580A Controller Card • Quick Installation Guide SSD7580A Hardware Front View... -
Page 3: Hardware Installation

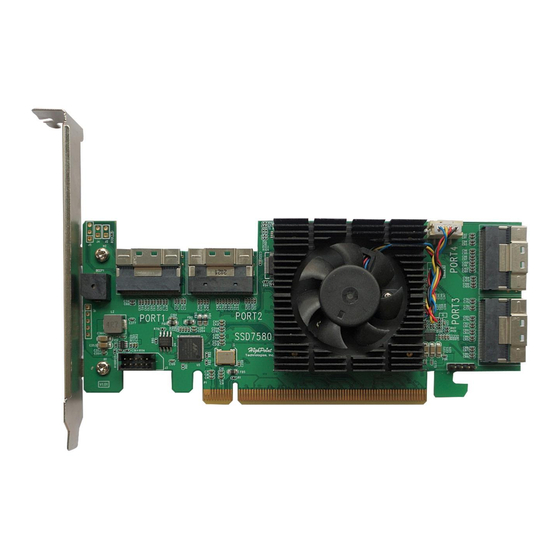

The SSD7580A provides 4 SFF-8654 to U.2 SFF-8639 connectors on the right side and top of the controller PCB. Each of these ports was designed for use with HighPoint TS8i-8639-060 NVMe cables that have 15-pin SATA power connectors. SFF-8654 ports... - Page 4 TS8i-8639-060 SFF-8654 NVMe cable SFF-8639 SATA-15pin Shown above is a SFF-8654 to U.2 SFF-8639 cable with a 15-pin SATA power connector. The SFF-8639 port should be connected to the NVMe SSD’s U.2 port. The 15 pin SATA power connector should be connected to the system’s power supply.
- Page 5 Insert the SSD7580A controller into one of the motherboard’s open PCI-E 4.0x16 slots.
- Page 6 Connect two pieces of NVMe with SFF-8639 port, and connect SFF-8654 port to SSD7580A. Connect the 15-pin SATA power connector to the system's power supply. SFF-8639 15-pin SATA power connector...
- Page 7 Connect the remaining NVMe SSD’s to the SSD7580A controller as described above. Once complete, Power on the system Make sure SSD’s are connected to the SSD7580A Note: before powering on the system...
- Page 8 RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. Software Download: SSD7580A Driver, WebGUI, Installation Guides: https://highpoint-tech.com/USA_new/series-ssd7580-download.htm Other Reference Information: Motherboard & NVMe SSD Compatibility List SSD7580A User Guides https://highpoint-tech.com/USA_new/series-ssd7580-resource.htm...
-
Page 9: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7580A, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/main.php HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
