- Page 1 SSD7749M2 NVMe RAID AIC User Guide SSD7749M2 NVMe RAID AIC User Guide V1.00 - July 15, 2024 Copyright 2024 HighPoint Technologies, Inc. All rights reserved HighPoint Technologies, Inc...
-
Page 2: Table Of Contents
SSD7749M2 NVMe RAID AIC User Guide Table of Contents 1. Overview ....................2 1.1. Key Features ....................2 2. SSD7749M2 Hardware Description ............ 3 2.1. SSD7749M2 Layout ..................3 2.2. PCIe Host Interface ..................5 2.3. Storage Interface ................... 5 2.4. Basic Specifications ..................5 3. -
Page 3: Overview
SSD7749M2 NVMe RAID AIC User Guide 1. Overview The SSD7749M2 is the latest member of our PCIe Gen4 NVMe RAID AIC product family. The SSD7749M2 M.2 NVMe AIC represents the next generation of compact RAID solutions and was designed for Industrial & Edge Server applications that demand a compact, easily integrated, ultra- high-density RAID storage solution with blistering PCIe Gen4 x16 performance and enterprise-class reliability and endurance. -
Page 4: Ssd7749M2 Hardware Description

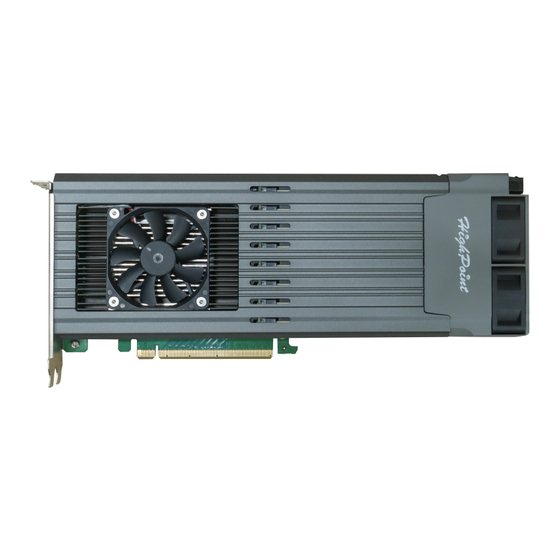

SSD7749M2 NVMe RAID AIC User Guide 2. SSD7749M2 Hardware Description 2.1. SSD7749M2 Layout The layout of the SSD7749M2 is presented in two parts. Front View ① ② ③ ④ ⑤ ⑥ NVMe SSD Tray View ⑪ ⑦ ⑧... - Page 5 Type Description Bracket Double Width Full Height Ventilate Bracket. ① The SSD7749M2 is secured to the chassis by the Full-height bracket. Embedded Cooling Fan The fan is used to dissipate heat from institutions prone to heat generation. ② ③ PCIe Host Interface The interface between the storage adapter and the host system.
-
Page 6: Pcie Host Interface
Supports up to sixteen NVMe devices (M.2 media) Data transfer at 4GB/s 2.4. Basic Specifications The following table describes the basic specifications of the SSD7749M2. Table 3: Basic Specifications of SSD7749M2 Model SSD7749M2 Form Factor Full-Height, Dual-Width Weight 3.24 lbs... -
Page 7: Ssd7749M2 Installation Instructions
3. SSD7749M2 Installation Instructions Use a wired ESD wrist strap that is properly grounded. Unpack and remove the SSD7749M2 and check it for damage. If it appears damaged, please contact HighPoint Technical Support. Apply pressure at the mark to release the lock, and turn it counter-clockwise. - Page 8 SSD7749M2 NVMe RAID AIC User Guide Rotate the rubber to secure the SSD. After installing all SSDs, carefully insert the NVMe SSD trays into the slots. Port 1 Port 16 Note: Ensure the NVMe SSD tray is carefully but securely mounted to each port. Loose connections can cause various stability and performance issues and may ultimately result in data loss.
- Page 9 Note: Ensure the aluminum cover is aligned correctly with the AIC board (PCB) and it makes complete contact with the thermal pad before refastening it to the SSD7749M2. If the cover is improperly installed, the fan and thermal pad will not sufficiently cool the NVMe SSDs and AIC componentry, which may damage the SSDs or AIC hardware, performance loss, unstable I/O, and data loss.
-
Page 10: Revision History
SSD7749M2 NVMe RAID AIC User Guide 4. Revision History Version 1.00, July 15, 2024 Initial version. HighPoint Technologies, Inc...
