Freestanding Dual Vertical

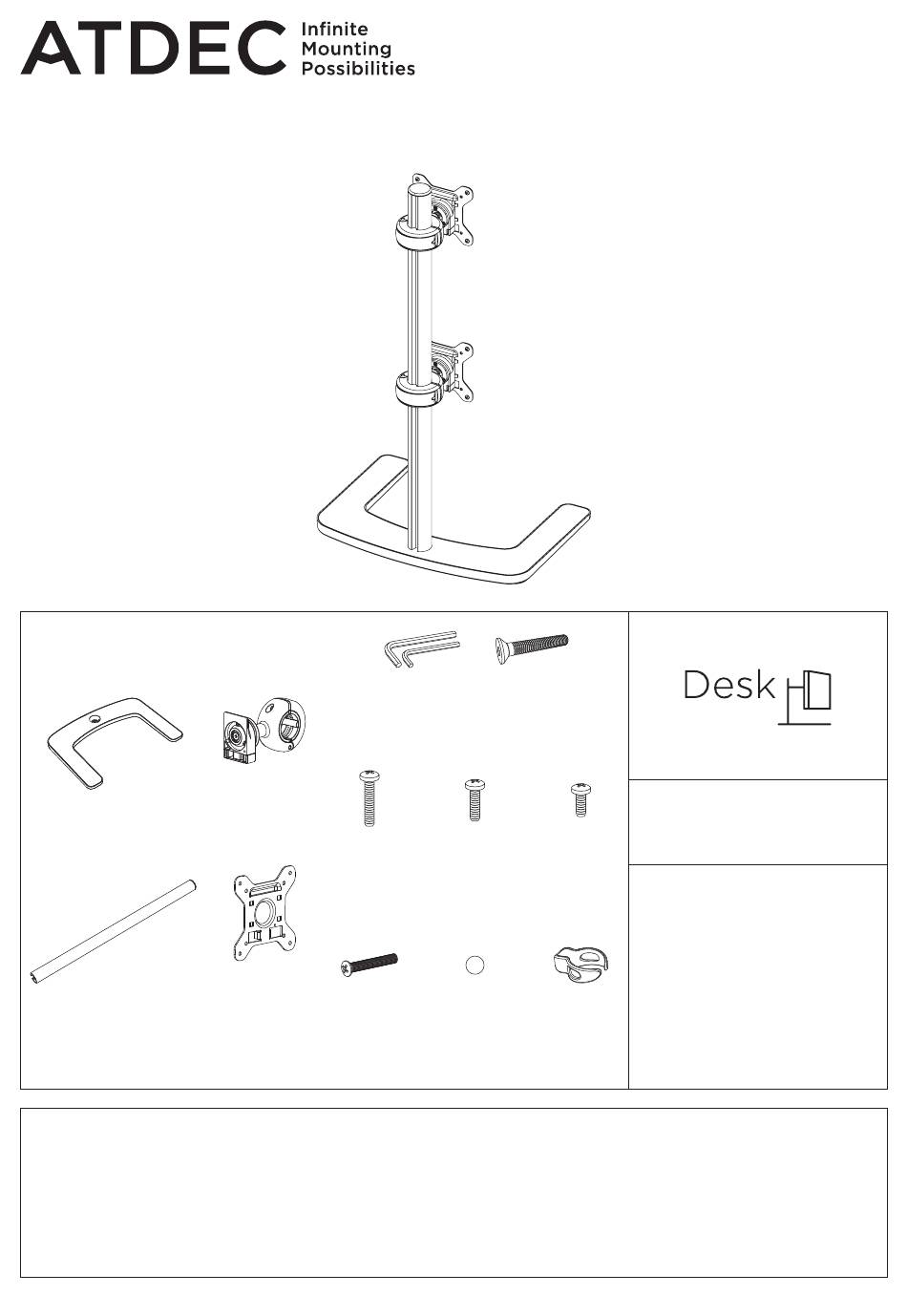

COMPONENT CHECKLIST
A
Base
(x1)
B
Upright
Pole
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Each VFS Display Head supports a maximum weight as per above weight range specification.
! Each 750mm (29.5") Upright Pole supports a maximum of two VFS Display Heads.
! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
Hex Key
(x1 each)
C
VFS Display
Head
(x2)
G
Mounting
Screw
M4x16mm
(x8)
D
J
VESA
(Optional)
Plate
Security
(x2)
Screw
(x2)
E
F
3/5mm
M8x50mm
Screw (x1)
H
Mounting
Mounting
Screw
Screw
M4x12mm
M4x10mm
(x8)
(x8)
K
Cable Ball
Cable Clip
(x4)
(x3)
Installation Guide
REQUIRED TOOLS
• Phillips Head Screwdriver
I
WEIGHT RANGE
Per Monitor
Flat Monitor
0 - 12kg (0 - 26.5lb)
Curved Monitor
L
0 - 9kg (0 - 20lb)
NOTE
• 120mm (4.75") max overall
monitor depth
VFS-DV
VFS-DV Page 1 of 4
Advertisement
Related Manuals for Atdec VFS-DV
Summary of Contents for Atdec VFS-DV
- Page 1 ! Each 750mm (29.5”) Upright Pole supports a maximum of two VFS Display Heads. ! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm. ! The manufacturer accepts no responsibility for incorrect installation. ! This product is not suitable for outdoor use. ! Do not use this product for mobile applications. VFS-DV Page 1 of 4...
- Page 2 Flush Spacer • If spacers are needed, use the shortest possible combination between the display bracket and the display. Too long Too short VFS-DV Page 2 of 4...
- Page 3 NOTE: Ensure enough slack is left in cables to allow for movement. When the slot in each pole cannot be used, use the supplied Cable Clips to secure the cables. Cable Cable Clips Balls (x2) (x2) VFS-DV Page 3 of 4...
- Page 4 E - 3mm Hex Key No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20231127 VFS-DV Page 4 of 4...
