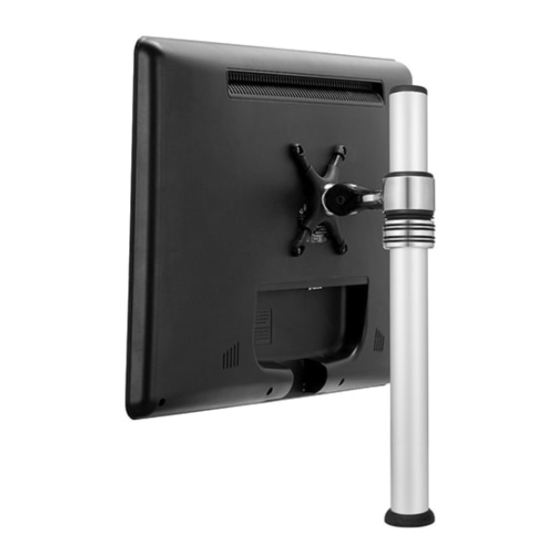

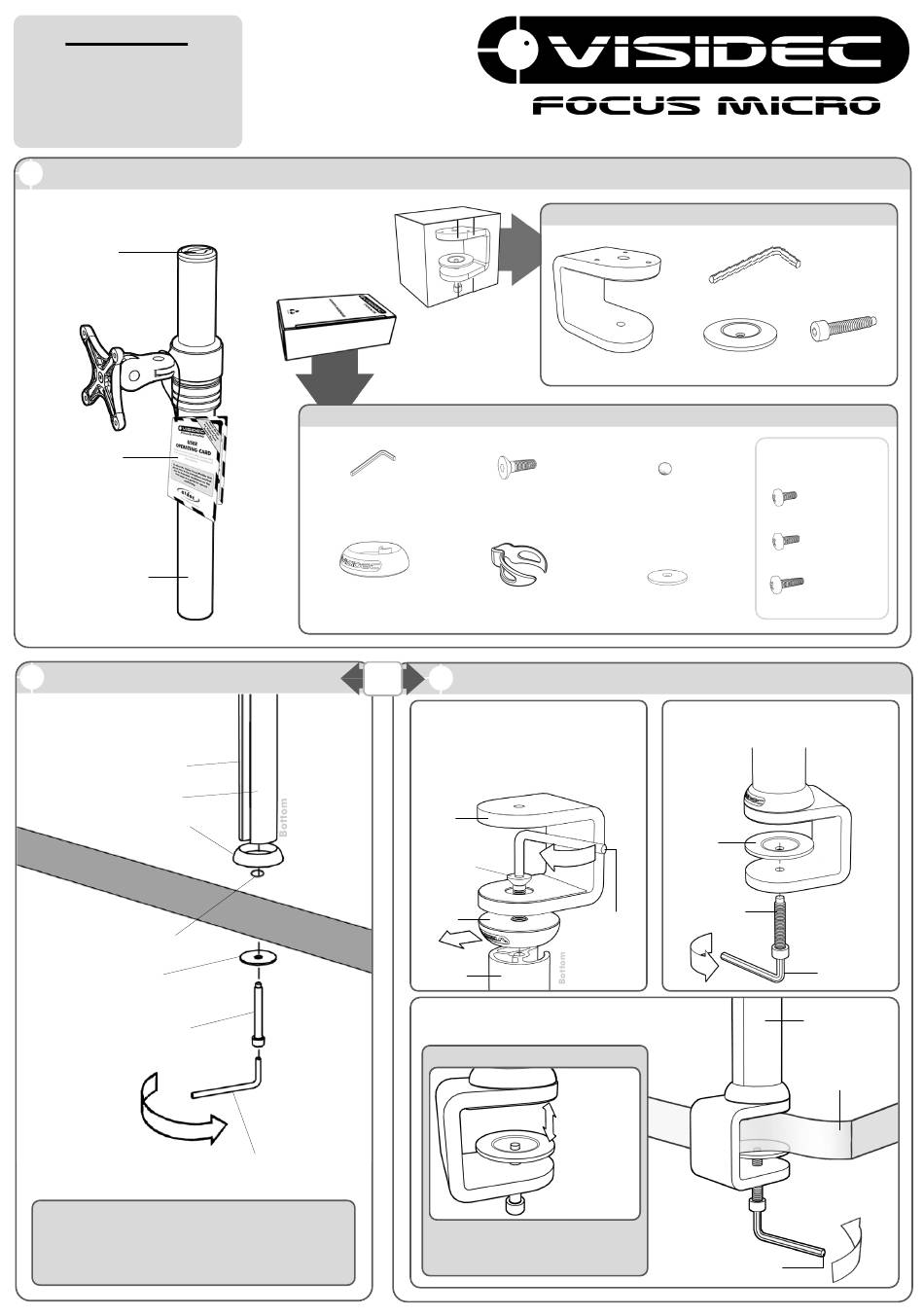

Atdec Visidec Focus Micro Installation Instructions

IMPORTANT:
The "User Operating
Card" must be left
with Visidec Focus
Micro once installed
A Component Checklist
5mm Allen
Key
User
Operating
Card
(See note at top
of page)
Pole Assembly
Bolt Through
B1
Drill a 9mm (³/ ") hole in the work
8
surface at the desired position and
assemble as shown below.
Slot
Pole Assembly
Bolt Through Base
9mm (³/ ") Hole
8
Steel Washer
M8 Desk Clamp Screw
(found in the Desk
Clamp Box)
Tighten
Firmly
NOTE:
Ensure the slot in the Pole Assembly faces away from
the user.
It is recommended that the Pole Assembly be mounted
towards the rear edge of the work surface

Installation Instructions

- Check you have received all parts against the component checklist prior to installing
Top
Bits Box
2mm Allen
Key
Bolt Through
Base
Bottom
OR
5mm Allen Key
Desk Clamp Box
Desk Clamp Bracket
M8x30mm
Screw
Cable Clip
Desk Clamp
B2
Step 1: Attach the Desk Clamp Bracket
to the bottom of the Pole Assembly using
the M8x30mm Screw. Tighten firmly
using the 5mm Allen Key. Ensure the
Visidec logo is facing the front as shown.
Desk
Clamp
Bracket
M8x30mm
Screw
Bolt Thru
Base
Allen Key
Pole
Assembly
Step 3: Adjust the height of the Pressure Plate to suit the
work surface and tighten firmly in the desired location.
ADJUSTMENT RANGE
Suits 12mm
to 38mm
thick work
surfaces
NOTE: It is recommended that the Pole
Assembly be clamped to the rear or side
edge of the work surface
Pressure Plate
Display Mounting
Cable Balls
(x2)
Steel Washer
Step 2: Install the M8 Desk Clamp
Screw and Pressure Plate as shown.
Pressure
Plate
M8 Desk
Clamp Screw
5mm
(½")
(1½")
5mm Allen Key
Tighten Firmly
5mm Allen
Key
M8 Desk
Clamp Screw
Screws
M4x10mm
(x4)
M4x12mm
(x4)
M4x16mm
(x4)
5mm
Allen Key
Pole
Assembly
Work Surface
