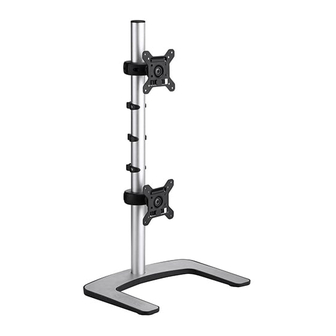

Freestanding Dual Vertical

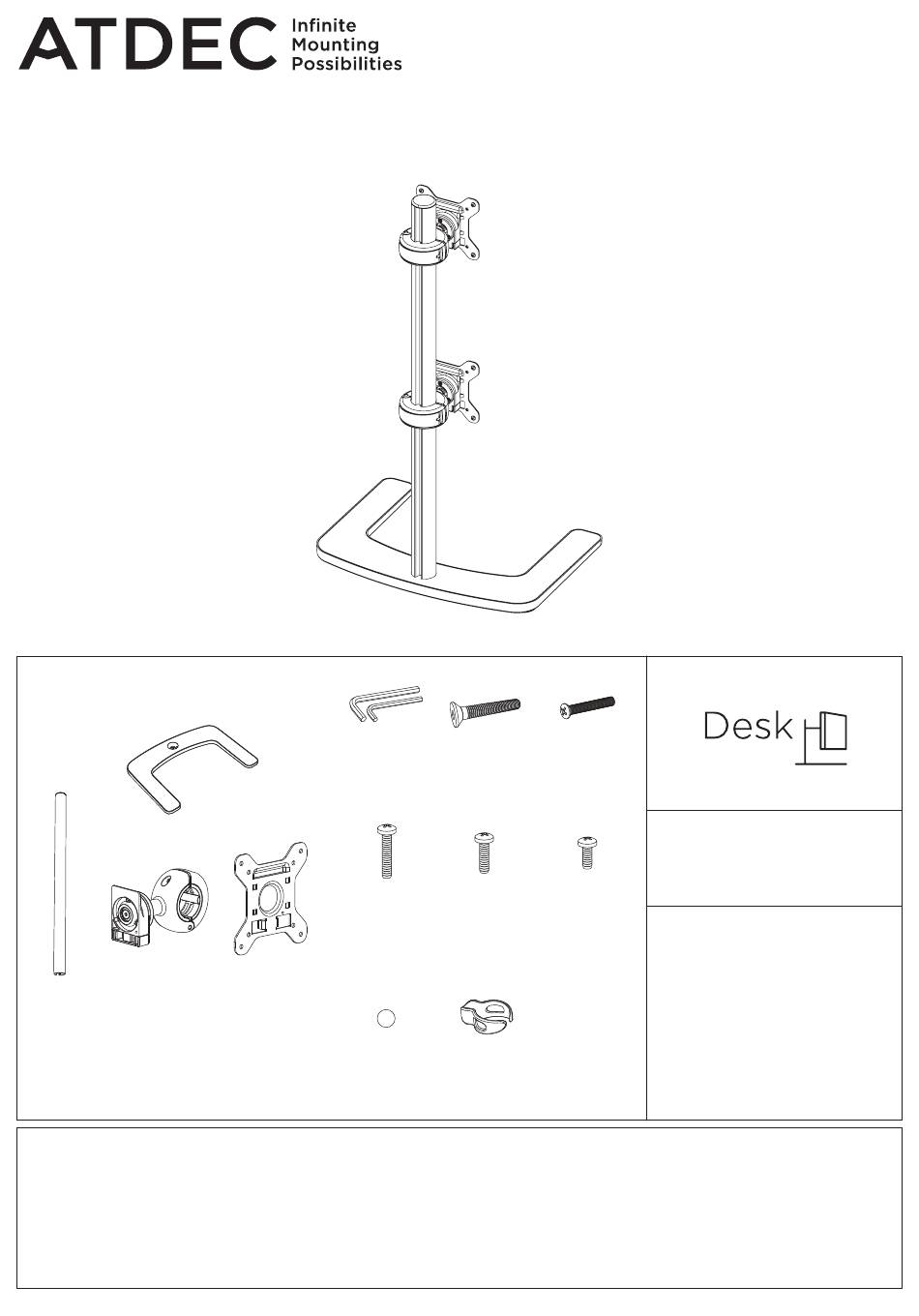

COMPONENT CHECKLIST
B
D
Upright
VFS Display
Pole
Head
(x1)
(x2)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Each VFS Display Head supports a maximum weight as per above weight range specification.
! Each 750mm (29.5") Upright Pole supports a maximum of two VFS Display Heads.
! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.
! The manufacturer accepts no responsibility for incorrect installation.
! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset
VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the
stated range. Please contact Atdec if you would like further information.
3/5mm
Allen Key
A
(x1 each)
Base
(x1)
Mounting
Screw
M4x16mm
(x8)
E
VESA
Plate
(x2)
Cable Ball
F
G
M8x50mm
Screw (x1)
I
J
Mounting
Screw
M4x12mm
(x8)
M
N
Cable Clip
(x4)
(x3)
Installation Guide
L
(Optional)
Security
Screw
(x2)
REQUIRED TOOLS
• Phillips Head Screwdriver
K
Mounting
WEIGHT RANGE
Screw
Per Monitor
M4x10mm
(x8)
Flat Monitor
0 - 12kg (0 - 26.5lb)
Curved Monitor
0 - 9kg (0 - 20lb)
NOTE
120mm (4.75") max
overall monitor depth
VFS-DV
VFS-DV Page 1 of 4
