Freestanding Dual Vertical
COMPONENT CHECKLIST
B
D
Upright
Quickshift
Pole
Donut
(x1)
(x2)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Each Quickshift Donut supports a maximum weight of 12kg (26.5lbs)
! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.
! The manufacturer accepts no responsibility for incorrect installation.
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can
exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact
Atdec if you would like further information.
3/5mm
Allen Key
A
(x1 each)
Base
(x1)
Mounting
Screw
M4x16mm
(x8)
E
VESA
Plate
(x2)
Cable Ball
F
G
M8x50mm
Screw (x1)
I
J
Mounting
Screw
M4x12mm
(x8)
M
N
Cable Clip
(x4)
(x3)
Installation Guide
L
(Optional)
Security
Screw
(x2)
REQUIRED TOOLS
K
• Phillips Head Screwdriver
Mounting
Screw
M4x10mm
(x8)
WEIGHT RANGE
Per Monitor
Flat Monitor
0 - 12kg
0 - 26.5lbs

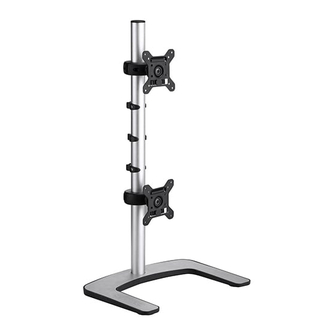

VFS-DV
Curved Monitor
0 - 12kg
0 - 26.5lbs
VFS-DV Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atdec VFS-DV
Summary of Contents for Atdec VFS-DV
- Page 1 ! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information. VFS-DV Page 1 of 4...
- Page 2 3.1 Check VESA mounting compatibility 3.2 Screw VESA Plate to back of monitor using provided screws. 100mm Top of monitor 75mm NOTE: Be sure to select a screw length that suits the monitor. 100mm 75mm Too long Too short VFS-DV Page 2 of 4...
- Page 3 5.2 Slide the Quickshift Donut to desired position. OPEN 5.3 If necessary, adjust the tension between the Donut 5.4 Close the lever to lock the Quickshift Donut in place. and the Pole using the 5mm Allen Key supplied. TIGHTEN CLOSE LOOSEN VFS-DV Page 3 of 4...
- Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20200703...
