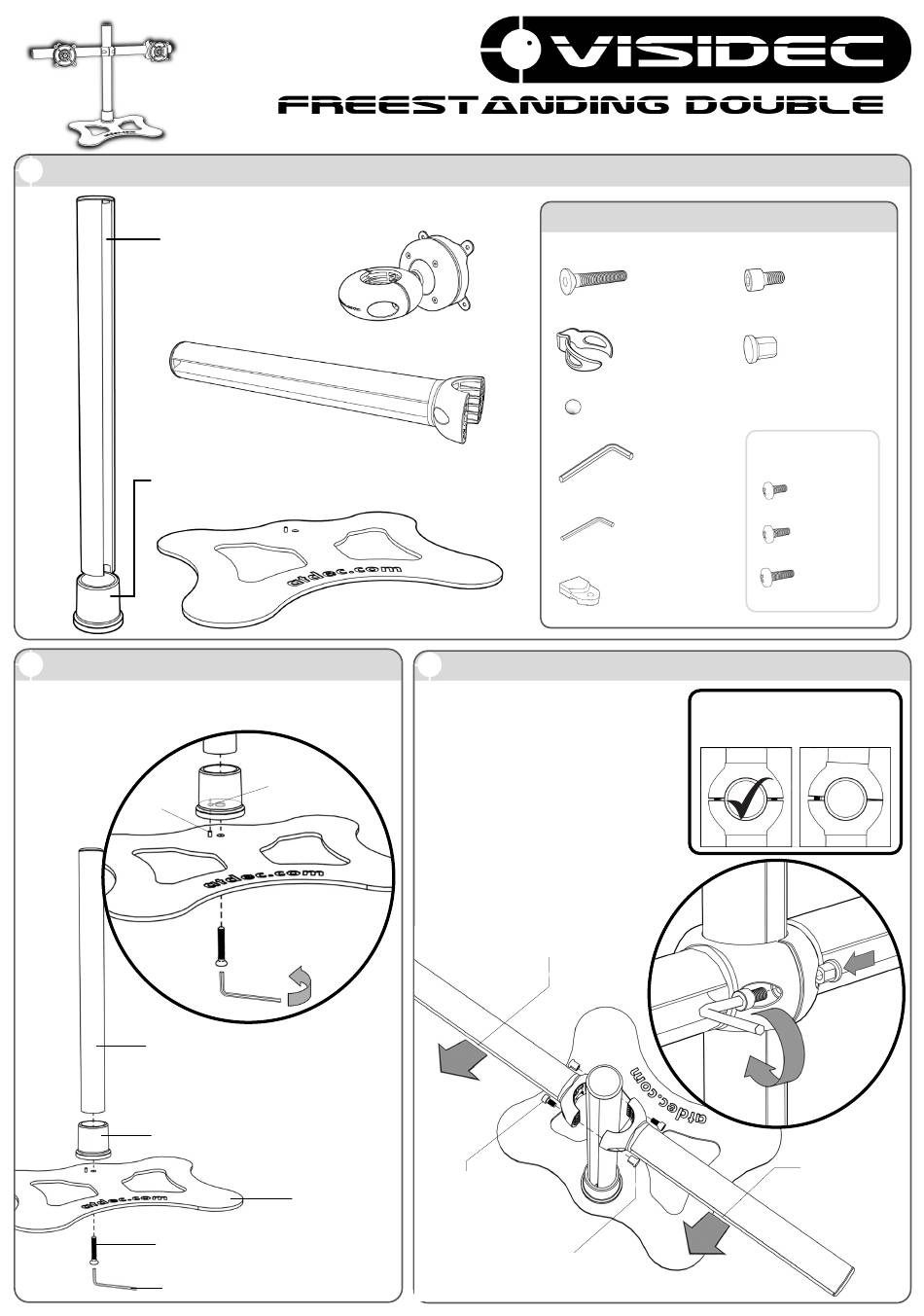

Atdec Visidec Freestanding Double Installation Instructions

A Component Checklist

Upright Pole
Pole Collar

B Attach Upright Pole to Base

Attach the Upright Pole to the Base Plate as shown
below. Ensure the Pin in the Base Plate lines up
with the hole in the
Pole Collar.
Pin
Upright Pole
Pole Collar
M8x50mm Screw
5mm Allen Key
Installation Instructions
- Check you have received all parts against the component checklist prior to installing
Donut
Clamps (x2)
Horizontal Support (x2)
Base Plate
Locating
Hole
TIGHTEN
FIRMLY
Base
Plate
Bits Bag
Cable Balls (x6)
C Attach Horizontal Support's
Position the Horizontal Supports at
the required height on the Upright
Pole. Ensure the Slots in all the Poles
are facing backwards.
Tighten supports using the
M6x12mm Cap Screws, M6 Donut
Inter-Screws and 5mm Allen Key
supplied. Take care to tighten clamp
firmly and evenly!
Slot in Poles to
face back
M6x12mm
Cap Screw
(x2)
M6 Donut
Inter-Screw (x2)
M6x12mm Cap
M8x50mm Screw
Cable Clip (x4)
Display Mounting
5mm Allen
Key
2.5mm Allen
Key
Extension Clips (x8)
Tighten "Donut" Hex screws firmly
and evenly.
DO NOT OVER TIGHTEN!
Screw (x2)
M6 Donut
Inter-Screw
(x2)
Screws
M4x10mm
(x8)
M4x12mm
(x8)
M4x16mm
(x8)
x
HOLD IN
PLACE
TIGHTEN
FIRMLY
Slot in Poles to
face back
