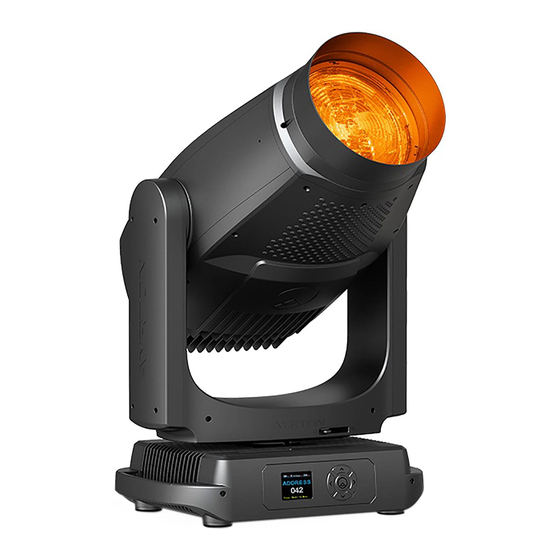

Digital Lighting
User Manual
DOMINO WASH: (EN - version NR)
www.ayrton.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the domino WASH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ayrton domino WASH

Summary of Contents for Ayrton domino WASH

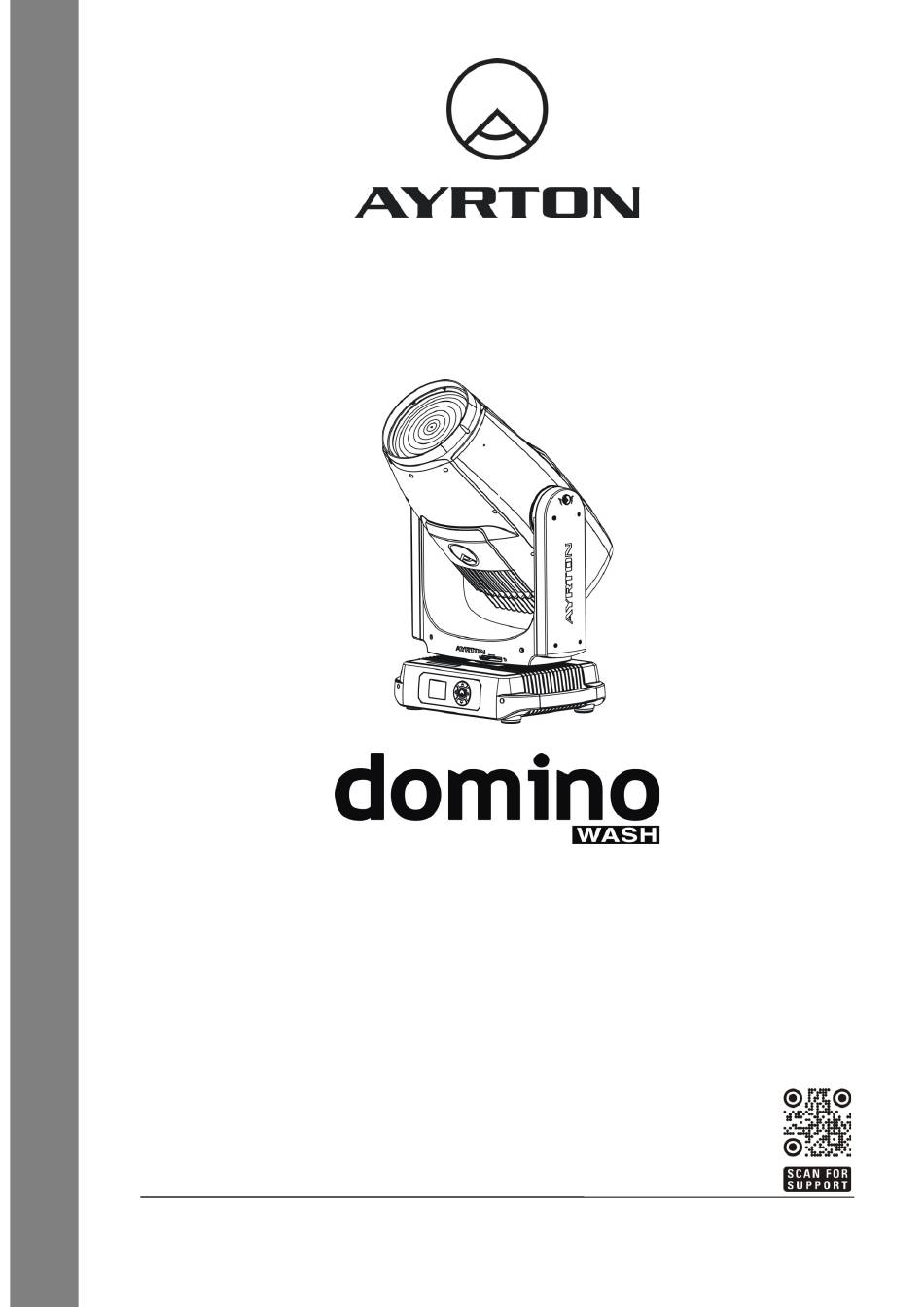

  • Page 1 Digital Lighting User Manual DOMINO WASH: (EN - version NR) www.ayrton.eu...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2. FEATURES 3. FIXTURE OVERVIEW 4. DIMENSIONAL DRAWINGS 5. INSTALLATION INSTRUCTIONS 6. DMX-512 CONTROL CONNECTION 7. DMX-512 CONNECTION WITH DMX TERMINATOR 8. DEVICE DMX START ADDRESS SELECTION 9. OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS SYSTEM 10.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. IMPORTANT SAFETY WARNING This device has left the factory in perfect condition.In order to maintain this condition and to ensure safe operation，it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. In order to install，operate，and maintain the lighting fixture safely and correctly we suggest that the installation and operation be carried out by qualified technicians and these instructions be carefully followed.
  • Page 4 • If the device has been exposed to temperature changes due to environmental conditions， do not power on immediately.The resulting condensation could damage the device.Leave the device powered off until it has reached room temperature. • This device falls under protection-class I.Therefore，it is essential that the device be earthed. •...

  • Page 5: Features

    2. FEATURES POWER SUPPLY • AC120-240V~，50/60Hz • Power Consumption：1500W LIGHT SOURCE • LED：White LED1050W，8000±400K Color Temperature @ S White LED1050W，6800±400K Color Temperature @ ST White LED1050W，6000±350K Color Temperature @ • Extremely long Life：>20,000H MOVEMENT • Pan movement：540º /630º Optional (16 bit) •...
  • Page 6 • Advanced RDM function WEIGHT • Net weight：52 kg...

  • Page 7: Fixture Overview

    FIXTURE OVERVIEW 1) Lenses Assembly 2) Tilt Lock 3) Display 4) Left-button 5) Center-button 6) Down-button 7) Right-button 8) Up-button 9) Pan Lock 10) Handle 11) Power In 12) Fuse 13) RJ45 In 14) RJ45 Out 15) DMX In 16) DMX Out...

  • Page 8: Dimensional Drawings

    3. DIMENSIONAL DRAWINGS 4.1. Fixture Dimension...
  • Page 9 4.2. Color Filter Dimension 1. CTB1/4 (6.03.05.03.2864) 2. Congo Blue (6.03.05.03.2855) 3. Green (6.03.05.03.2856) 4. Orange (6.03.05.03.2857) 5. Blue (6.03.05.03.2858) 6. Red (6.03.05.03.2859)
  • Page 10 4.3. Rotating Gobo Filter Dimension Rotating Gobo ： 1. 314 – Dot Line 4 (6.03.03.01.2290) 2. 326 – Dot Triangle 3 (6.03.03. 01. 2291) 3. 332 – Square Beam 4 (6.03.03. 01. 2292) 4. 342 – Five Spokes (6.03.03. 01. 2293) 5.
  • Page 11 4.4. Animation Filter Dimension...

  • Page 12: Installation Instructions

    4. INSTALLATION INSTRUCTIONS 5.1. Rigging the device CAUTION! PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURING INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. • The applicable temperature for the lighting is between -20°C to 45°C. Do not use the lighting under or above this temperature range.
  • Page 13 5.2. Rigging using the omega brackets • Fix the clamp to the bracket by tightening the M12 nut and bolt to the bracket through the Ф13 hole in the middle of the bracket. • Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.
  • Page 14 • Be sure this fixture is kept at least 0.1 m away from any flammable materials (decoration etc.). • Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Important ：...

  • Page 15: Dmx-512 Control Connection

    5. DMX-512 CONTROL CONNECTION Connect the provided male side of the XLR cable to the female XLR output of your controller and the female side of the XLR cable to the male XLR input of the device.You can connect multiple devices together in a serial fashion.The cable needed should be two core，screened cable with XLR input and output connectors.Please refer to the diagram below.

  • Page 16: Device Dmx Start Address Selection

    7. DEVICE DMX START ADDRESS SELECTION All fixtures should be given a DMX starting address when using a DMX signal， so that the correct fixture responds to the correct control signals.This digital starting address is the channel number from which the fixture starts to“listen”to the digital control information sent out from the DMX controller.The allocation of this starting address is achieved by setting the correct address number on the display located on the base of the device.

  • Page 17: Display

    In this status，wireless system is not activated，so the fixture can not log in the transmitter. REST：(reset WDMX memory) Can remove the fixture from the connection with the transmitter，the fixture become free and ready to log in any transmitter. 9.4 Setup the wireless system ： 1) Connect the transmitter with the DMX controller.
  • Page 18 Press for 2 seconds in order to exit menu, double click for confirm.After accessing the edit mode，the unit will automatically exit to the main menu after 15 seconds from the last button press. When the unit is powered on，if no data signal is connected after 1 minute，then the display will switch off automatically.
  • Page 19 Shutoff Time 02~60m 05m Display shutoff time Flip Display ON/OFF Reverse 180 degree Disp.Setting Key Lock ON/OFF Key Lock DispFlash ON/OFF DispFlash WDMX WDMX Signal Select Art—Net Art-Net sACN sACN Celsius Temperature switch Temp. C/F between ℃/℉ Fahrenheit Initial Pos. PAN =XXX Initial effect position Activate WDMX...
  • Page 20 Current Time XXXX(Hours) Ttl Life Hrs XXXX(Hours) Last Run Hrs XXXX(Hours) Time Info. LED Hours XXXX(Hours) Timer PIN Password=XXX Clr Last Run ON/OFF Temp. Info Head Temp. XXX℃/℉ Humidity Humidity Fan Info. xxxxRPM Fan information Software Ver V1.0…… Software version Network IP,Mask,Mac Network...
  • Page 21 10.1. Address 10.1.1. Set DMX Address With this function，you can adjust the desired DMX-address via the Display. 1. Double click center button to access main menu. 2. Tap the <Up/Down> button until “Address”is displayed. 3. Double click center button，the display will show “Set DMX Address”. 4.
  • Page 22 2. Tap the <Up/Down> button until “Options”is displayed. 3. Double click center button to access “Options”，Tap the <Right/Left> button to select “Status”. 4. Double click center button to access“Status”menu， Tap the <Up/Down> button to select “Sun Protection”. 5. Double click center button to access “Sun Protection”， The display will show “ON”， Tap the <Right/Left>...
  • Page 23 3. Double click center button to access“Options”，Tap the <Right/Left> button to select “Status”. 4. Double click center button to access “Status”menu，Tap the <Right/Left> button to select “Feedback”. 5. Double click center button to access “Feedback”，The display will show “ON”，Tap the <Right/Left>...
  • Page 24 “Reset Mode”. 5. Double click center button to access “Reset Mode”，The display will show “Fast”，Tap the <Right/Left> button to select“All Rot Gobos”. 6. Double click the center button to confirm or long press the center button to return to the main menu.
  • Page 25 6. Double click the center button to confirm or long press the center button to return to the main menu. Hibernation ： Standby mode The device and step motors will be power off if the fixture stay without DMX signal for 15 mins (Factory default).
  • Page 26 5. Double click center button to access “Set Mask IP” ， The display will show “ ”. 6. Double click the center button to confirm or long press the center button to return to the main menu. DHCP 1. Double click center button to access main menu. 2.
  • Page 27 6． Double click the center button to confirm or long press the center button to return to the main menu. Constant Fans 1． Double click center button to access main menu. 2． Tap the <Up/Down> button until “Options” is displayed. 3．...
  • Page 28 5． Double click center button to access “Key Lock”，The display will show“OFF”，Tap the <Right/Left> button to select“ON”. 6． Double click the center button to confirm or long press the center button to return to the main menu. DispFlash With this function activated, the display will flash when no signal is detected. 1．...
  • Page 29 function“rest”，you can log out the projector from the wireless sender. 1. Double click center button to access main menu. 2. Tap the <Up/Down> button until “Options” is displayed. 3. Double click center button to access “Options”，Tap the <Right/Left> button to select “Wireless DMX”.
  • Page 30 1. Double click center button to access main menu. 2. Tap the <Up/Down> button until “Options” is displayed. 3. Double click center button to access“Options”，Tap the <Right/Left> button to select “Frost (Progressive)”. 4. Double click center button to access “Frost (Progressive)”，The display will show “ON”， Tap the <Right/Left>...
  • Page 31 2． Tap the <Up/Down> button until “Options” is displayed. 3． Double click center button to access “Options”，Tap the <Right/Left> button to select “Trigger”. 4． Double click center button to access “Trigger” menu，Tap the <Right/Left> button to select “Auto Program”. 5． Double click center button to access “Auto Program”，The display will show “Master”，“Alone”.
  • Page 32 button to select “Fans Speed”. 5． Double click center button to access “Fans Speed”，The display will show “Auto”. Tap the <Right/Left> button to select “Stage”，“Silence”，“Super Silence”. 6． Double click the center button to confirm or long press the center button to return to the main menu.
  • Page 33 1. Double click center button to access main menu. 2. Tap the <Up/Down> button until “Info” is displayed. 3. Double click center button to access “Info”，Tap the <Right/Left> button to select “Time Info.”. 4. Double click center button to access “Time Info.” tap the <Right/Left> button to select “Last Run Hrs”.
  • Page 34 With this function you can display the temperature on the display board of the base (near CMY-filter) in Celsius. 1. Double click center button to access main menu. 2. Tap the <Up/Down> button until “Info” is displayed. 3. Double click center button to access “Info”，Tap the <Right/Left> button to select “Temp Info”.
  • Page 35 “Error Info”. 4. Double click center button to access “Error Info”，The display will show“Error Record 1” ，Tap the <Right/Left> button to select “..”. 5. Double click the center button to confirm or long press the center button to return to the main menu.
  • Page 36 5． Double click the center button to confirm or long press the center button to return to the main menu. 10.5.5. Gobo Replace 1． Double click center button to access main menu. 2． Tap the <Up/Down> button until “Test” is displayed. 3．...

  • Page 38: Dmx Protocol

    11. DMX PROTOCOL DMX channel´s functions and their values (61DMX channels): Mode/Channel Value Function PAN Movement 8bit : 0-255 Pan Movement Pan Fine 16bit 0-255 Fine control of Pan movement TILT Movement 8bit : 0-255 Tilt Movement Tilt Fine 16bit 0-255 Fine control of Tilt movement Speed Pan/Tilt movement:...
  • Page 39 51-100 101-150 7.5m 151-200 201-255 AutoFocus Fine: 0-255 Continuous adjustment Fine Color Wheel: Open / white Color 1 8-11 Color 2 12-15 Color 3 16-19 Color 4 20-23 Color 5 24-27 Color 6 28-127 Color indexing 128-189 Backwards rainbow effect from fast to slow 190-193 No rotation 194-255...
  • Page 40 CTP Color : 0-255 CTP (0-white, 255-100% CTO) CTP Color Fine : 0-255 CTP Fine Reserved Reserved Reserved Reserved Rotating gobos, cont. rotation : Open 10-19 Rot. gobo 1 20-29 Rot. gobo 2 30-39 Rot. gobo 3 40-49 Rot. gobo 4 50-59 Rot.
  • Page 41 0-191 Max. diameter to Min.diameter 192-223 Pulse closing fast to slow 224-255 Pulse opening slow to fast Iris Fine: 0-255 Iris Fine Prism 1 : 0-127 Open 128-255 Prism Rotating prism index, rotating prism rotation 1 0-127 Prism indexing 128-189 Forwards prism rotation from fast to slow 190-193 No rotation...
  • Page 42 0-255 Open to Close Fine Blade 4A : 0-255 Open to Close Blade 4A Fine : 0-255 Open to Close Fine Blade 4B : 0-255 Open to Close Blade 4B Fine : 0-255 Open to Close Fine All Blade Rotation : 0-255 All Blade Rotation All Blade Rotation Fine :...
  • Page 43 Reset P/T Fade On 97-99 Other motor reset 100-102 Frost Progressive Off 103-105 Frost Progressive On 106-108 CMY speed Fast 109-111 CMY speed Medium 112-114 CMY speed Slow 115-117 Silence Movements Off 118-120 Silence Movements On 121-123 Prerig INIT Off 124-126 Prerig INIT On 127-129...

  • Page 44: Error Messages

    12. ERROR MESSAGES When you turn on the device, it will first perform a reset.The display may show“Err channel is XX”should there be problems with one or more functions.“XX” stands for channel 1，2，3，4， 5，6 etc whose sensor has encountered a problem.For example，when the display shows“Err channel is Pan movement”，...
  • Page 45 Yellow Color wheel Er (Yellow Color wheel- error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB). The CMY - movement is not located in the default position after the reset.
  • Page 46 Blade 1 wheel Er (Blade 1 wheel - error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB). The Blade 1 - movement is not located in the default position after the reset.

  • Page 47: Cleaning And Maintenance

    13. CLEANING AND MAINTENANCE CAUTION! DISCONNECT FROM MAINS BEFORE STARTING MAINTENANCE OPERATION. CAUTION! ALWAYS RUN AN IP TEST USING THE AYRTON IP TEST KIT FOLLOWING ANY MAINTENANCE OPERATION! FAILURE TO COMPLY WITH THIS CLAUSE WILL VOID THE WARRANTY! THE OPERATOR MUST FOLLOW STRICTLY THE...
  • Page 48 Further instructions depending on the installation location and usage have to be adhered to by a qualified installer and any safety concerns have to be removed. In order to ensure the device remains in good condition and does not fail prematurely，we suggest regular maintenance.
  • Page 49 Digital Lighting 2 Rue de Vitruve - 91140 - Villebon-sur-Yvette - France...
